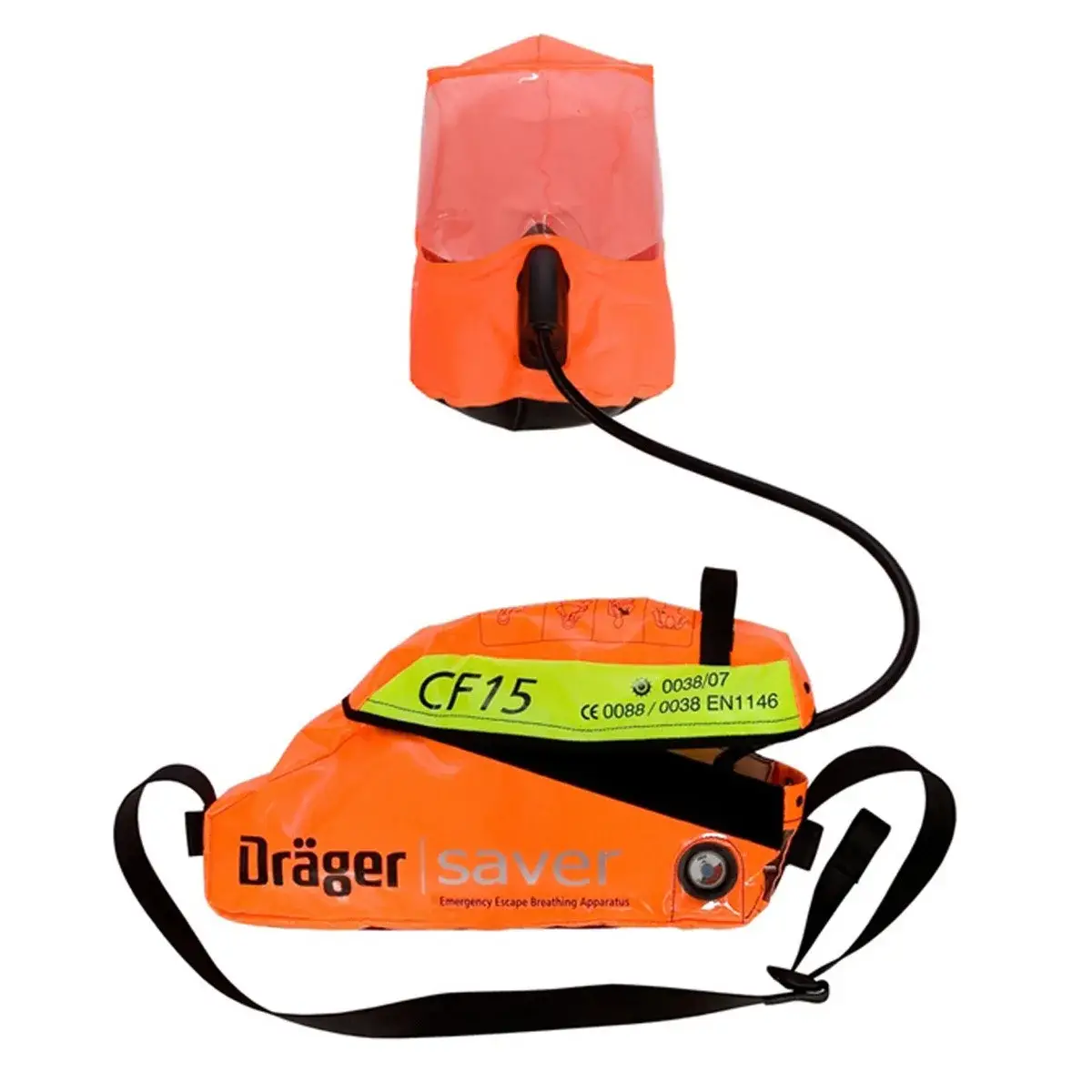

Draeger CF15

The Draeger Saver CF15 is a constant-flow emergency escape breathing apparatus providing 15 minutes of life-sustaining air. It features automatic activation upon opening and a universal hood that fits over glasses and facial hair. Compact and high-visibility, it is essential for safe escape from hazardous UK confined space environments.

Extended 15-Minute Duration: Equipped with a 3-litre, 200 bar steel cylinder for additional time during difficult or high-rise evacuations.
Automatic Airflow: The “pull-to-activate” system initiates air delivery instantly upon opening, minimizing delay in high-stress situations.
Low Maintenance: Requires no mandatory routine internal servicing for 10 years, with a simple external window for monthly pressure checks.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

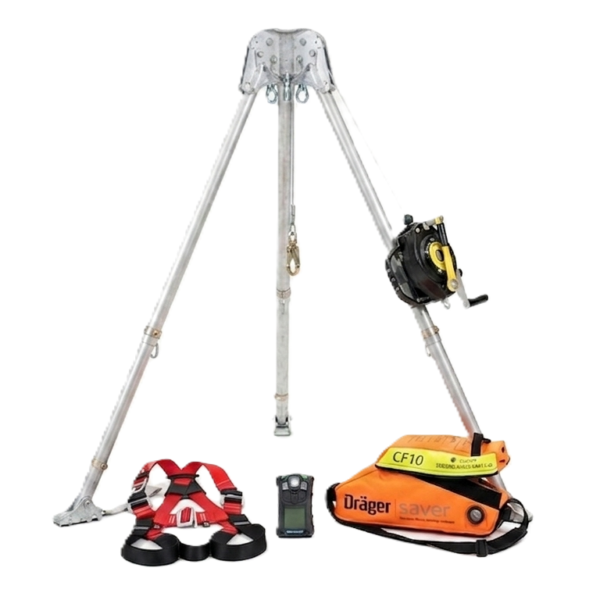

Confined Space Safety Kit A

Draeger CF10

FAQs

What is the primary difference between the CF10 and the CF15?

The main difference is the duration of breathable air; the CF10 provides 10 minutes while the CF15 provides 15 minutes. To achieve this, the CF15 uses a larger 3-litre cylinder, making it critical for workers in deep shafts, long tunnels, or complex utility networks where more time is needed to reach fresh air.

Why is the CF15 essential for certain UK confined space entries?

Under Confined Spaces Regulations 1997, emergency plans must account for the travel time from the furthest point of work to safety. In large civil engineering projects, a 10-minute set may not provide a sufficient safety margin, whereas the CF15 offers a higher buffer if an escape is slowed by obstacles or ladders.

Does the CF15 hood offer the same visibility as the CF10?

Yes, the hood features a wide-angle visor for maximum peripheral vision, which is vital when navigating dark or cramped environments. The bright orange material also ensures the wearer is highly visible, making it easier for rescue teams to spot them in low-light conditions.

What is the purpose of the anti-static bag on the CF15?

The CF15 can be supplied in a specialised orange anti-static bag, which is a mandatory requirement for ATEX zones. This material prevents static discharge, ensuring the escape set does not become an ignition source in volatile atmospheres where explosive gases like methane may be present.

How does the “Constant Flow” system work in an emergency?

The CF15 uses a simple “on/off” reducer that delivers air at a steady, continuous rate once the bag is opened and the pin is pulled. This eliminates the need for a complicated lung-governed demand valve, making it the easiest type of breathing apparatus for a stressed person to use correctly.

Can I check the cylinder pressure without taking the unit out of the bag?

Yes, a transparent viewing window on the side of the bag allows site supervisors to perform a quick visual inspection of the pressure gauge. If the needle is in the green, the unit is ready for deployment, allowing for rapid checks in site offices without breaking the security seal.

What happens if the air supply runs low during an escape?

As the cylinder nears exhaustion, an integrated warning whistle sounds to provide a clear, high-pitched audible alert. This signals to the wearer that they have very little time left to reach safety, removing ambiguity and keeping the worker focused on exiting the hazardous area immediately.

Is the CF15 compatible with workers who have facial hair?

Yes, one of the key benefits of the CF series is the neck seal hood design. Unlike face-mask style escape sets, the CF15 hood does not require a face-fit test and can be safely used by workers with beards or glasses, offering more flexibility for diverse site crews.

How does the CF15 prevent project delays on-site?

Maintaining a fleet of certified CF15 sets in site offices ensures that complex entries can proceed without waiting for replacements. Having 15-minute sets on hand provides the versatility to cover almost any confined space scenario, preventing project
