Globestock 20m Personnel Winch

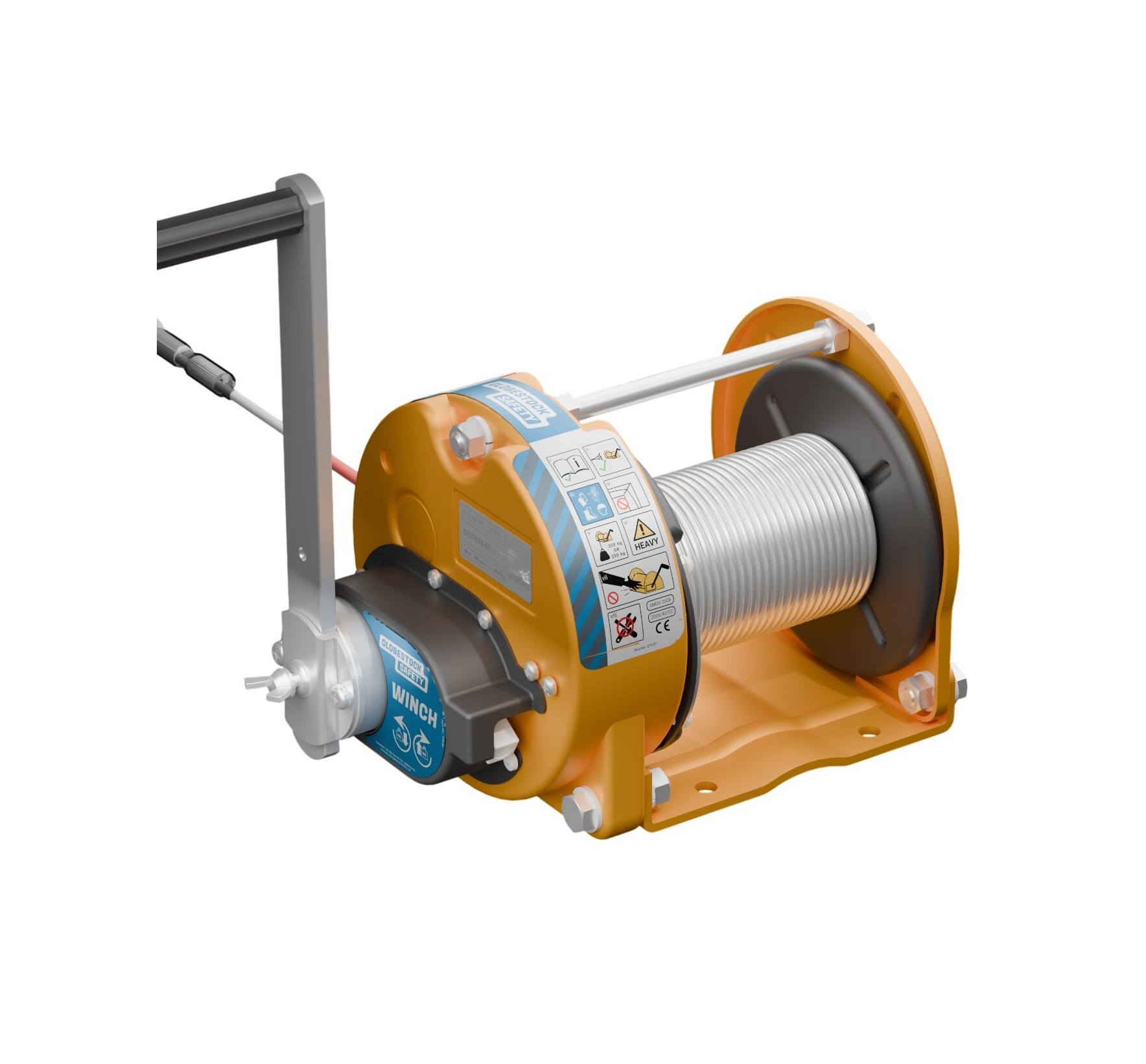

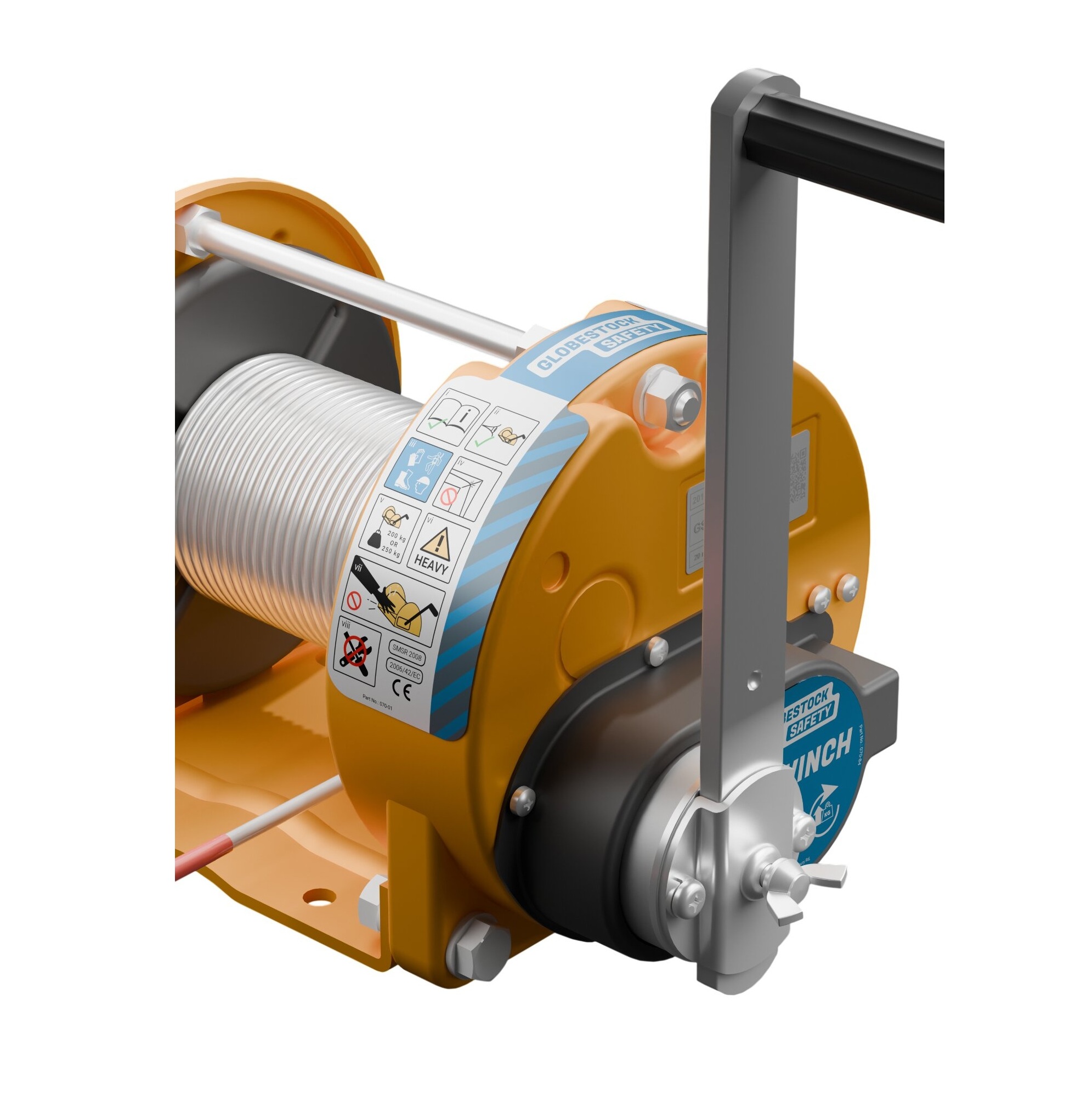

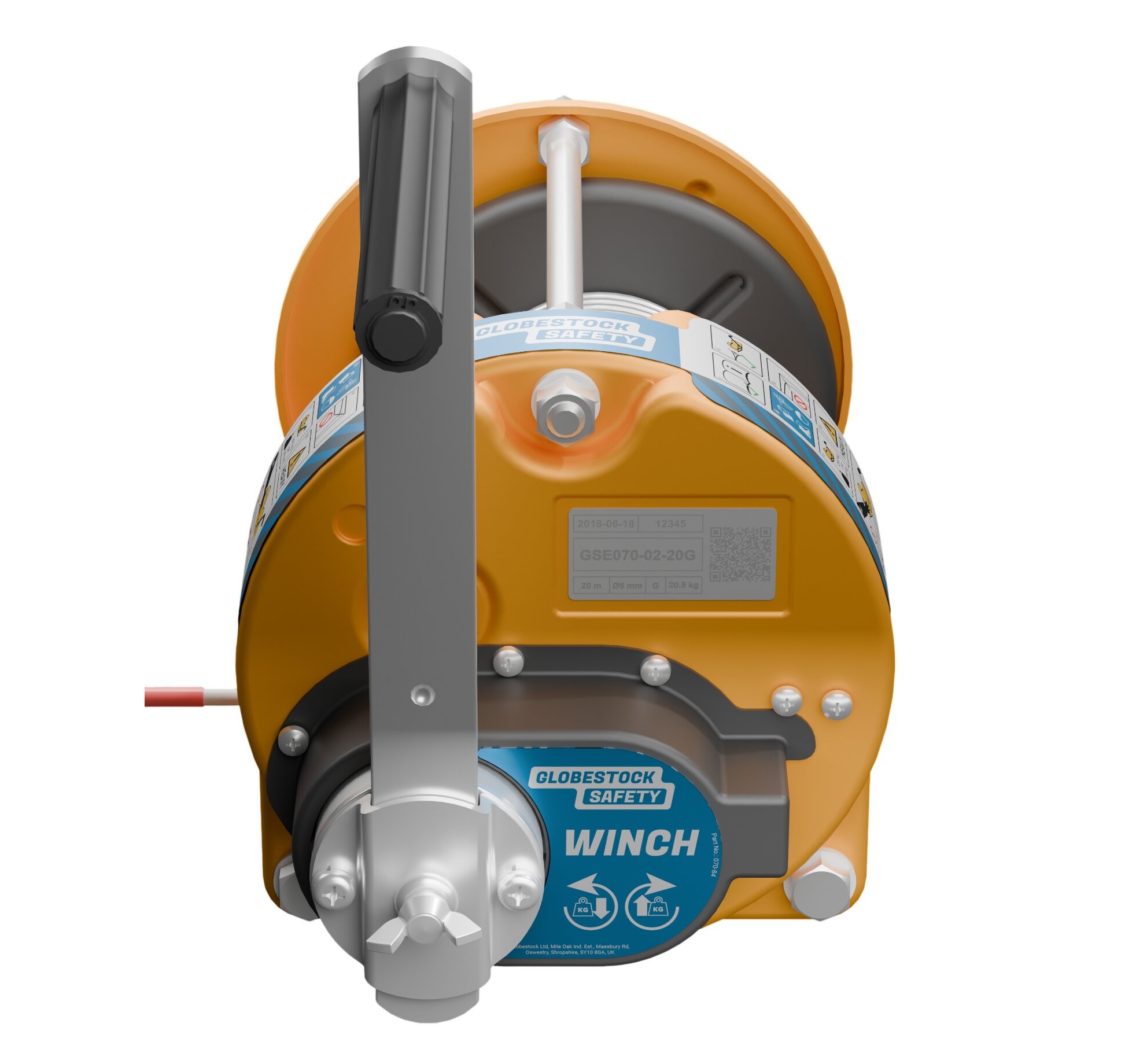

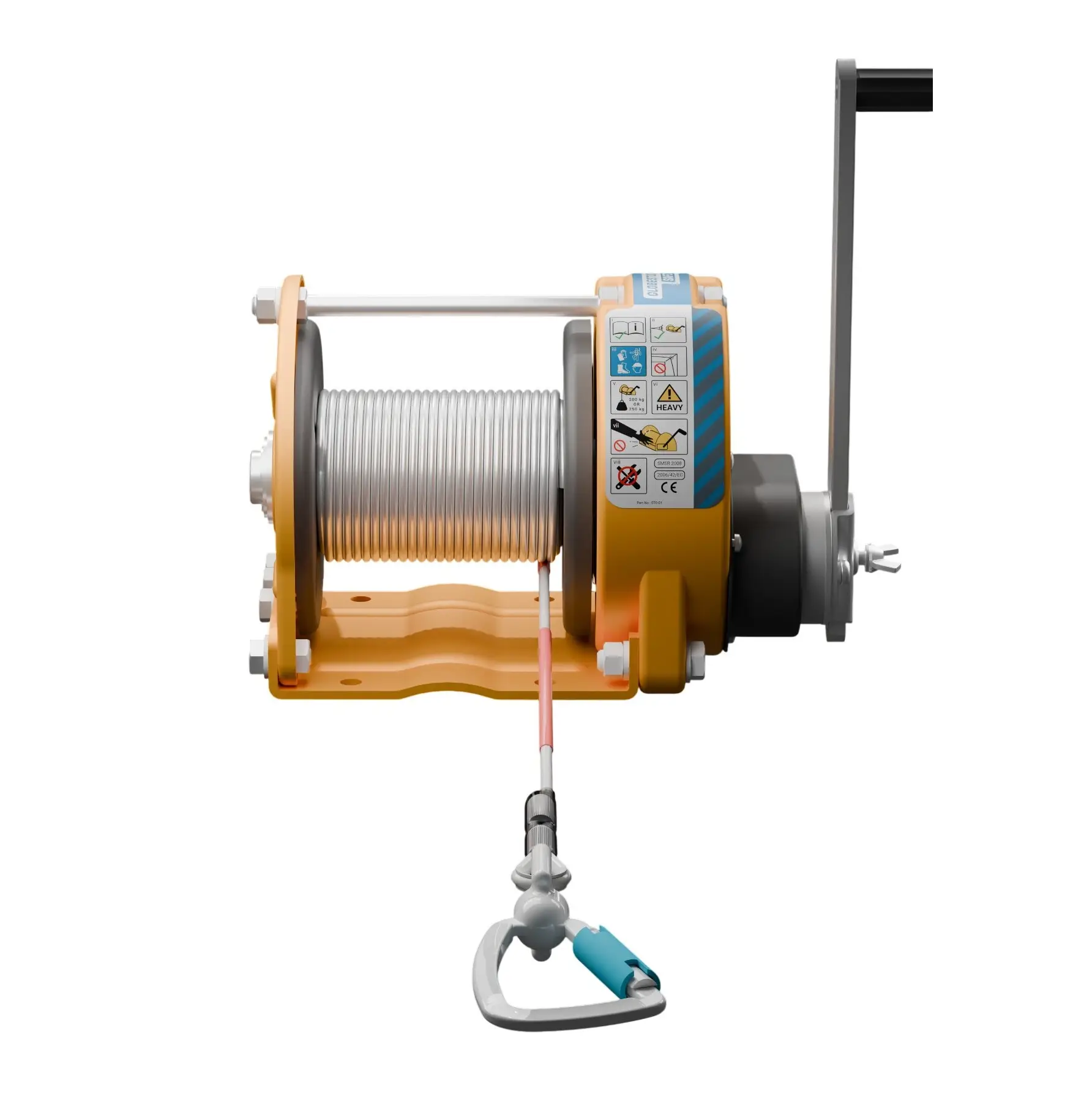

The Globestock 20m Man-Riding Winch is a heavy-duty mechanical hoist designed for the routine lifting and lowering of personnel. Featuring a 20m galvanized wire rope and a secure mounting bracket, it provides a smooth, controlled ascent and descent for workers entering deep utility manholes and specialised confined space environments.

High-Efficiency Gear Ratio – Features a 1:8.9 mechanical advantage that enables effortless lifting, retrieving 50mm of cable with every single rotation of the handle.
Automatic Anti-Run Brake – Integrated safety mechanism automatically locks the winch if the handle is released, preventing free-fall and holding the user securely in position.
Dual-Purpose Certification – Fully certified for both routine personnel movement and material lifting (up to 250kg), providing a versatile solution for UK construction and utility sites.
UK-Manufactured Durability – Constructed with a rugged pressed steel body and case-hardened gears to ensure long-term reliability in harsh, abrasive site conditions.
Rapid Tripod Integration – Designed for quick and easy mounting to the Globestock G.Tripod via dedicated brackets, allowing for fast deployment in emergency rescue scenarios.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

RGH5 Harness

Globestock SENTRY Tripod

Globestock SAVER 34m

Full Description

The Globestock GSE070-20G is a precision-engineered man-riding winch designed specifically for personnel access in the UK utility and construction sectors. Unlike emergency recovery blocks, this winch is built for the routine movement of workers, providing a reliable mechanical solution for entering and exiting vertical shafts where ladder access is not possible or practical. The unit features a 20-metre galvanized steel cable, offering a significant reach for deep excavation projects and large-scale sewer works. Safety and control are central to the design of the GSE070-20G. It is equipped with an automatic braking system that immediately locks the cable if the operator releases the handle, preventing any uncontrolled movement. The high gear ratio ensures that the top-man can lift or lower a worker with minimal physical effort, reducing fatigue during frequent operations. The winch is supplied with a heavy-duty mounting bracket, allowing it to be securely attached to a G.Tripod at an ergonomic height for the operator. This side-mounting approach ensures the overhead anchor point remains clear for secondary safety lines or rescue equipment. Durability and compliance are essential for equipment stored in a site office or used in harsh groundworks environments. The GSE070-20G is housed in a robust, corrosion-resistant casing and is fully certified for personnel lifting. Under UK safety legislation, this winch requires a thorough 6-monthly LOLER inspection to remain compliant. By hiring or purchasing through PQS Survey Ltd, you receive a fully certified unit with all necessary paperwork, ensuring your site operations meet the highest safety standards and avoid unnecessary project delays due to non-compliant gear.

FAQs

What is the main purpose of the GSE070-20G winch?

The GSE070-20G is a dedicated man-riding winch for the routine lifting and lowering of personnel into confined spaces. It provides a mechanical means of access where no ladder is present, offering controlled and smooth movement compared to emergency-only recovery blocks.

Does this winch come in any other lengths for deeper shafts?

Yes. While the 20m model is standard, a 40-metre version (the GSE070-40G) is available for exceptionally deep entries. This ensures that even complex deep-drainage or specialist civil engineering projects can be managed using the same trusted Globestock system.

How is the winch mounted to a tripod?

The winch is supplied with a specific Globestock mounting bracket that quickly clips onto the leg of a SENTRY. Mounting the winch on the leg allows the operator to stand in a comfortable position away from the open manhole while maintaining control.

Is it safe to use this winch as my only safety line?

No. Under UK safety regulations, a worker being lowered on a man-riding winch should be supported by a secondary independent safety line, such as a SAVER recovery block. This ensures that if one system fails, the worker remains fully protected.

What are the load capacities for this unit?

The GSE070-20G has a Safe Working Load (SWL) of 200kg for personnel. This capacity accounts for the worker, their PPE, and any tools. It is essential not to exceed this limit to ensure the braking system operates within its specific design parameters.

What happens if the operator lets go of the handle?

The winch features an automatic friction brake that engages instantly if the operator stops turning the handle or lets go. This “dead-man” safety feature is critical for preventing accidental falls and holding the worker securely in position during a lift or descent.

How often does the winch need to be inspected in the UK?

As it is used for lifting people, the winch falls under LOLER regulations and must undergo a thorough examination by a competent person every 6 months. Using a unit with an expired certificate is a major safety breach that can lead to site closure.

Can PQS Survey provide the 40m version for our site?

Yes. PQS Survey stocks both 20m and 40m Globestock winches for hire and sale. Every unit sent to your site includes a valid 6-monthly LOLER certificate and is fully inspected by factory-trained technicians to ensure it is ready for immediate work.
