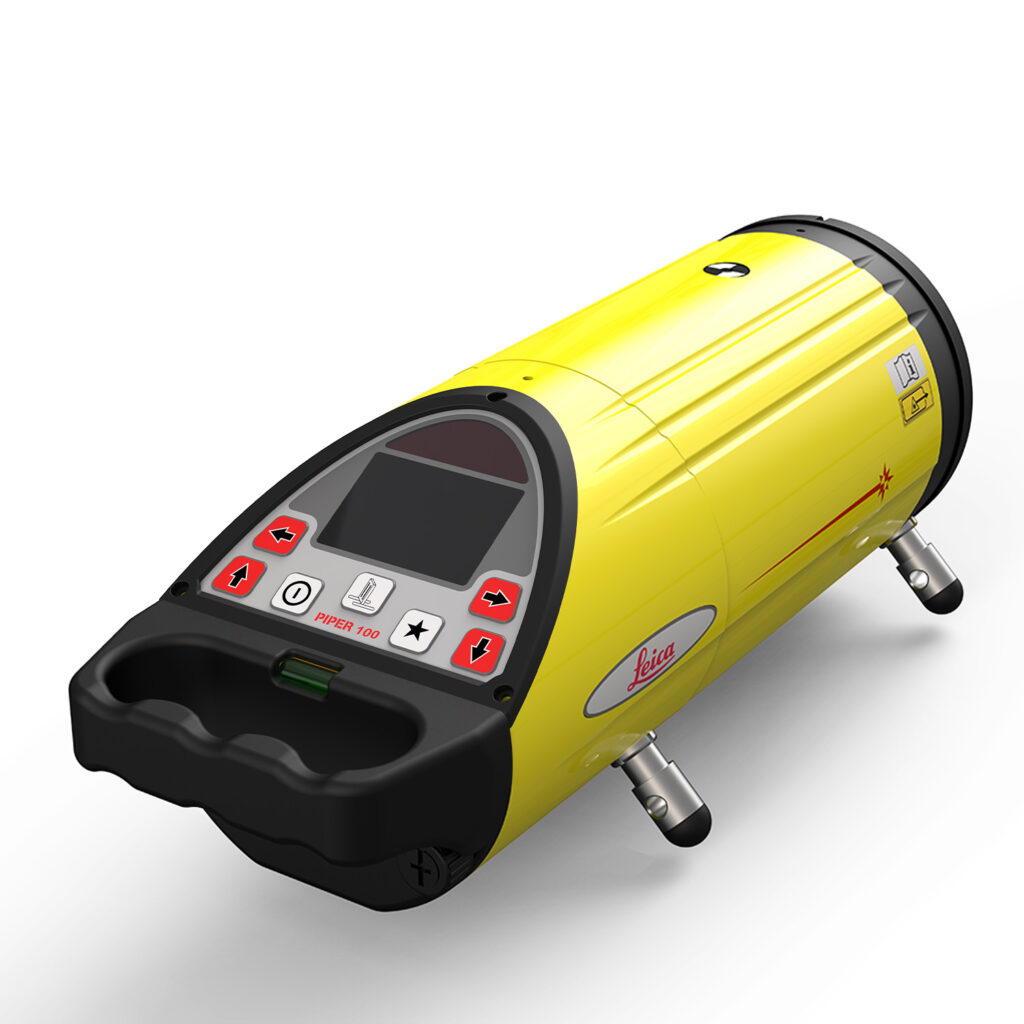

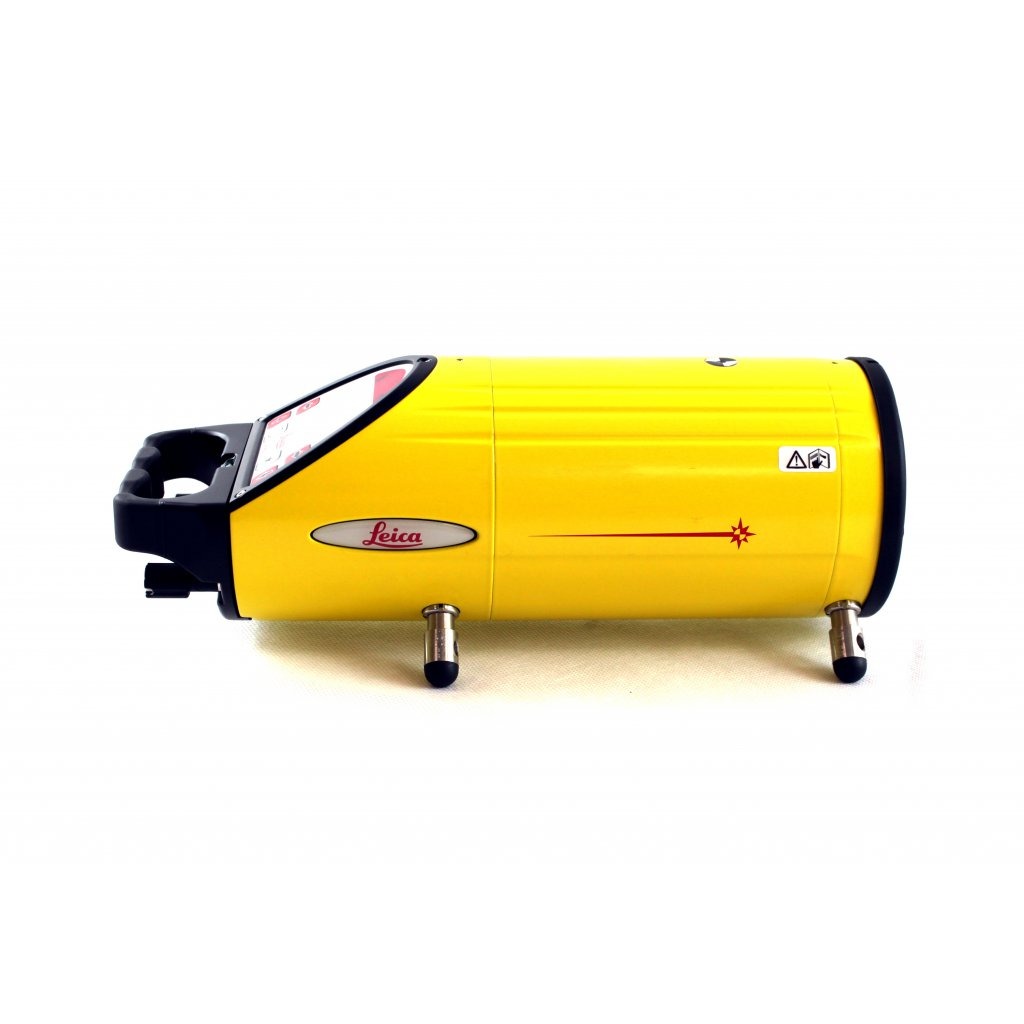

Leica Piper 100

The Leica Piper 100 is a precision pipe laser designed for accurate alignment of pipelines and drainage systems. Compact, robust, and easy to use, it provides reliable grade and alignment control for contractors and surveyors working with pipes from 150 mm to 600 mm diameter.

Compact 100mm Design: The only pipe laser engineered to fit inside a 4-inch (100mm) pipe for restricted access inverts.
Automatic Grade Compensation: Corrects for grade errors even if the housing is rolled up to +/- 3Deg, eliminating manual adjustments.
Versatile Placement: Rugged cast-aluminum body allows for reliable performance in the pipe, over the top, or in the manhole.
Wide Grade Range: Provides a full -10% to +25% grade capability with high-precision electronic self-levelling.
Powerful 40-Hour Li-Ion: Intelligent battery management tracks charge/discharge to ensure you never run out of power mid-task.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Vivax vCam-6 (30m)

Leica DD300 CAT Locator

FAQs

What is the grade range of the Piper 100?

The unit offers a comprehensive grade range from -10% to +25%. This versatility allows contractors to handle everything from standard shallow-fall drainage to steep embankments and storm-water systems with absolute precision.

Can the Piper 100 be used for alignment as well as grade?

Yes. The Piper 100 features a large display showing cross-axis level and allows for manual line adjustment. This enables operators to quickly centre the beam within the pipe or manhole for perfect horizontal alignment.

How does the “Automatic Grade Recovery” feature work?

If the laser is disturbed or bumped during a pipe run, the Piper 100 automatically re-levels itself to the set grade. This maintains the integrity of the fall throughout the day, preventing costly rework or “bellies” in the pipeline.

Is the Piper 100 fully waterproof for use in live sewers?

The Piper 100 carries an IPX8 protection rating, meaning it is fully submersible and pressure-tested. This makes it the ideal tool for working in wet trenches, live manholes, and challenging subterranean environments.

What are the mounting options for different pipe sizes?

The Piper 100 includes interchangeable feet for 100mm, 150mm, and 200mm pipes. For larger diameters, it can be used with a heavy-duty trivet or manhole mount, with feet designed to keep the beam perfectly centred.

How long is the battery life for a standard working week?

The Li-ion battery pack provides approximately 40 hours of continuous use and features a fast-charge function
