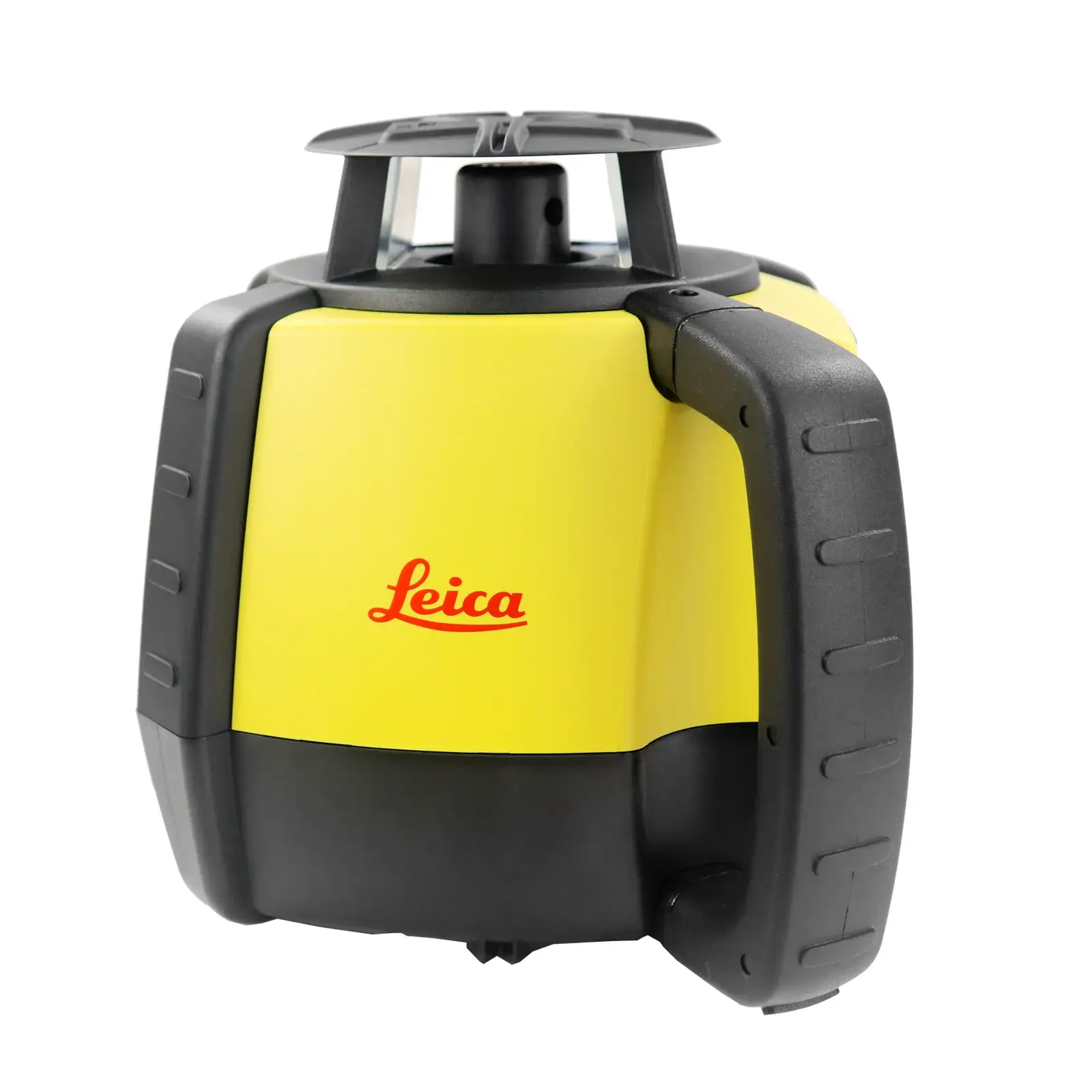

Leica Rugby 620

The Leica Rugby 620 is a straightforward horizontal rotating laser designed for dependable levelling on construction and groundworks projects. Known for its durability and ease of use, it provides a stable height reference for teams needing reliable performance with minimal setup.

800m Diameter Range: Reliable long-distance coverage for large-scale concrete and formwork.
1.5mm High Accuracy: Delivers precise horizontal levelling at 30m for critical foundations.
Manual Single-Axis Slope: Simple grade matching up to 8% for driveways and landscaping.
IP67 Waterproof Rating: Maximum protection against dust and temporary water immersion.
60-Hour Battery Life: High-endurance operation with alkaline batteries or Li-ion options.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

5m 5 Section Aluminium Levelling Staff

Promax Heavy Duty Fiberglass Survey Tripod

Leica Rod Eye 160

Full Description

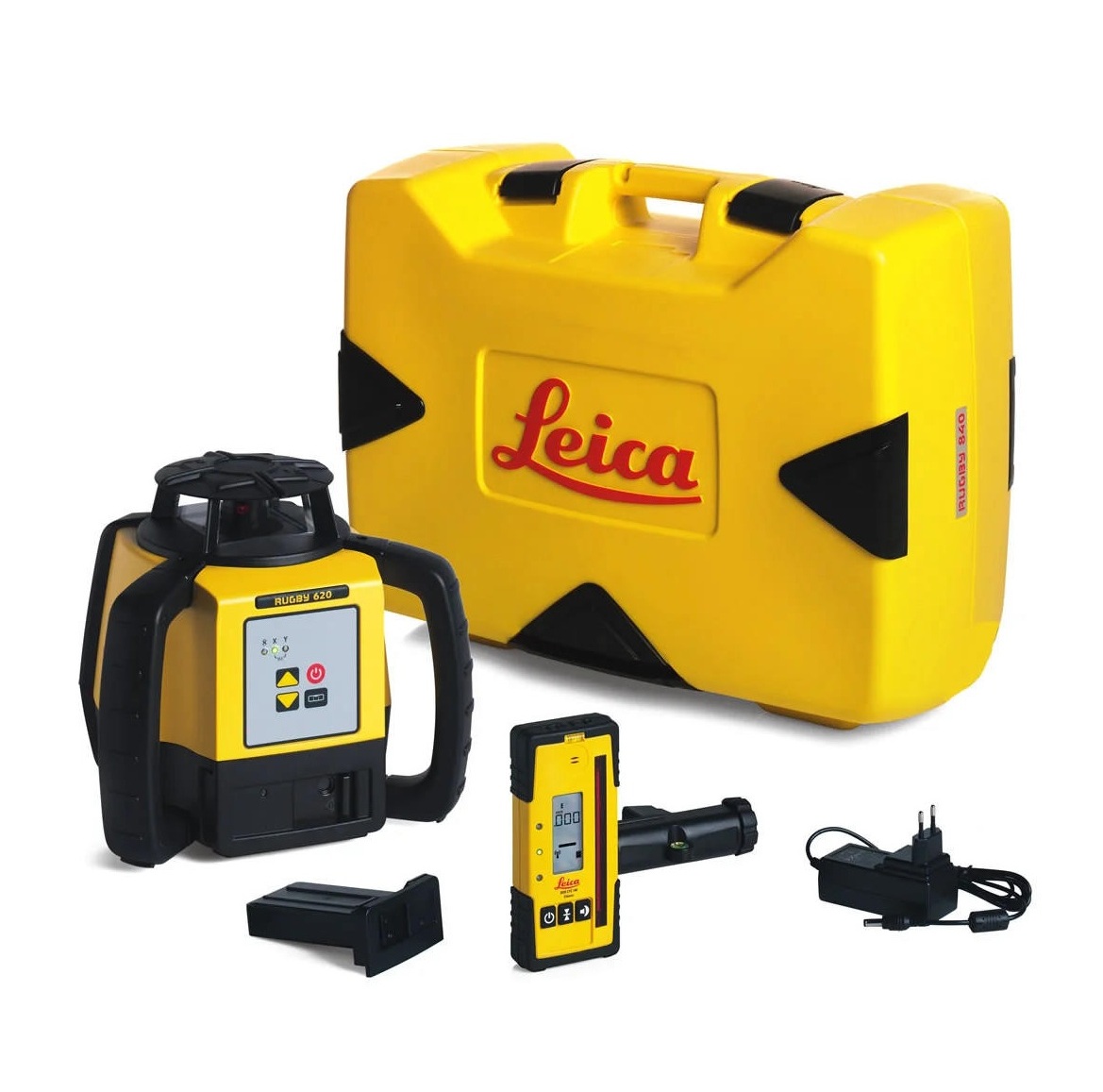

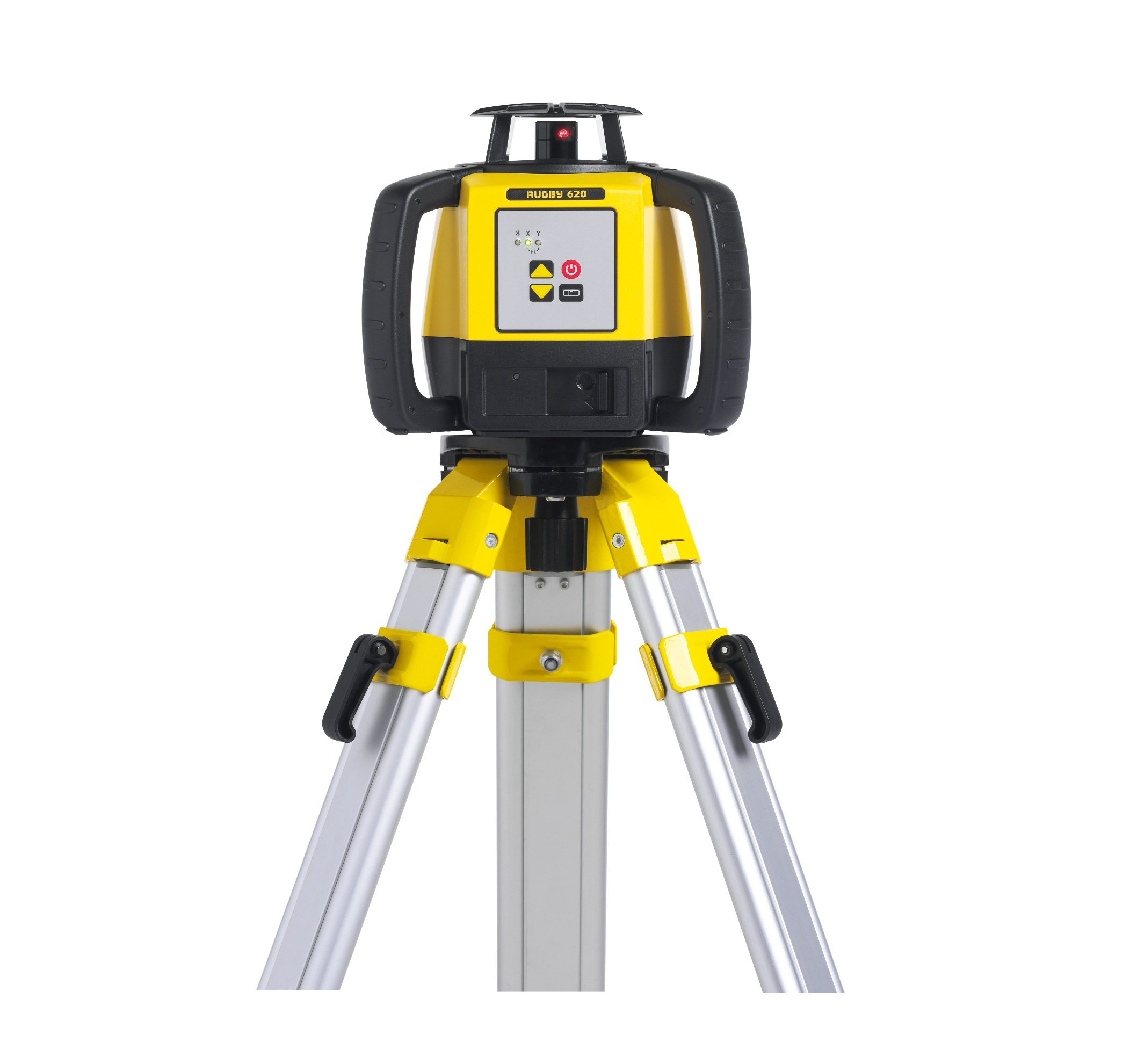

The Leica Rugby 620 Rotating Laser Level is designed for contractors and site teams who value reliability, simplicity and consistent results. It is well suited to everyday construction environments where fast deployment and dependable horizontal levelling are more important than advanced configuration. Once powered on, the Rugby 620 automatically establishes a level horizontal plane, allowing users to begin work quickly without complex setup procedures. This makes it particularly effective on fast-moving sites where equipment may be repositioned frequently throughout the day. When used alongside a compatible laser receiver such as the Rod Eye 160, it provides a clear and consistent height reference across wide working areas. The unit is built around a tough, impact-resistant housing, helping protect the laser from dust, moisture and general site wear. This robust design supports continued operation in exposed outdoor conditions and reduces downtime caused by accidental knocks or handling damage. Clear controls and simple status indicators make the Rugby 620 easy to operate across mixed-experience teams, helping maintain productivity without specialist training. Supplied in a protective carry case, it is well suited to general site levelling, concrete and slab preparation, trenching, and groundworks setup, offering a dependable solution for daily construction use.

FAQs

Which receivers are best suited for use with the Rugby 620?

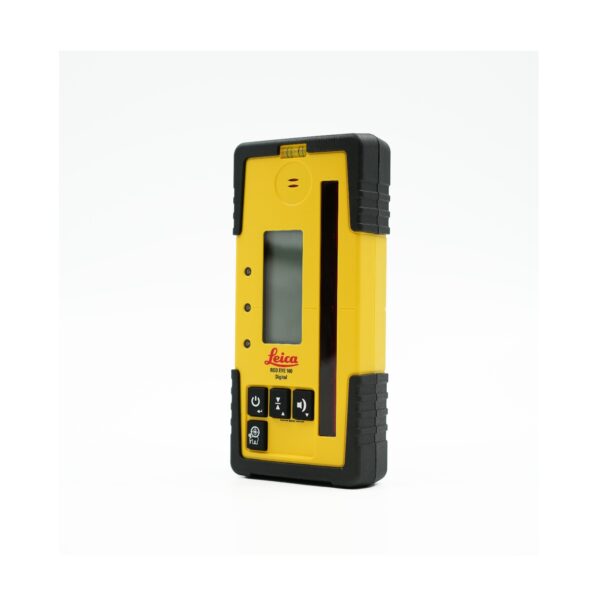

While it works with standard receivers, we recommend the Rod Eye 160 Digital. This model provides a digital readout in millimetres, showing exactly how far you are from the target level, which significantly speeds up concrete pouring and levelling tasks.

What sets the Leica Rugby 620 apart from other horizontal lasers?

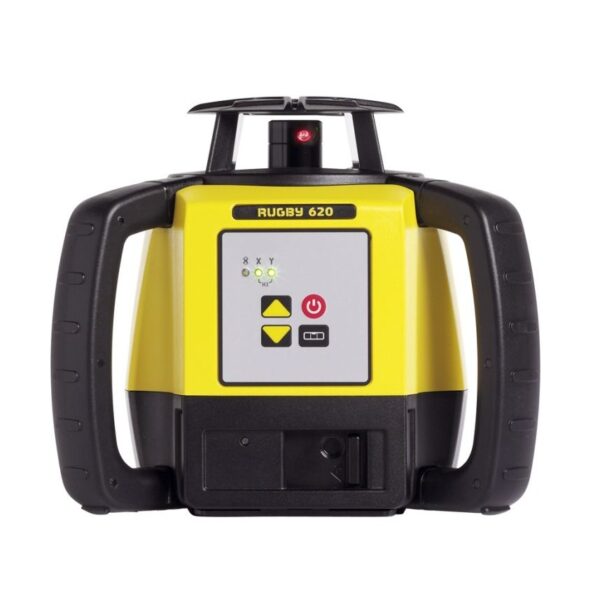

The Leica Rugby 620 is designed for “no-mistake” simplicity with a professional-grade horizontal laser and a simple three-button interface. This ensures site operatives can set it up correctly without the risk of changing complex settings, providing accurate levelling for formwork and foundations.

Can the Rugby 620 be used for simple grading tasks?

Yes. While primarily a horizontal laser, the Rugby 620 features a manual slope function. By using a button combination or optional remote, you can manually tilt the laser on a single axis to match gradients for driveways or basic drainage falls.

What is the “H.I. Alert” function and how does it protect my work?

The Height of Instrument (H.I.) Alert is a critical safety feature. If the laser is bumped or the tripod moves, the unit stops rotating and alerts the user. This prevents inaccurate readings that could lead to costly errors in finished floor levels or foundation depths.

Is the Leica Rugby 620 durable enough for harsh UK site conditions?

Absolutely. It is built to the IP67 standard, providing the highest level of protection against dust and water. It is completely waterproof and can be submerged briefly, making it ideal for unpredictable British weather and muddy groundworks environments.

How does the Leica “PROTECT” warranty benefit my business?

Leica’s “PROTECT” service includes a lifetime manufacturer’s warranty against defects, a 3-year “No Cost” period covering repairs and calibration, and a 2-year knockdown warranty. This provides peace of mind and significantly reduces the long-term cost of ownership.

Where can I get my Leica Rugby 620 calibrated or repaired?

PQS Survey Ltd is fully equipped to service the range. Our manufacturer-trained technicians at UK depots use specialised diagnostic tools to ensure your laser is calibrated to its original ±1.5mm at 30m accuracy, keeping your unit compliant and site work precise.

What is the working range of the Rugby 620?

The laser has a working diameter of up to 800 metres when paired with Rod Eye 140 or
