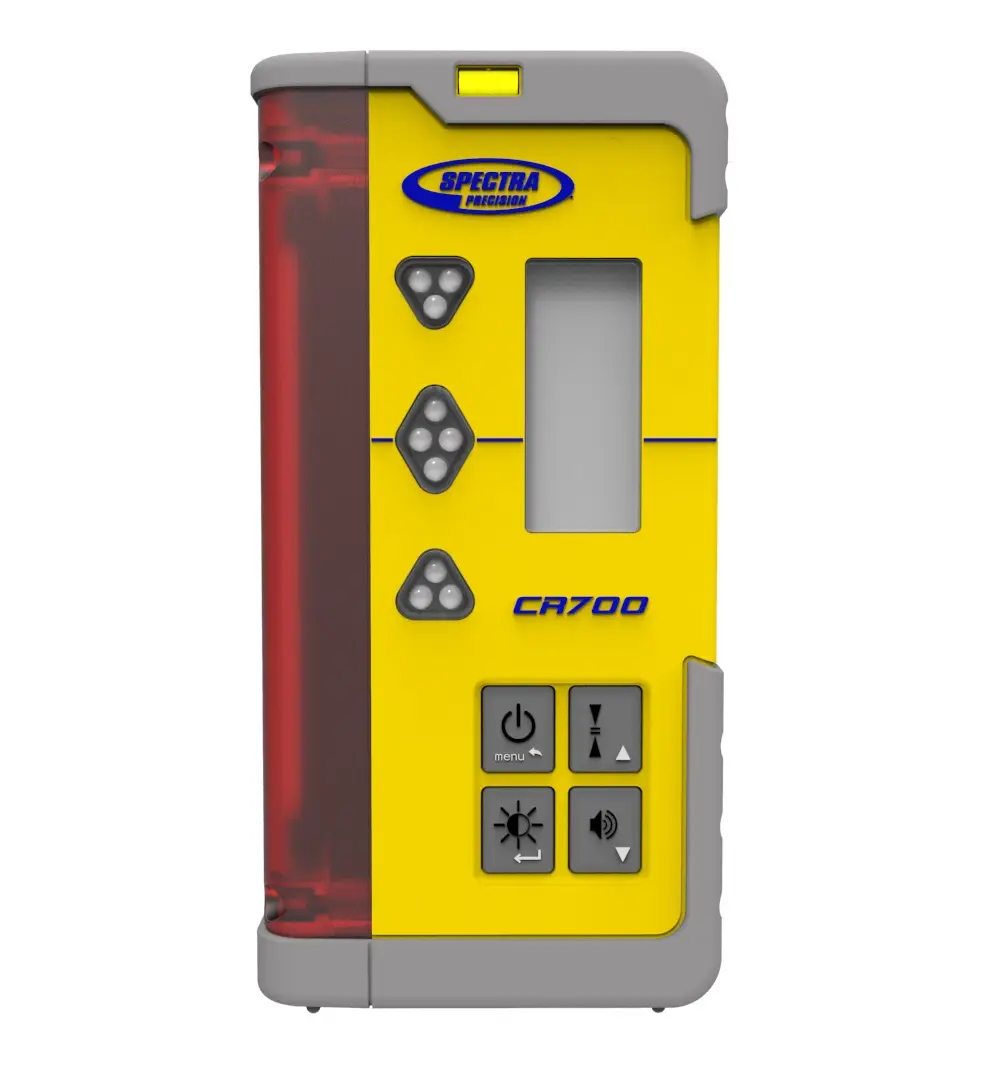

Spectra CR-700

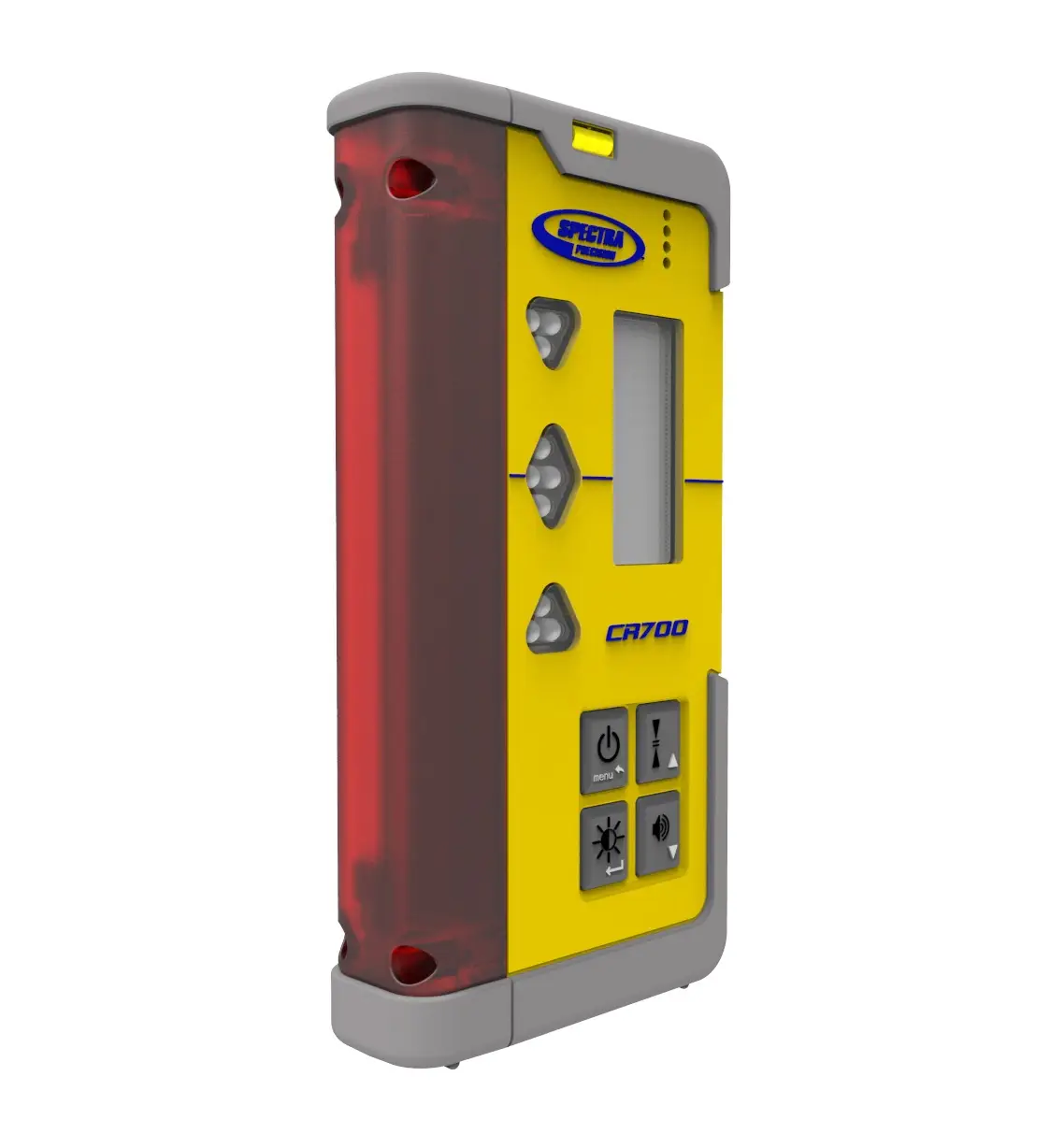

Spectra CR-700 - Image 2

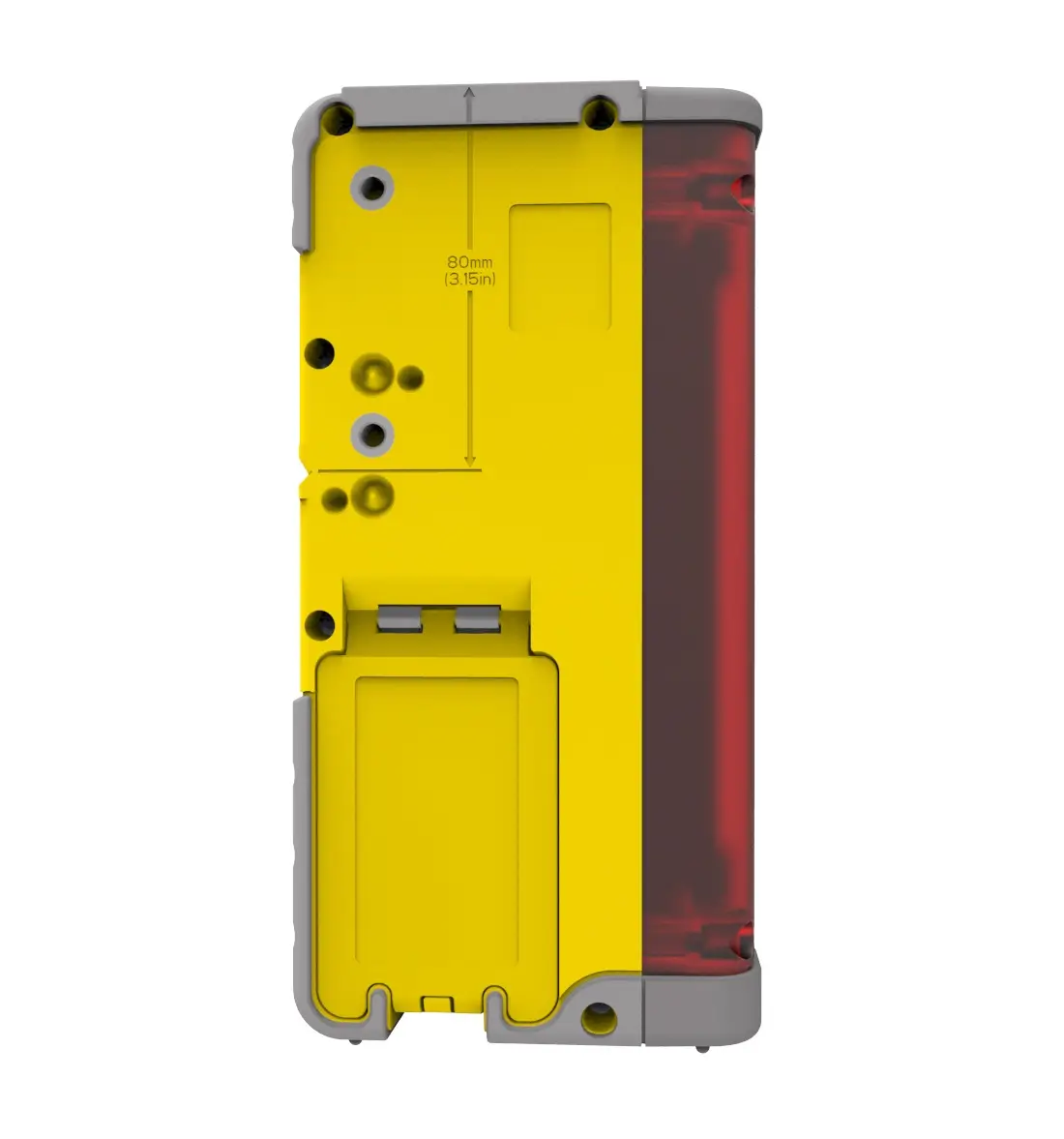

Spectra CR-700 - Image 3

Spectra CR-700

The Spectra CR700 is a versatile combination receiver that works as both a machine-mounted display and a traditional handheld staff receiver. Ideal for mini-excavators and backhoes, it features super-bright LEDs and a digital readout to provide instant grade information directly to the operator.

  • Dual-purpose design works on both machinery and standard survey staves.
  • Super-bright multi-colour LED arrows are visible even in direct sunlight.
  • Fingerprinting technology pairs the receiver to your laser to prevent cross-interference.
  • Digital readout displays the exact millimetre distance to grade for precise checks.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

5m 5 Section Aluminium Levelling Staff

5m 5 Section Aluminium Levelling Staff

Enquire
Spectra GL1425C

Spectra GL1425C

Enquire
Spectra LL300N

Spectra LL300N

Enquire

FAQs

Spectra CR-700
Can the Spectra CR700 be used on mini-excavators?
Yes, it is specifically designed for small to medium machinery, allowing operators to check grade from the cab without needing a second person.
Spectra CR-700
How does the CR700 compare to the Spectra HL760?
The CR700 is a combination receiver with magnetic machine mounting and wrap-around LEDs, whereas the HL760 is primarily a high-precision staff receiver.
Spectra CR-700
Is it possible to hire the Spectra CR700 for a project?
PQS Survey Ltd offers the CR700 for hire, providing a flexible way to add entry-level machine control to your fleet for specific contracts.
Spectra CR-700
What is the maximum reception angle of this receiver?
The unit features a wide 200-degree reception angle, making it easier to capture the laser beam while the machine is in motion.
Spectra CR-700
Does the CR700 include a digital readout?
The receiver provides a clear numerical display of the distance to grade in millimetres, which is visible on both the front and rear screens.
Spectra CR-700
How rugged is the CR700 for heavy construction use?
It is extremely durable, featuring a 3 metre drop guarantee on concrete and a fully waterproof housing to handle any UK weather.
Spectra CR-700
What power source does the receiver require?
The unit is powered by three standard AA alkaline batteries, offering approximately 60 hours of continuous operation on site.
Spectra CR-700
Can this receiver be used for vertical alignment?
Yes, the CR700 is ideal for vertical applications and includes a vertical drift alarm to warn the user if the laser beam is disturbed.
