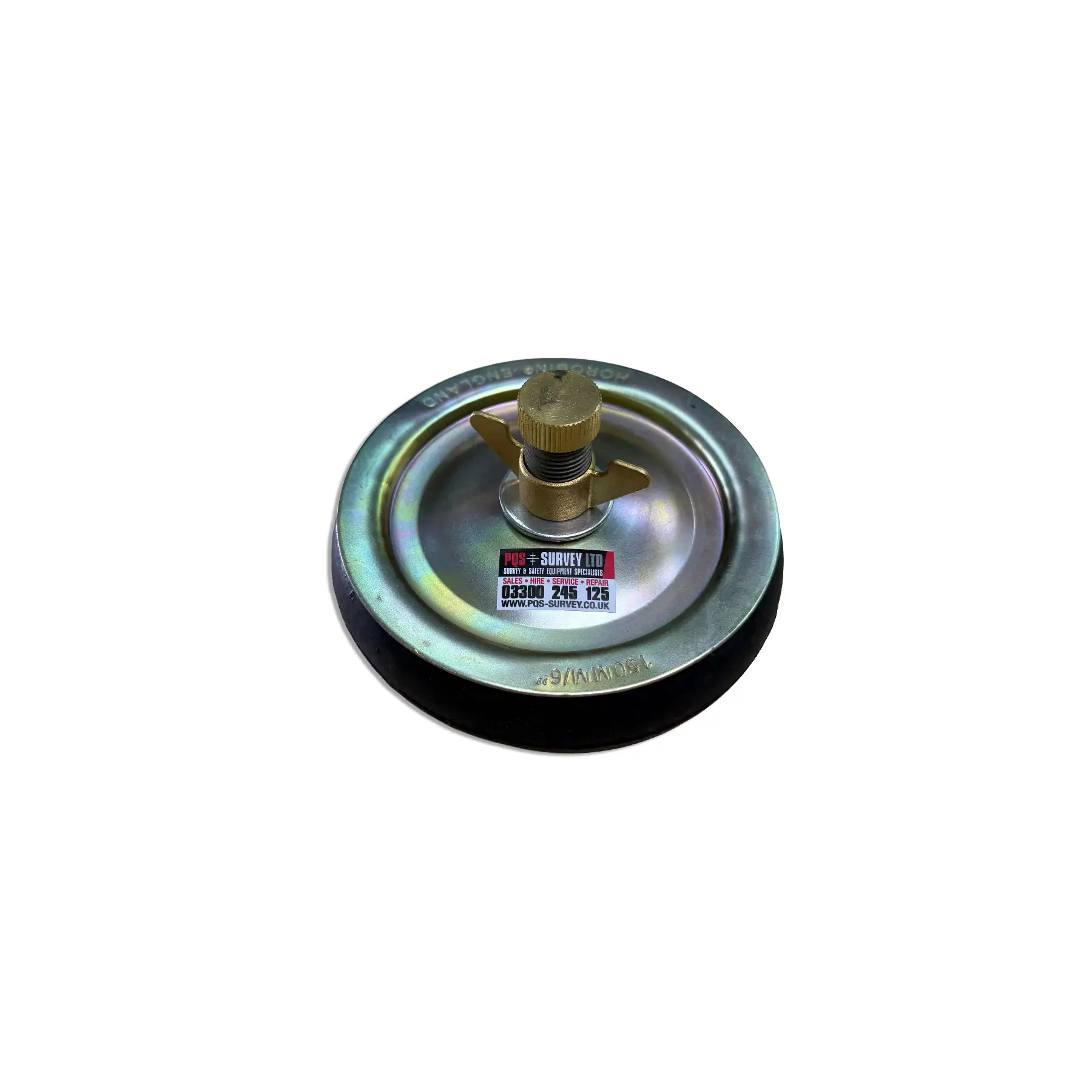

Steel Pipe Stopper 150mm

Heavy-duty 150mm steel pipe stopper engineered for blocking or testing standard 6-inch pipelines and drainage networks. Built with a zinc-plated steel chassis and an expanding rubber ring, it provides a dependable, high-pressure seal to ensure safe pipeline isolation during site maintenance.

Heavy Duty Zinc Plated Steel Frame: Built with a rugged steel central stem and plates that resist mechanical deformation and corrosion in damp trench environments.
Expandable Natural Rubber Perimeter Ring: Features a high-grip rubber sealing rim that expands uniformly against the inner pipe wall to form a gas and watertight block.
Threaded Steel Nominal Bypass Nipple: Outfitted with a central hollow half-inch thread and removable sealing cap to allow controlled water drainage or air testing connections.
Mechanical Wing Nut Locking Assembly: Employs a smooth twin-lip compression nut that tightens manually to compress the plates and expand the plug quickly without complex tool setups.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Steel Pipe Stopper 100mm

PVC Inflatable Sealing Bag

Drain Air Testing Kit

FAQs

What are the main applications for a 150mm steel pipe stopper on site?

A 150mm steel pipe stopper is ideal for sealing, blanking, or pressure-testing standard 6-inch commercial drainage lines, main sewers, and industrial pipework.

How does a 150mm mechanical steel stopper create a secure seal?

Turning the central wing nut compresses a thick rubber ring between two zinc-plated steel plates, expanding the seal uniformly against the inner wall of the 150mm pipe.

Can a 150mm steel stopper be used for standard building regulation air tests?

Yes, bypass versions feature a threaded central outlet allowing easy connection to test nipples, hand pumps, and U-gauge manometers for official pressure testing.

Is the steel construction resistant to harsh site conditions and effluent?

The zinc-plated steel plates and heavy-duty rubber ring resist corrosion, rust, and exposure to chemicals, wastewater, and abrasive site grit.

What is the advantage of using a steel mechanical stopper over plastic or inflatable bags?

Steel stoppers offer superior mechanical strength and stability, providing a rigid, high-pressure seal that will not deflate or slip during demanding pipe tests.

Can I hire a 150mm steel pipe stopper for short-term drainage testing?

Yes, we carry a complete selection of 150mm steel mechanical stoppers within our nationwide hire fleet, fully inspected and ready for immediate delivery to your project.
