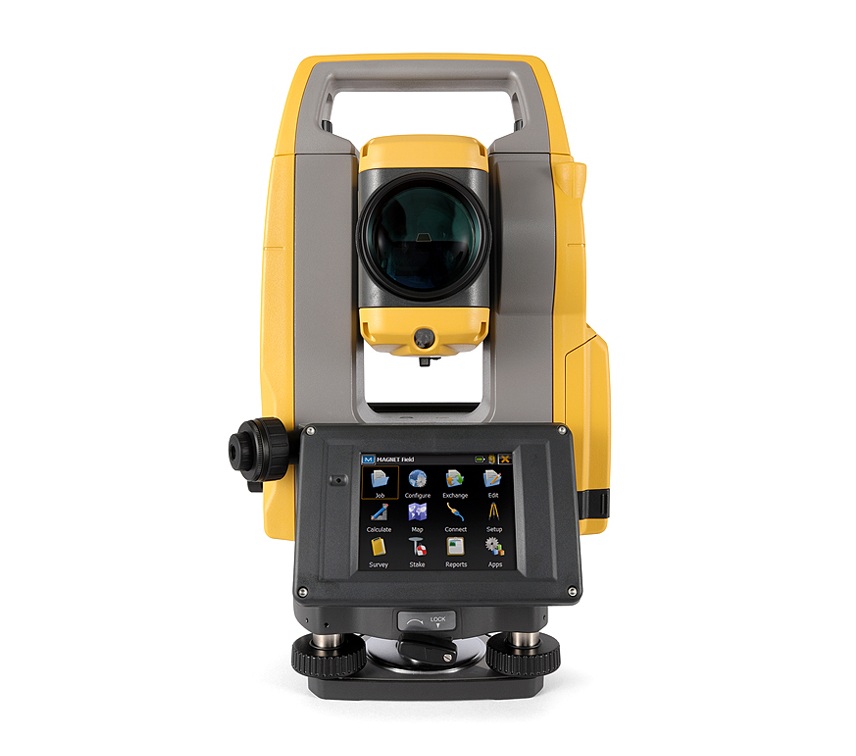

Topcon OS-200

Topcon OS-200

The Topcon OS-200 is a high-performance manual total station designed for precision site layout and topographical surveying. Featuring a sophisticated Windows CE operating system and powerful EDM technology, it offers UK contractors a reliable, high-specification solution for managing complex data with ease.

  • MAGNET Field Software provides an intuitive Windows-based interface for managing advanced data collection and complex setting-out tasks directly on the instrument.
  • Powerful Long-Range EDM delivers high-speed measurements up to 1,000m in reflectorless mode or 6,000m when using a standard prism.
  • TSshield Security System offers remote locking capabilities and automated firmware notifications to provide total peace of mind for your equipment fleet.
  • IP65 Weather Protection ensures the instrument remains fully operational and accurate when working in heavy rain or dusty site conditions.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Survey Targets 50mm x 50mm Sheet (20 on a sheet)

Survey Targets 25mm x 25mm Sheet (40 on a sheet)

Enquire
White Survey Flags Pack of 100

White Survey Flags Pack of 100

Enquire
Promax Heavy Duty Fiberglass Survey Tripod

Promax Heavy Duty Fiberglass Survey Tripod

Enquire
Topcon OS-200

Full Description

The Topcon OS-200 series represents a major step forward in manual total station design, offering professional-grade accuracy within a rugged, user-friendly package. At its core is the MAGNET Field on-board software, which runs on a bright, high-resolution touchscreen. This allows surveyors to manage large datasets and perform complex calculations directly in the field, bridging the gap between site work and office-based CAD design. Accuracy and speed are delivered via the advanced EDM, which provides fast and consistent measurements even on dark or wet surfaces. The instrument also features TSshield technology, a global first in telematics that provides advanced security and remote software updates, ensuring your investment is protected. Built to withstand the unpredictable UK weather, the OS-200 carries an IP65 rating for dust and water resistance. Whether you are performing high-precision setting out, building surveys, or road infrastructure mapping, the OS-200 delivers the versatile performance required for modern construction environments.

FAQs

Topcon OS-200
Can I hire the Topcon OS-200 or have my existing unit serviced at PQS Survey?
Yes, we offer the Topcon OS-200 for short and long-term hire and our specialist workshop teams are fully equipped to provide calibration and repairs to keep your fleet in peak condition.
Topcon OS-200
What is the benefit of the Windows CE operating system on the OS-200?
The Windows-based platform allows the instrument to run MAGNET Field software, providing a much more powerful and visual way to manage data than traditional basic total stations.
Topcon OS-200
How does the TSshield system protect my equipment?
TSshield allows for remote tracking and locking of the instrument if it is stolen, while also ensuring your software is always up to date via cloud-based notifications.
Topcon OS-200
What is the reflectorless range of the Topcon OS-200?
The OS-200 features a class-leading EDM that can measure distances up to 1,000m without the need for a prism, making it ideal for measuring inaccessible points.
Topcon OS-200
How long does the battery last during a typical site shift?
The high-capacity battery provides up to 20 hours of operation, meaning you can comfortably complete a full day of surveying without needing to swap power cells.
Topcon OS-200
Is the touchscreen easy to use in cold or wet conditions?
Yes, the large colour touchscreen is designed for site use and remains responsive even when the operator is wearing gloves or during light rain.
Topcon OS-200
Can I transfer data wirelessly from the OS-200?
The instrument includes integrated Bluetooth Class 1 technology, allowing for long-range wireless data transfer to field controllers or office computers.
Topcon OS-200
What angular accuracies are available for this model?
The OS-200 series is available in several accuracy levels, typically 1-second, 3-second, and 5-second models to suit different project requirements.
Topcon OS-200
Does the instrument feature a laser plummet for quick setup?
Yes, it is equipped with a laser plummet as standard, allowing for fast and accurate positioning over your survey nails or station marks.
Topcon OS-200
Is the Topcon OS-200 compatible with standard surveying accessories?
The unit uses industry-standard 5-8-inch threads and is fully compatible with our wide range of prisms, poles, and heavy-duty wooden or aluminium tripods.
