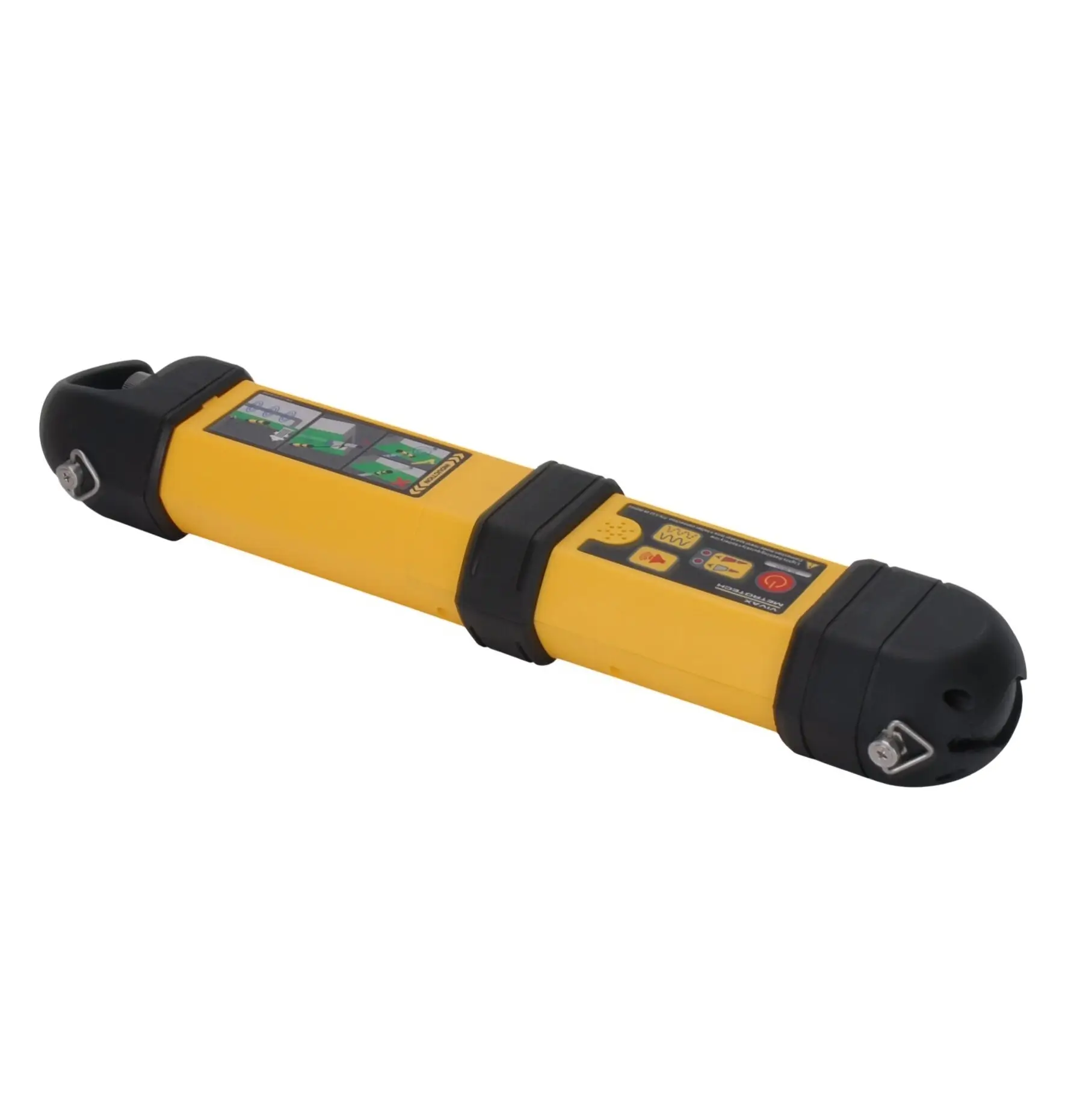

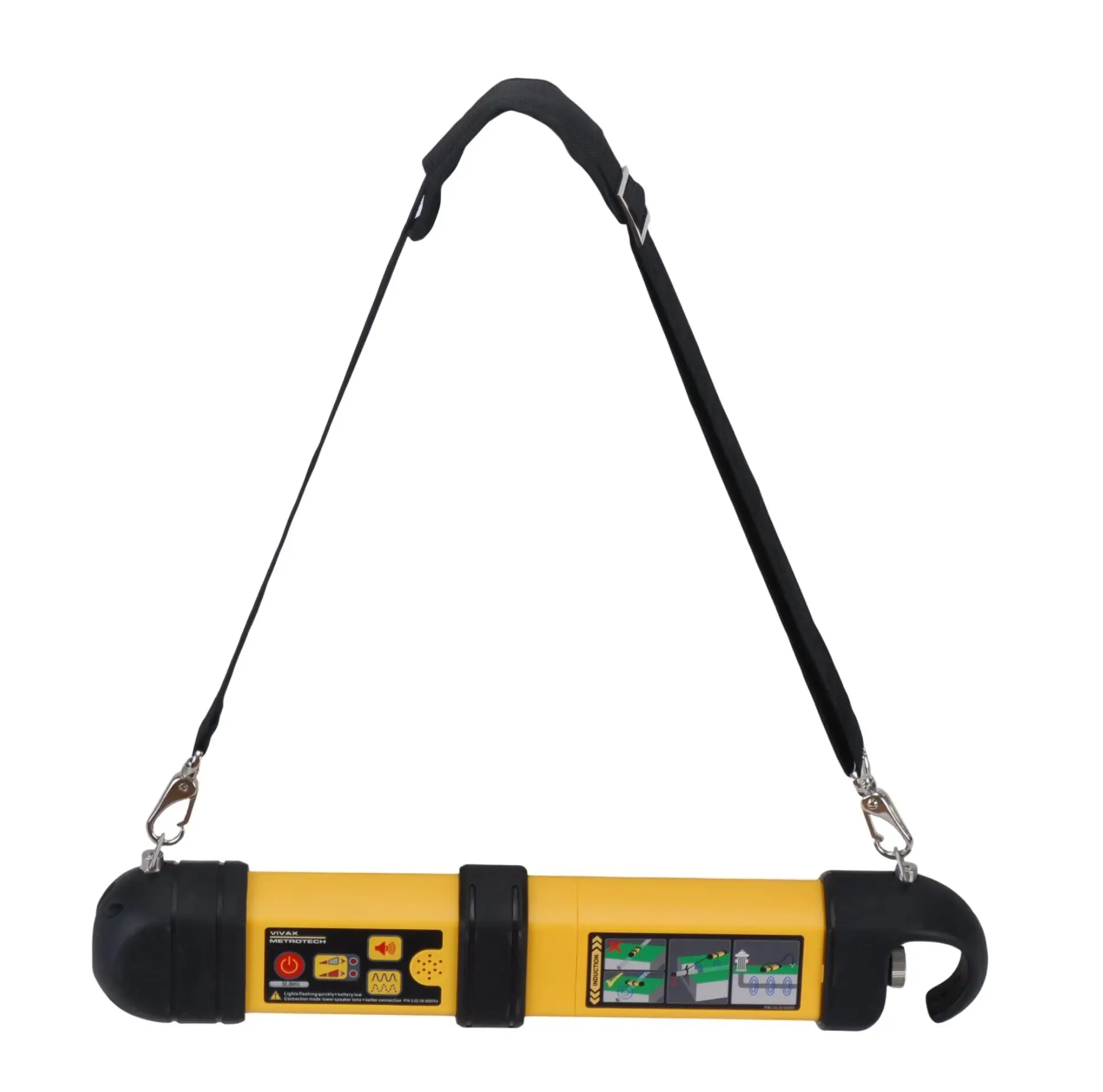

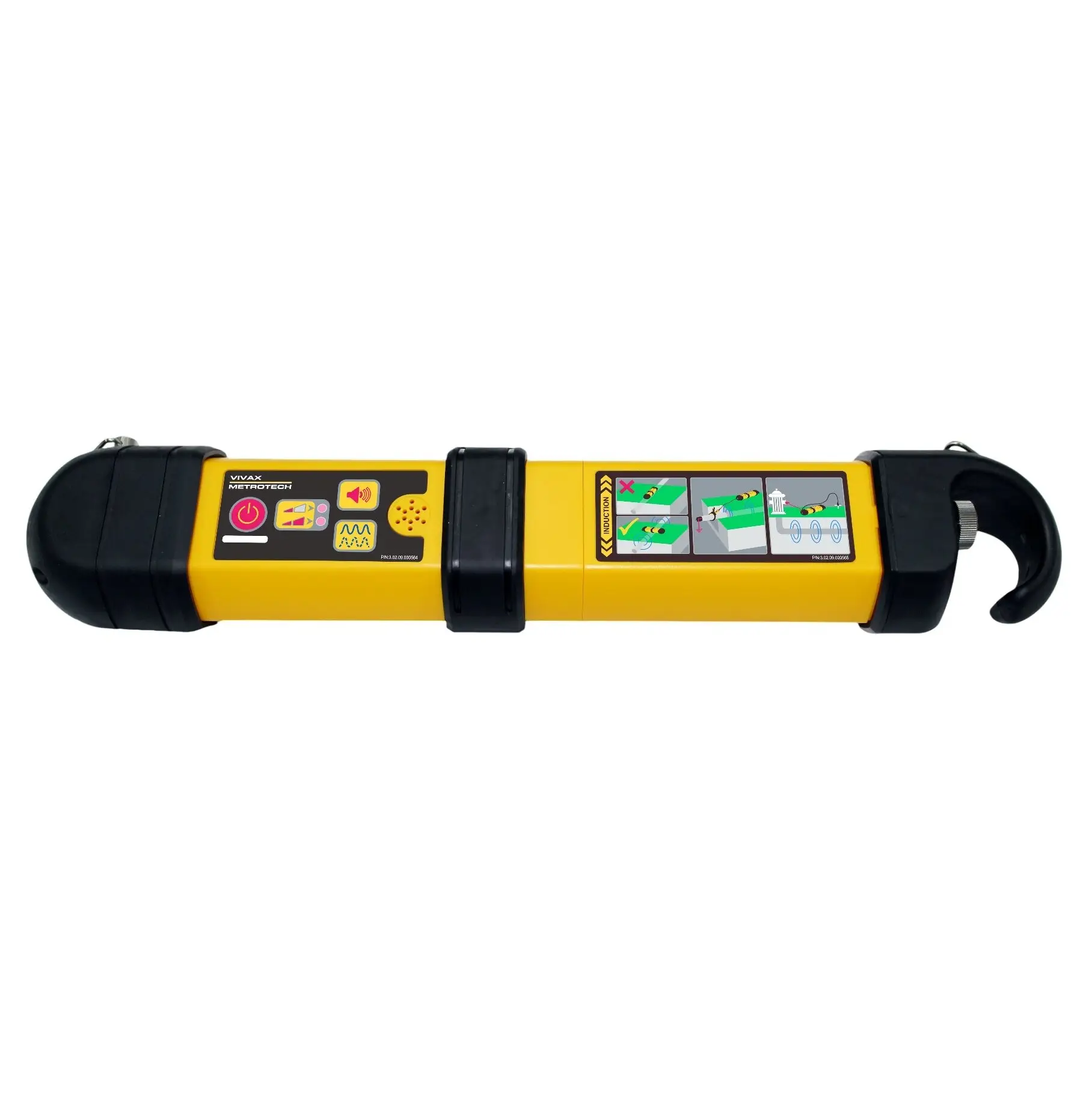

Vivax-Metrotech vScan Transmitter

The Vivax-Metrotech vScan Transmitter is a powerful 1-watt signal generator available for hire from PQS Survey. Engineered for the UK construction sector, it enables precise tracing of buried utilities by applying active signals to pipes and cables, ensuring site safety and preventing accidental strikes during essential groundwork projects.

Direct Metallic Line Connection: Couples directly onto targeted valves, pipes, or dead cables to track specific utility branches.
Smart Signal Load Sense: Automatically matches the line resistance to deliver clean tracking frequencies down the pipe path.
Compact Base Frame Footprint: Styled with a broad, flat base to prevent the unit from tipping over on loose soil embankments.
Integrated Storage Utility Tray: Holds grounding rods and connection leads safely together inside the transport shell.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Vivax-Metrotech Sonde

Vivax-Metrotech vScan

FAQs

What is the standard power output capability of this transmitter?

The vScan transmitter delivers a powerful 1-watt signal output, which provides ample tracing range for standard utility surveys without excessive signal bleeding.

Can we hire this unit for short-term projects?

Yes, the vScan transmitter is available for flexible short-term or long-term hire, providing a cost-effective way to complete active utility line tracing on your current contract.

Does the transmitter support induction mode?

Yes, when a direct connection is not possible, you can place the unit on the ground over the utility to inductively radiate the tracing signal downward.

What active frequencies does the transmitter output?

The unit transmits dual active frequencies simultaneously at 33kHz and 131kHz, allowing the receiver to choose the best signal for the site conditions.

What type of power source does the transmitter utilize?

The unit operates efficiently on four standard D-cell alkaline batteries, providing up to 40 hours of intermittent operational site use.

How do you know if the unit is transmitting a good signal?

The transmitter features an audible connection tone that changes pitch to indicate a low-resistance, high-quality circuit connection to the buried utility.

What accessories are stored inside the transmitter base?

The built-in storage compartment underneath securely holds the direct connection leads, a heavy-duty ground stake, and a connection magnet.

Is the transmitter rugged enough for poor weather?

Yes, the housing is built from high-impact engineering plastics and is rated to IP54, protecting internal electronics from rain, dust, and mud splashes.

Can it be used to trace non-metallic pipes?

No, the transmitter requires a metallic conductor to carry the signal; however, it can trace plastic pipes if connected to a traceable flexitrace line.

How do you make a direct physical connection to a line?

You attach the red crocodile clip directly to a valve or metallic pipe and
