Vivax vCamMX2+ Mini

The Vivax vCamMX2+ Mini is a high-definition, portable camera system designed for inspecting residential plumbing and commercial indoor lines. Featuring an 8-inch daylight-viewable display, a traceable pushrod, and a three-frequency sonde, it delivers professional-grade imaging in a compact, versatile package.

Compact Micro Bore Inspection: Engineered with a low-profile mini camera head to check small-diameter plumbing and internal domestic pipes.
Ultra Flexible Push Rod Matrix: Bends smoothly through tight residential trap configurations and micro conduit pathways without jamming.
Lightweight Portable Control Base: Designed as a compact, all-in-one system that can be lifted with one hand for quick roof or crawlspace tasks.
Wi-Fi Stream Integration Hub: Connects wirelessly to tablet or smartphone screens to share live inspection feeds with clients instantly.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Vivax vCam-6 (60m)

Vivax vCam-6 (30m)

Vivax-Metrotech Sonde

Full Description

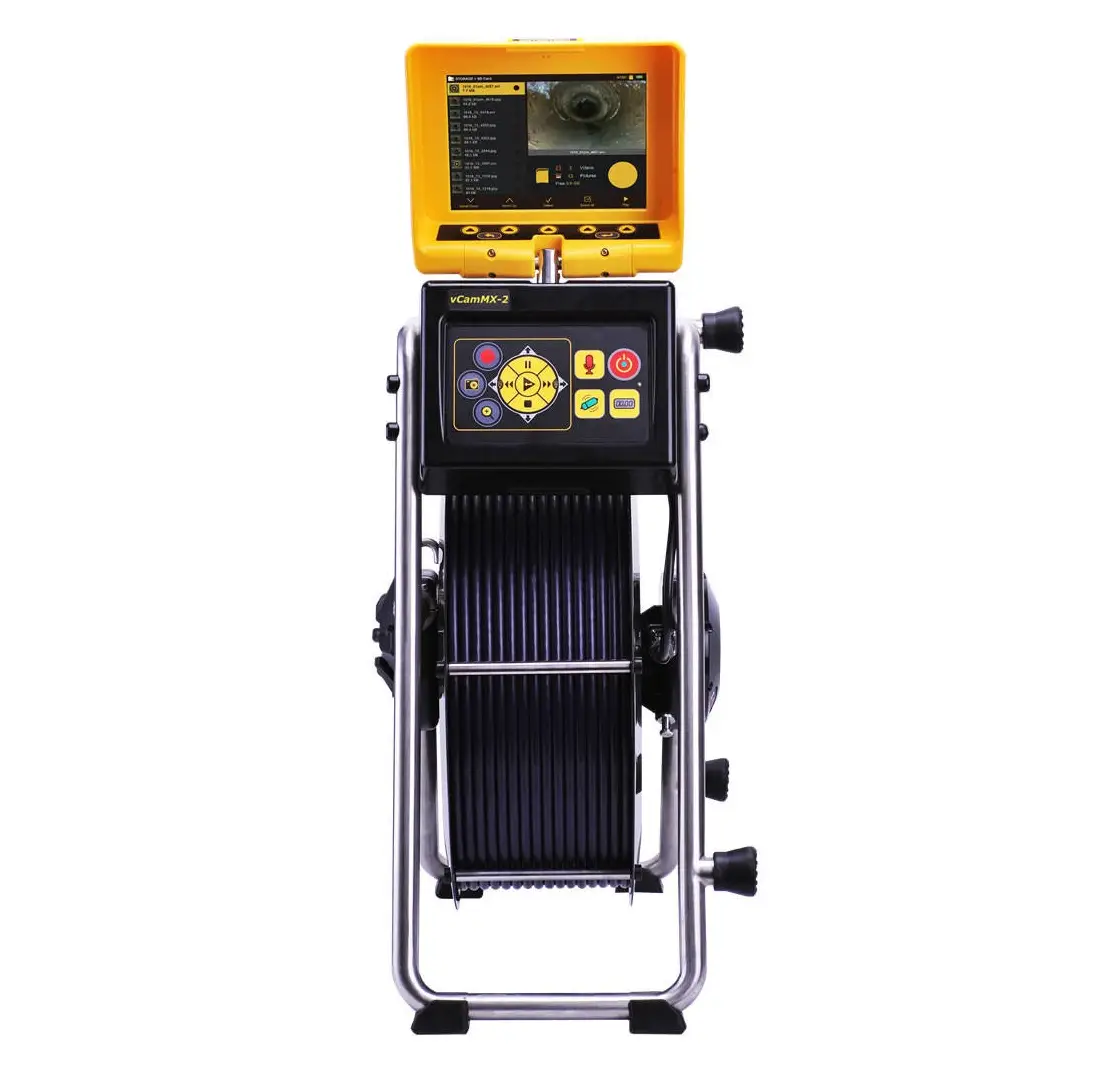

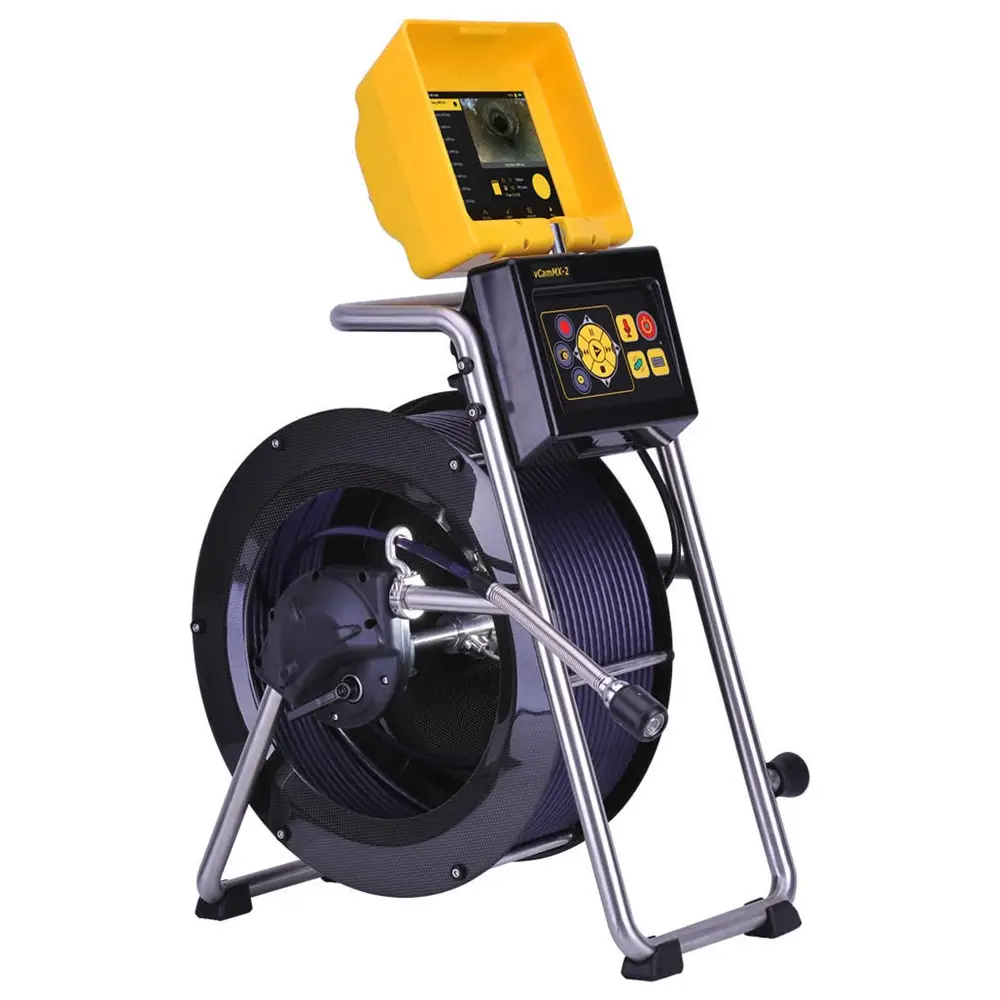

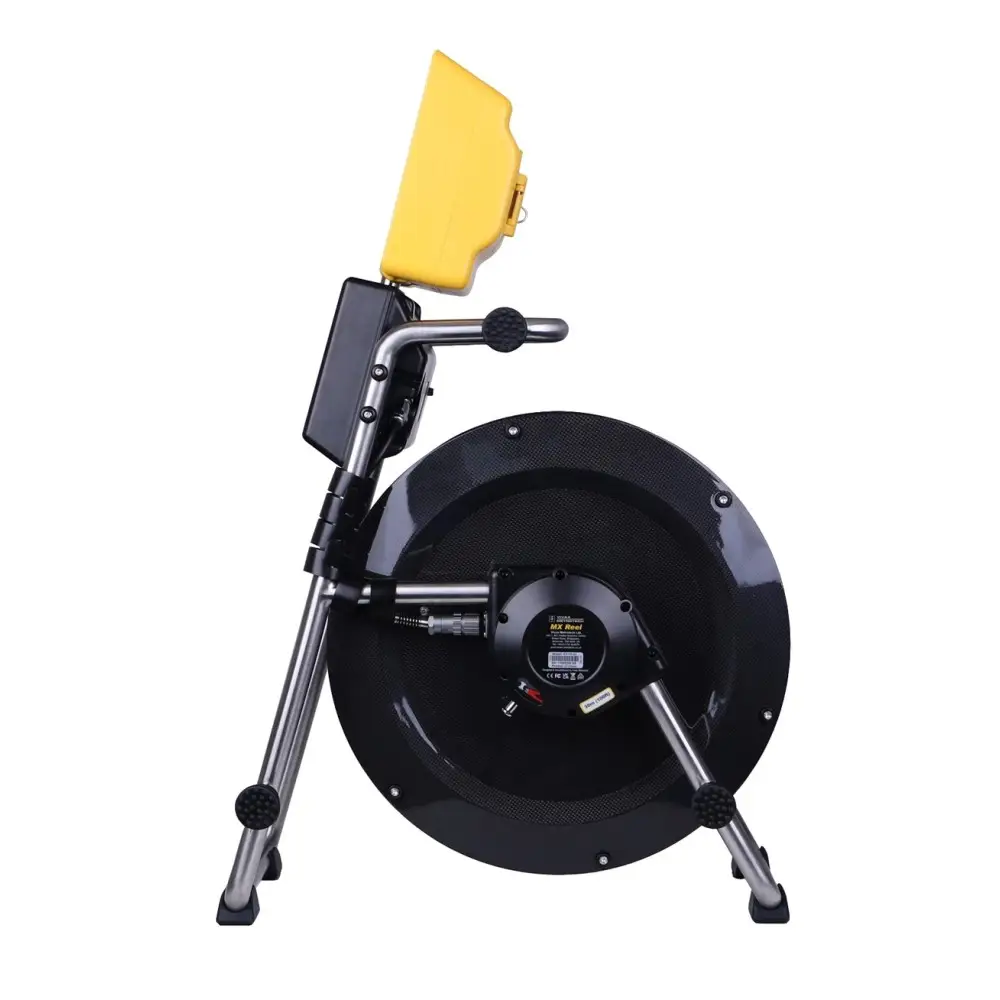

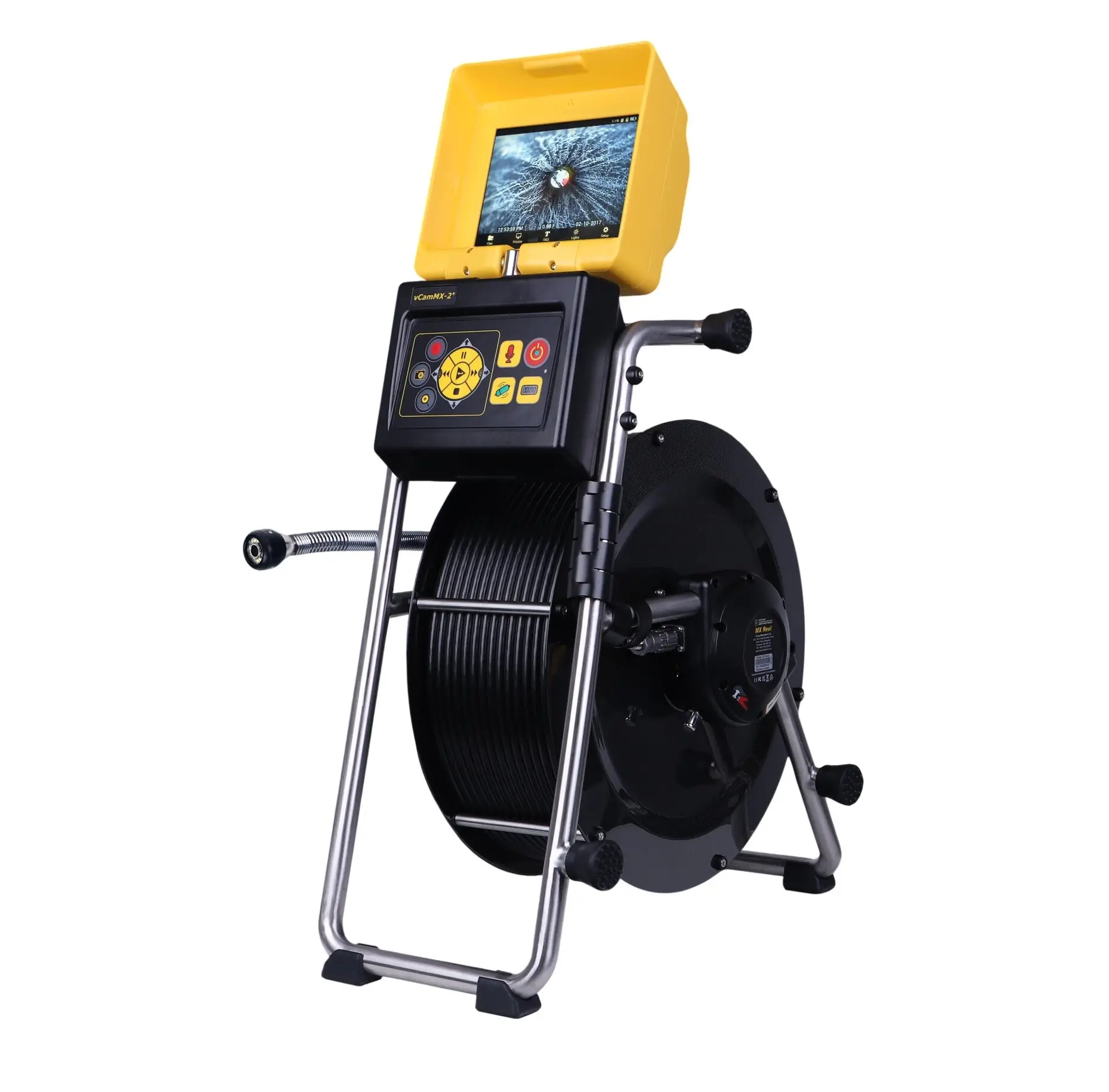

The vCamMX2+ is a versatile and durable mini-inspection system engineered specifically for lateral lines ranging from 40mm to 100mm (1.5" to 4"). This all-in-one unit combines a high-resolution control module with a rugged stainless-steel Type-MX reel. Built to withstand harsh site conditions, the control module is housed in injection-molded ABS and mounted on a frame that allows for both vertical and horizontal operation, making it ideal for tight spaces or rooftop vent entries.Advanced digital features define the MX2+ series, including one-touch MP4 video recording and JPEG image capture directly to a USB drive, with secondary SD card backup. Professionals benefit from the integrated Wi-Fi, which streams live video to the vCam Mobile Controller app for instant file sharing. With a choice of interchangeable HD camera heads-the D18-HD (18mm) for small pipes or the D26-HD (26mm) self-levelling head-this system provides the clarity and flexibility required for precise structural surveys.

FAQs

What size drain lines is this camera system optimised to inspect?

The vCamMX2+ is a mini inspection system optimised for smaller utility pipelines, commercial plumbing lines, and residential drains ranging from 40mm up to 100mm in diameter.

Can we hire this unit for short-term projects?

Yes, the Vivax vCamMX2+ Mini is available for flexible short-term or long-term hire, providing a highly cost-effective way to add compact video diagnostics to your fleet.

What specific video resolution does the mini camera head offer?

The system utilizes an ultra-compact, high-definition D18 or D26 fixed camera head that captures crisp, clear digital video to identify internal pipe defects easily.

How do you trace the location of the camera head from the surface?

The camera head features a built-in multi-frequency sonde transmitting at 512Hz, 640Hz, or 33kHz, allowing operators to locate the exact position and depth using a receiver.

What are the storage and file-sharing capabilities of the control module?

The control console features dual USB ports, an SD card slot, an internal solid-state drive, and integrated Wi-Fi to direct-stream videos and images to the vCam Mobile app.

What type of pushrod cable is used on the mini reel?

The system is equipped with a specialised, flexible pushrod cable designed to navigate multiple tight 90-degree elbows and sweeps found in small-diameter indoor plumbing.

How long can you run the system on its internal battery?

The lightweight control unit includes a built-in rechargeable Lithium-ion battery pack that provides up to 7 hours of continuous visual inspection work on site.
