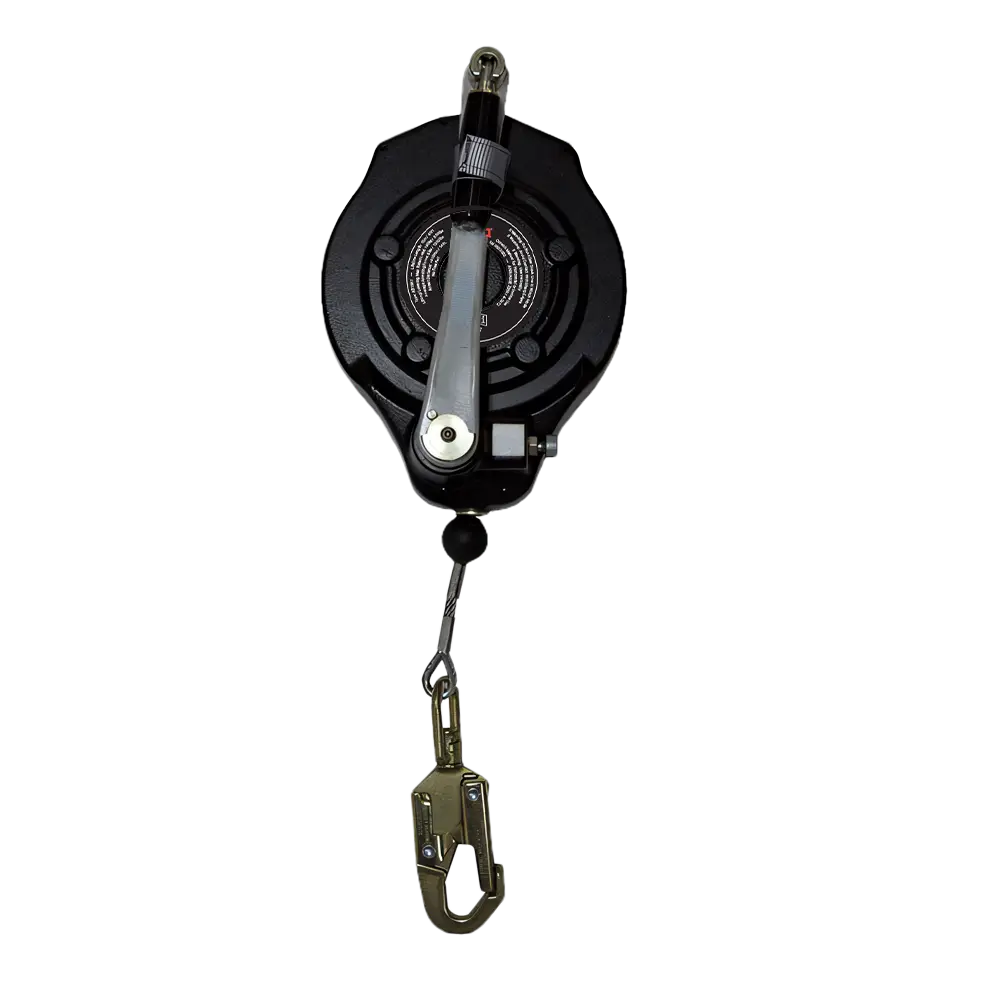

Abtech 15m Fall Arrest Block

This 15m self-retracting lifeline features a 5mm galvanised steel cable housed in a rugged casing, designed specifically for integration into confined space kits. It offers immediate brake engagement upon fall detection and supports users up to 150kg, ensuring dependable protection in high-risk industrial environments.

15m Retractable Cable: Utilizes a high-strength 5mm galvanized steel line to provide a wide working radius while maintaining constant tension.
150kg Weight Capacity: Engineered to support a maximum user weight of 150kg, accommodating workers with full tool kits and equipment.
Controlled Deceleration: Features an automatic braking system that engages during a fall to ensure a smooth, injury-preventinSTOP.
Swivel Anchor Point: Includes a top-mounted swivel eye that reduces cable twisting and improves alignment with the anchor point.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

RGH5 Harness

Abtech 30m Personnel Winch

Abtech TO3 Tripod

Full Description

Integrated Confined Space Safety The Abtech TORQ 15m Fall Arrest Block is a cornerstone of safe confined space operations, often paired with the T3 Tripod or Davit systems. When used as part of a complete access kit, it provides a secure work zone by allowing the retractable lifeline to move freely with the user. In the event of a slip or fall, the internal centrifugal brake activates instantly, arresting the descent with a controlled deceleration force that protects the wearer from serious impact. A key advantage of the AB15RT model within a confined space kit is the integrated winch mechanism, which conforms to both EN360 and EN1496 standards. This allows a "top man" or safety supervisor to take immediate control following a fall, manually raising or lowering the worker to a safe area without the need for additional complex rescue rigs. The inclusion of a swivel anchor eye at the top of the unit further enhances safety by preventing the cable from twisting, ensuring smooth operation during critical rescue maneuvers. Constructed with a 15m galvanised steel wire rope, this device is engineered to withstand the demanding conditions of utilities, civil engineering, and industrial maintenance. Its robust yet manageable design makes it easy to transport and mount onto various anchorage points. Regular maintenance is simplified with a recommended 12-month service interval, ensuring that this vital piece of your safety kit remains compliant and ready for deployment on every site.

FAQs

What is the primary function of the ABR15RT in a confined space kit?

The ABR15RT is a “two-in-one” device. Primarily, it acts as a Fall Arrester, allowing a worker to move up and down a ladder or manhole with a self-retracting lifeline that stops a fall instantly. If the worker becomes incapacitated, the integrated winch is engaged to safely crank them back to the surface.

How does the “Retrieval” function differ from a standard winch?

A standard winch is for lowering and raising only. The ABR15RT is a Rescue Winch that stays in “Fall Arrest” mode (passive) during normal operation. It is only switched to “Winch” mode (active) in an emergency, giving workers freedom of movement with the security of a mechanical hoist backup.

Why is the “Bracket” included as part of the kit?

The bracket is the critical interface that allows the ABR15RT to be securely side-mounted to the Abtech TO3 Tripod leg. This positioning is ergonomic for the supervisor, allowing them to operate the rescue handle comfortably while maintaining a clear view of the worker inside the confined space.

What is the weight limit and cable length of the ABR15RT?

The unit features 15 metres of high-grade galvanized steel cable and is rated for a maximum user weight of 150kg. This capacity is ample for the vast majority of UK site workers, even when wearing full PPE, heavy boots, and a 4-gas monitor.

How does the “Shock Absorber” mechanism protect the worker?

In the event of a fall, the internal braking system and shock absorber limit the forces exerted on the user’s body to less than 6kN. This vital safety standard prevents internal injuries during a sudden arrest, ensuring the worker remains in the best possible condition for retrieval.

Is this unit compatible with any tripod?

While specifically designed for the Abtech TO3 Tripod, the universal nature of the bracket system makes it the standard choice for most UK confined space kits. When sourced from PQS Survey, we ensure the bracket is perfectly matched to the tripod for a “plug-and-play” setup.

How does the ABR15RT tripod help meet UK safety regulations?

The Confined Spaces Regulations 1997 require “suitable and sufficient arrangements for rescue.” The ABR15RT fulfils this by providing a mechanical means of rescue that does not require the rescuer to enter the danger zone, ensuring a safe system of work.

Can I perform a visual check of the unit in the site office?

Yes. The unit features a fall indicator on the swivel hook. If the unit has been involved in a fall, the indicator shows red. This allows site managers to perform a 10-second inspection in the office or store before issue, ensuring no compromised equipment is used.
