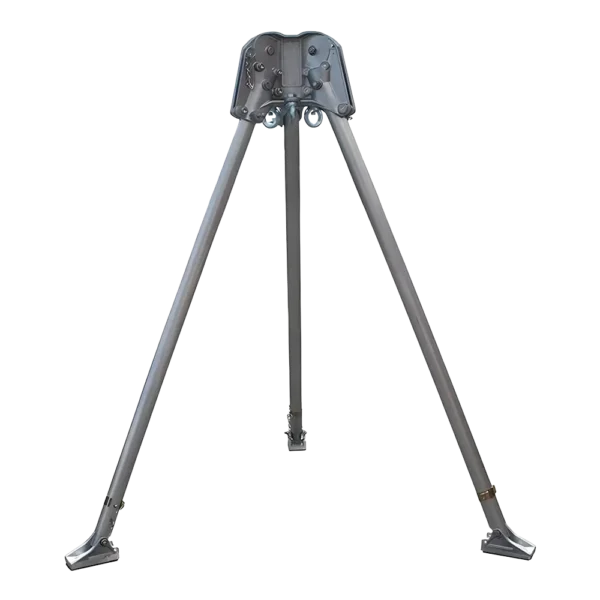

Abtech TO3 Tripod

The Abtech TO3 Tripod is a lightweight, high-strength aluminum anchorage point designed for rapid deployment in confined space kits. It features adjustable telescopic legs, six integrated anchor points, and a 250kg safe working load, making it the industry standard for safe vertical entry and rescue.

Two-Person Rating: Certified as a robust anchorage point capable of supporting up to two users for specialised rescue and entry operations.
Six Integrated Anchor Points: Features three high-strength overhead pulleys and three fixed underslung eyebolts for maximum configuration flexibility.
Adjustable Telescopic Legs: Allow for individual height adjustment from 1.4m to 2.4m to ensure stability on uneven or sloping ground.
Lightweight Aluminum Construction: Weighing only 19.4kg, the high-tensile alloy frame is easy to transport while maintaining a 250kg safe working load.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

G-Force LB Series Rope Restraint Lanyard

RGH5 Harness

Abtech 30m Personnel Winch

Full Description

The Abtech TO3 Tripod (T3) serves as the primary anchorage foundation for professional confined space entry and emergency recovery systems. Engineered from high-grade aluminum alloy, this portable unit is light enough to be carried and set up by a single operator while maintaining the structural integrity required for heavy-duty industrial use. It is fully certified to EN795 Type B standards and offers a safe working load of 250kg, which provides the capacity to support two people simultaneously during complex rescue scenarios. Designed for maximum flexibility on uneven site ground, the tripod features telescopic legs that can be adjusted to provide a height range between 1.4m and 2.4m. The specialised head design includes three overhead pulleys for smooth cable management and three underslung eyebolts for additional safety attachments. These features allow the tripod to be seamlessly integrated with fall arrest blocks and personnel winches, ensuring that your kit is prepared for both standard access and rapid casualty retrieval. Durability is a core feature of the TO3, which offers a 10-year lifespan when maintained with the recommended 12-month service intervals. Its compact folded size and manageable weight make it a practical choice for utility teams and civil engineering contractors who require a reliable, versatile anchor for manholes, shafts, and other deep inspection points.

FAQs

What makes the Abtech TO3 the preferred choice for UK construction sites?

The TO3 balances portability and strength, weighing only 19.4kg while supporting a 200kg safe working load. Its three-way head allows multiple attachments, such as winches and fall arrest blocks, to be used simultaneously, making it ideal for diverse site requirements.

How many anchor points does the TO3 have?

The tripod features three overhead pulley anchor points. These allow you to run cables for retrieval winches, secondary safety lines, or work lights. Integrated pulleys eliminate the need for extra components, significantly speeding up the on-site equipment setup.

Can the height of the tripod be adjusted for uneven ground?

Yes, the legs have six height settings ranging from 1.4 metres to 2.4 metres. This adjustability is essential for UK sites with uneven or sloped terrain, allowing the supervisor to level the tripod head perfectly over the confined space opening.

Are there any safety features on the feet to prevent slipping?

The TO3 features heavy-duty rubber-soled feet for grip on hard surfaces and spiked edges for bedding into softer ground. A safety chain or webbing strap is also provided to link the legs, preventing them from splaying under heavy loads.

How does the TO3 help with UK safety compliance?

The TO3 is certified to EN795 Type B and meets LOLER requirements, fulfilling the “suitable and sufficient” anchor point mandate of the Confined Spaces Regulations 1997. Using this certified equipment ensures your project meets HSE requirements for a safe system of work.

What is the “mounting bracket” used for?

The legs accept a universal bracket for the Abtech ABR15RT recovery block or man-riding winches. This allows the winch to be side-mounted at a comfortable waist-height, ensuring the operator can crank the handle efficiently during routine work or emergency rescue.

Is it easy to transport and store?

When folded, the TO3 is compact enough for standard site vans or office storage racks. It requires no tools for assembly, utilizing simple detent pins to lock the legs, which allows for deployment from the vehicle to the workspace in under two minutes.

How often does the tripod need to be inspected?

Under LOLER, equipment used for lifting people must undergo a thorough examination every 6 months. This inspection covers the head, pins, and locking mechanisms. PQS Survey Ltd tracks these dates to ensure your equipment remains certified and safe for use.

How does a reliable tripod prevent project delays?

An uncertified or damaged tripod can halt a project, as entry permits cannot be signed without valid equipment. Sourcing an Abtech TO3 from PQS Survey Ltd ensures you receive a fully inspected and certified unit, preventing any delays to your project schedule.

Can PQS Survey Ltd hire, service, and inspect my Abtech TO3?

Yes, we offer the TO3 for short and long-term hire as part of our safety kits. As an authorized service centre, we perform mandatory 6-monthly LOLER inspections and repairs. Our nationwide depots allow us to provide replacements quickly to keep your site operational.
