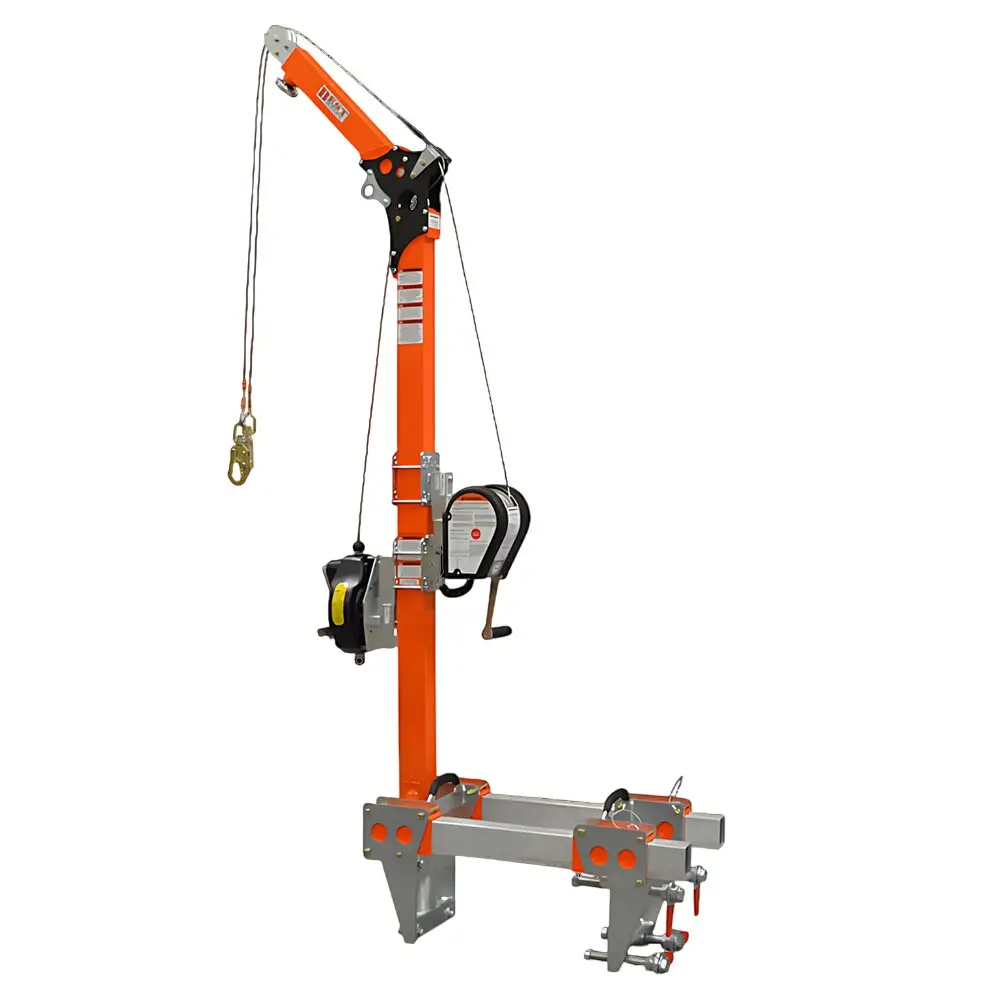

Adjustable Barrel Mount Davit System

This versatile assembly is the ultimate “one-size-fits-all” solution, adjusting to fit structural walls from 57mm to 635mm. It is ideal for contractors moving between diverse shoring systems, offering a portable and compliant anchorage point for confined space rescue.

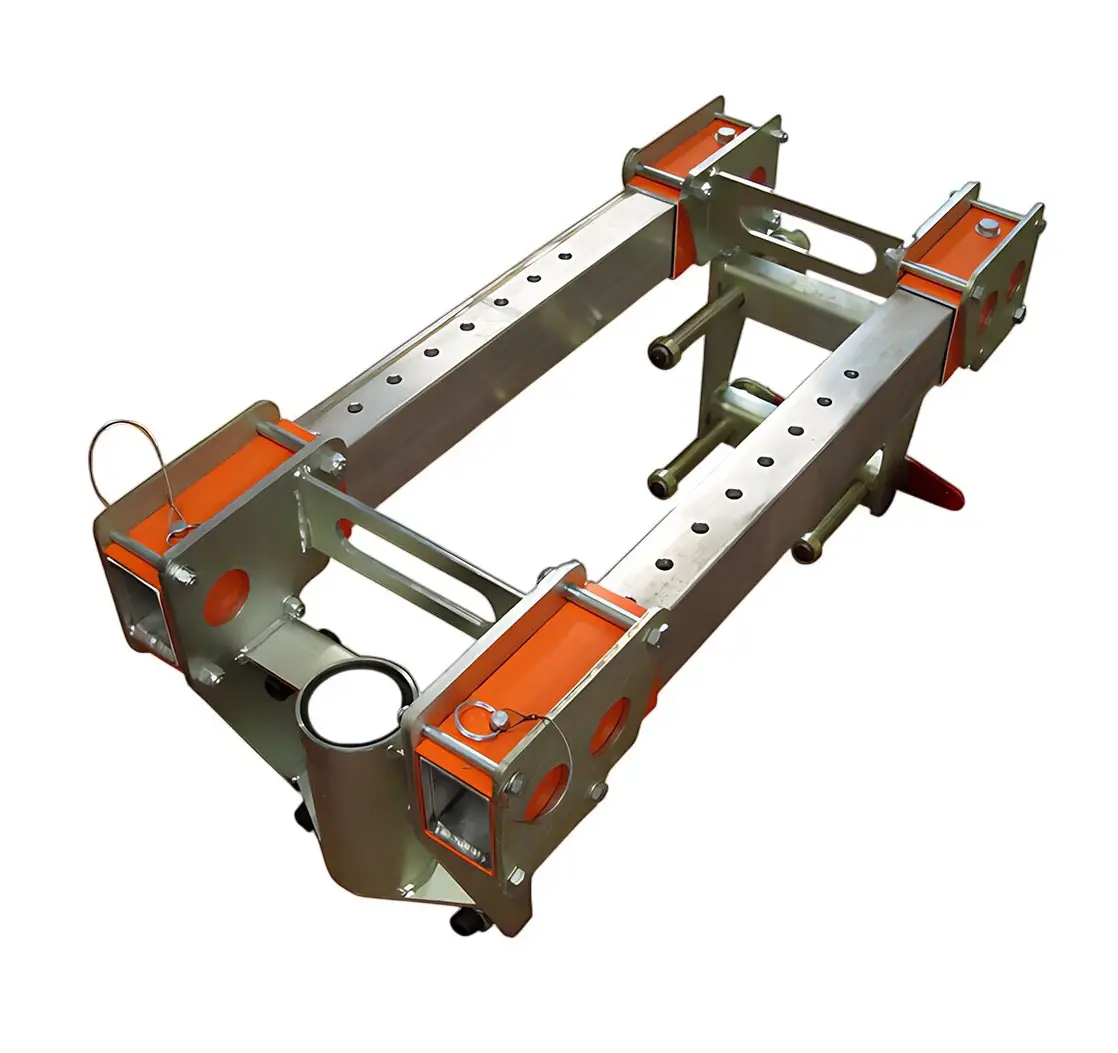

  • Massive 635mm Range – The 30029 base adjusts to fit everything from thin plates to thick reinforced concrete walls.
  • High-Clearance Reach – The “Large” Pro-3 configuration clears high obstacles and provides a significant horizontal offset.
  • Tool-Free Adjustment – Features a simple screw-down handle and pin system for fast installation on-site.
  • Full Safety Compliance – Certified to BS EN 795 Type B, EN 360, and EN 1496 for peace of mind.
  • Modular Portability – Every component is designed for manual handling, making it easy to relocate across large sites.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Slix 100 Rescue Stretcher

Slix 100 Rescue Stretcher

Enquire
Abtech 30m Personnel Winch

Abtech 30m Personnel Winch

Enquire
Abtech 15m Fall Arrest Block

Abtech 15m Fall Arrest Block

Enquire

FAQs

Adjustable Barrel Mount Davit System
What is the adjustment range of the 30029 base?
The adjustable mount can be set to any width between 57mm and 635mm, which is approximately 2 to 25 inches.
Adjustable Barrel Mount Davit System
Is this assembly suitable for concrete parapets?
Yes, the wide adjustment range makes it perfect for tank edges, parapets, and various structural ledges.
Adjustable Barrel Mount Davit System
How many winches can be mounted at once?
The Pro-3 arm allows for the simultaneous mounting of a primary man-riding winch and a secondary safety block.
Adjustable Barrel Mount Davit System
Is the adjustable base heavier than the fixed version?
Yes, the 30029 base weighs approximately 26kg to account for the heavy-duty telescopic adjustment mechanism.
Adjustable Barrel Mount Davit System
Can I use this on a curved tank wall?
The mount is designed for straight-edged structures; please contact PQS Survey Ltd for advice on curved applications.
Adjustable Barrel Mount Davit System
Does it come with the required brackets?
When hired or sold as a complete kit, we include the necessary Tuff-Klik brackets for your chosen winches.
Adjustable Barrel Mount Davit System
What maintenance does the adjustable mechanism need?
The screw-thread should be kept clean and lightly lubricated to ensure smooth adjustment in grit and mud.
Adjustable Barrel Mount Davit System
Does the 30109 mast fit the adjustable base?
Yes, the 30109 lower mast is perfectly compatible with the socket on the 30029 adjustable mount.
Adjustable Barrel Mount Davit System
Is it rated for 2-person rescue?
The system is typically rated for a single user (140kg), but certain configurations support 2-person emergency rescue.
Adjustable Barrel Mount Davit System
Can I buy just the adjustable base?
Yes, PQS Survey Ltd sells or hires the base separately or as part of this high-clearance assembly.
