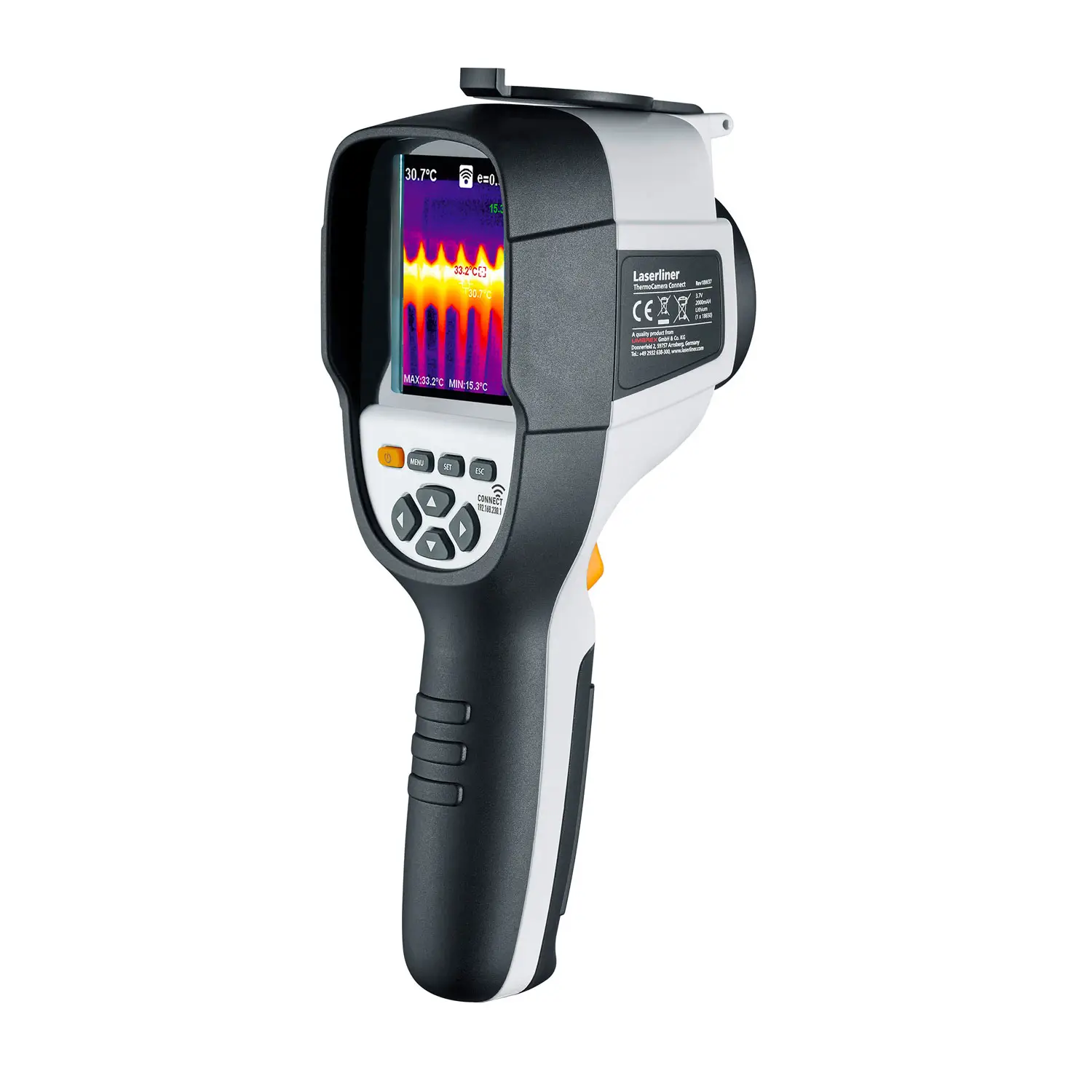

Laserliner ThermoCamera Connect

The Laserliner ThermoCamera Connect is a high-resolution thermal imaging camera designed for building diagnostics, electrical inspections, and HVAC testing. Featuring a 220 x 160 pixel infrared sensor, Wi-Fi connectivity, and a 3.2-inch color display, it provides rapid, detailed heat distribution analysis on site.

High Resolution Thermal Sensor: Utilizes a crisp 220 x 160 pixel infrared detector matrix to deliver sharp, detailed thermal images for precise diagnostic plotting.
Custom Infrared Image Blending: Combines real-world digital photography with underlying thermal mapping data to let operators adjust the visual transparency overlay.
Integrated Wi-Fi Connectivity Interface: Links wirelessly to smartphones and tablet hardware to allow instant image transmission and streamlined field reporting workflows.
Versatile Material Emissivity Selection: Features a fully adjustable emissivity scale to calibrate the sensor accurately for reflective metals or rough masonry surfaces.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Kolectric MC8022 Covermeter

MCL100 Metal Detector

Laserliner VideoFlex HD Borescope

Full Description

The Laserliner ThermoCamera Connect is an advanced, high-resolution thermographic instrument engineered for building contractors, energy consultants, and maintenance technicians. Equipped with a premium 220 x 160 pixel infrared sensor, this compact handheld camera captures highly detailed thermal profiles to identify structural heat loss, thermal bridging, localized dampness, and overheating components. The real-time thermographic data is rendered cleanly on a large 3.2-inch color display, enabling operators to run fast, non-destructive diagnostic assessments across commercial and residential infrastructures. To maximize structural diagnostic accuracy, the camera integrates custom image-blending capabilities, allowing users to overlay thermal maps directly onto standard digital photos to create a clear real-world reference. The device utilizes an adjustable emissivity range to ensure precise surface temperature compensation across varying construction materials like brick, concrete, and copper wiring. Built for modern field workflows, the unit features built-in Wi-Fi communication, enabling operators to stream live thermal analysis profiles directly to mobile devices or upload saved thermograms instantly for rapid client reporting.

FAQs

Is it possible to adjust the emissivity for different materials?

Yes, you can manually input or select pre-set emissivity values from the menu to ensure accurate temperature readings on specific surfaces like wood, PVC, or bare metal.

What is the infrared sensor resolution of this camera?

The ThermoCamera Connect features a high-performance 220 x 160 pixel infrared sensor, providing exceptional detail and clarity compared to legacy entry-level thermal imagers.

Can I view a standard photograph alongside the thermal map?

Yes, the unit features custom image-blending technology, allowing you to combine the infrared thermal frame with a standard digital photograph at various transparency levels.

What type of screen is integrated into the chassis?

The device features a large, front-facing 3.2-inch high-resolution color TFT display that provides real-time, clear visual feedback even in low-light site environments.

Is the Laserliner ThermoCamera Connect available to hire?

Yes, this thermal imaging camera is fully available within our hire fleet for short-term and long-term rental, providing a cost-effective way to utilize premium thermographic technology for seasonal building audits or specific electrical inspections.

How are the captured site images saved on the camera?

Images are captured and stored internally as standard files on an interchangeable micro SD card, making it incredibly simple to transfer data directly to your PC.

What temperature measurement range does this tool cover?

The camera is designed to evaluate surface thermal profiles across typical building diagnostic bounds, measuring temperatures accurately from -20°C up to +250°C.

How does the wireless data transfer function operate?

The camera incorporates a built-in Wi-Fi interface that connects directly to your mobile devices, allowing you to transfer saved images or stream live measurements for instant analysis.

Does this camera include automated hot and cold spot tracking?

Yes, the internal software automatically identifies and places dynamic target crosshairs over the absolute hottest and coldest points visible within the current frame.

What power source does the ThermoCamera Connect use?

The unit is powered by an internal, high-capacity rechargeable lithium-ion battery pack, which can be easily topped up via a standard USB charging port.
