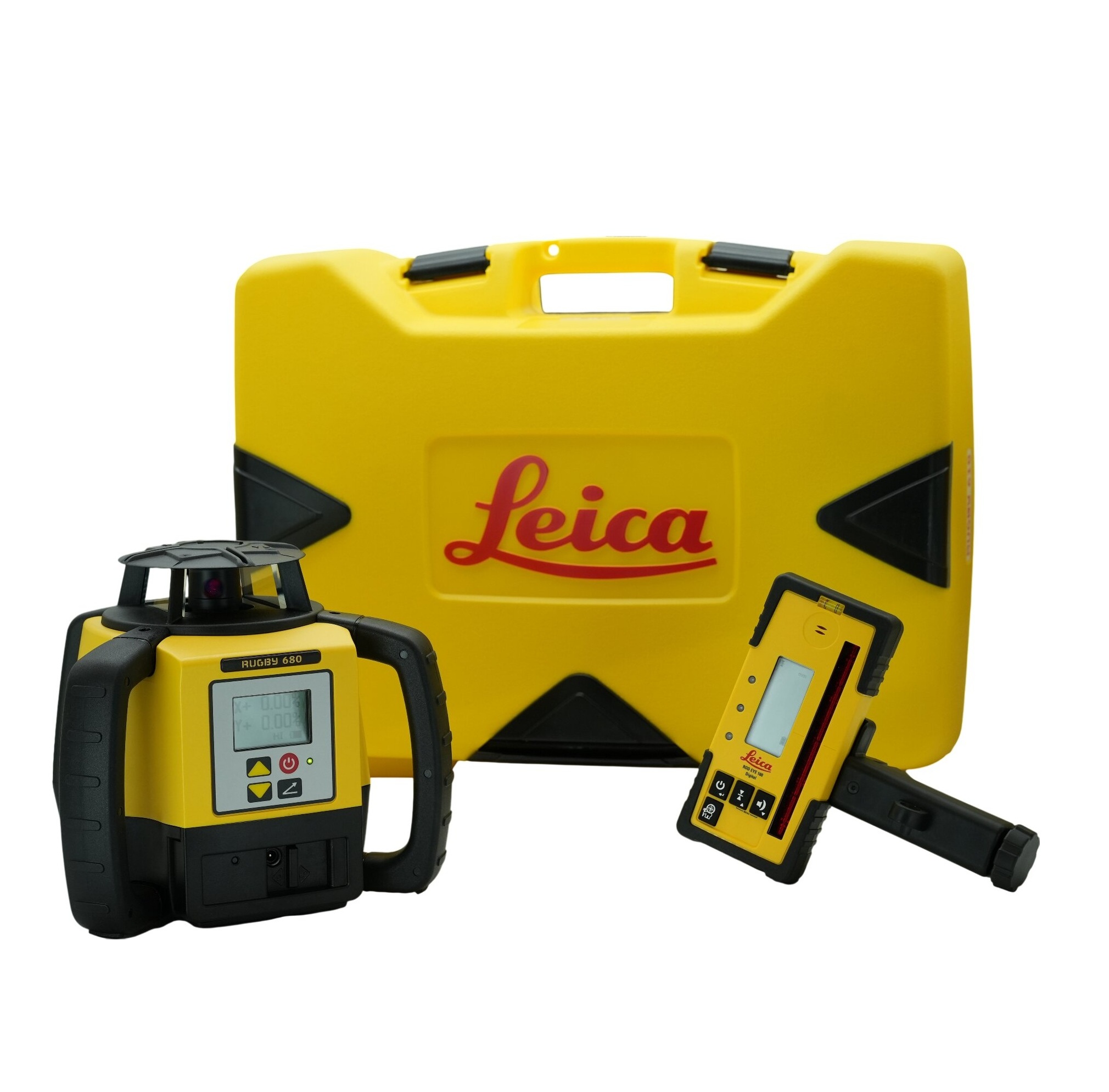

Leica Rugby 680

The Leica Rugby 680 is a semi-automatic dual-grade laser designed for digital precision and site speed. Ideal for UK contractors managing foundations, drainage, and landscaping, it features a simple dial-in grade interface and rugged IP67 protection to ensure millimetre-perfect accuracy in the toughest construction environments.

Dual-Axis Digital Grade allows users to effortlessly dial in slopes up to +/- 8% in both X and Y axes for versatile site grading and precise drainage falls.
Smart Slope Monitoring automatically compensates for temperature and time fluctuations to ensure millimetre-level accuracy across the full working day.
Rugged IP67 Durability ensures the unit is fully protected against water and dust ingress while featuring rubber-moulded handles for maximum site resilience.
Extended Run-Time provides over 40 hours of continuous operation with the Li-Ion rechargeable battery pack to minimize downtime on busy sites.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

5m 5 Section Aluminium Levelling Staff

Promax Heavy Duty Fiberglass Survey Tripod

Leica Rugby 620

Full Description

The Leica Rugby 680 brings digital efficiency to general construction levelling and grading. As a semi-automatic dual-grade laser, it allows contractors to perform complex slope applications without the manual errors associated with traditional tilt-head lasers. By using the high-contrast LCD and intuitive four-button menu, users can "dial in" precise gradients across two axes, significantly increasing productivity for groundworks and civil engineering teams. Built for the rigours of the UK job site, the Rugby 680 is housed in a high-impact casing and is fully sealed to IP67 standards-making it dust-tight and waterproof. A key advantage for site managers is the integrated Smart Slope function; this technology continuously monitors time and temperature fluctuations throughout the day, automatically adjusting the laser to maintain absolute accuracy. Whether you are pouring concrete pads, setting drainage falls, or establishing piling platforms, the Rugby 680 provides the reliable, professional-grade performance required for modern infrastructure projects.

FAQs

Can I hire the Leica Rugby 680 or have my own unit serviced at PQS Survey?

Yes, we offer flexible hire rates for the Rugby 680 across our UK depots and provide full recalibration and repair services in our specialist workshops to keep your equipment site-ready.

What is the difference between a manual slope laser and the Rugby 680?

The Rugby 680 is semi-automatic. Instead of manually tilting the laser, you enter the exact grade percentage on the digital display for consistent, error-free results.

What is the maximum grade the Leica Rugby 680 can achieve?

The unit allows for a dual-grade range of +/-8% in both the X and Y axes simultaneously.

Does the Rugby 680 support vertical self-levelling?

No, this model is specifically for horizontal levelling and dual-axis grading. For vertical alignment, we recommend the Leica Rugby 640.

How does the Smart Slope function benefit my site?

It acts as a digital safeguard, adjusting the laser to compensate for thermal expansion or minor shifts throughout the day, keeping your beam locked on the correct grade.

Is the laser beam visible for indoor applications?

Yes, it uses a Class 2 visible red laser. However, for outdoor groundworks or long distances, a Leica Rod Eye receiver is always recommended.

What is the maximum working range of the unit?

When paired with a professional receiver like the Rod Eye 160, the Rugby 680 offers a working diameter of up to 800m.

Is the Leica Rugby 680 fully waterproof for UK weather?

It carries an IP67 rating, meaning it is completely dust-tight and can withstand heavy rain or temporary submersion in site puddles.

Can I charge the laser while it is still in use?

Yes, the Li-Ion battery pack supports run-charge functionality, allowing you to power the unit from a mains or 12V source while it remains operational.

What happens if the laser is knocked or disturbed during work?

The unit features an H.I. Alert. It will stop rotating and sound an alarm if disturbed, preventing inaccurate readings after a bump.
