Long Reach Davit Arm System
Long Reach Davit Arm System - Image 2

Long Reach Davit Arm System

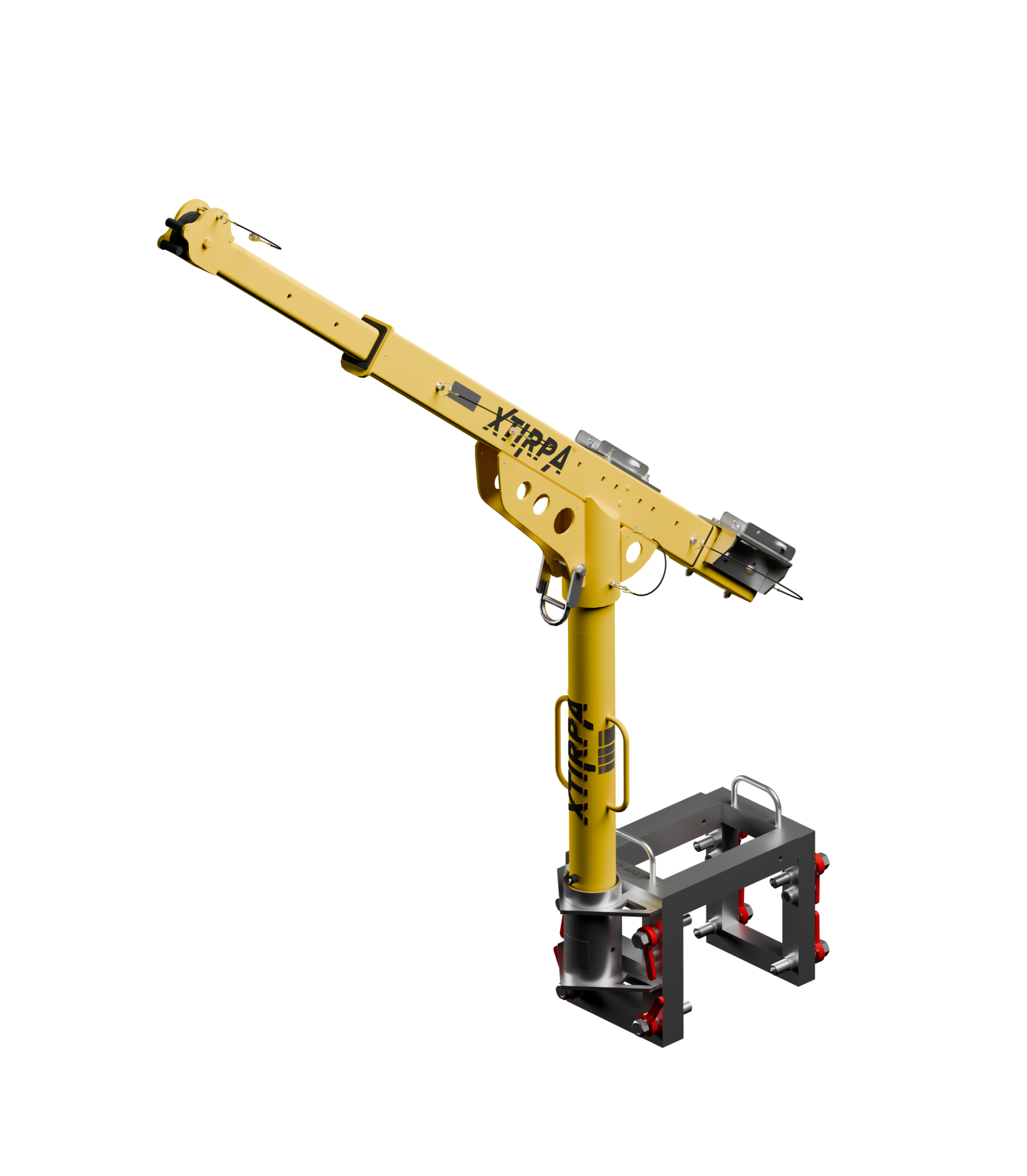

The Globestock 1200mm long reach davit arm system provides dependable fall protection and confined space retrieval. Combining the IN2237 extendable aluminium arm with the IN2380 adjustable wall clamp base, this portable system secures firmly to structures without drilling and offers a full 360 degree operating radius for maximum safety.

  • Extendable Aluminium Davit Arm – The IN2237 arm adjusts between 762mm and 1219mm reach with three intermediate pin lock positions to adapt to varying manhole and edge distances.

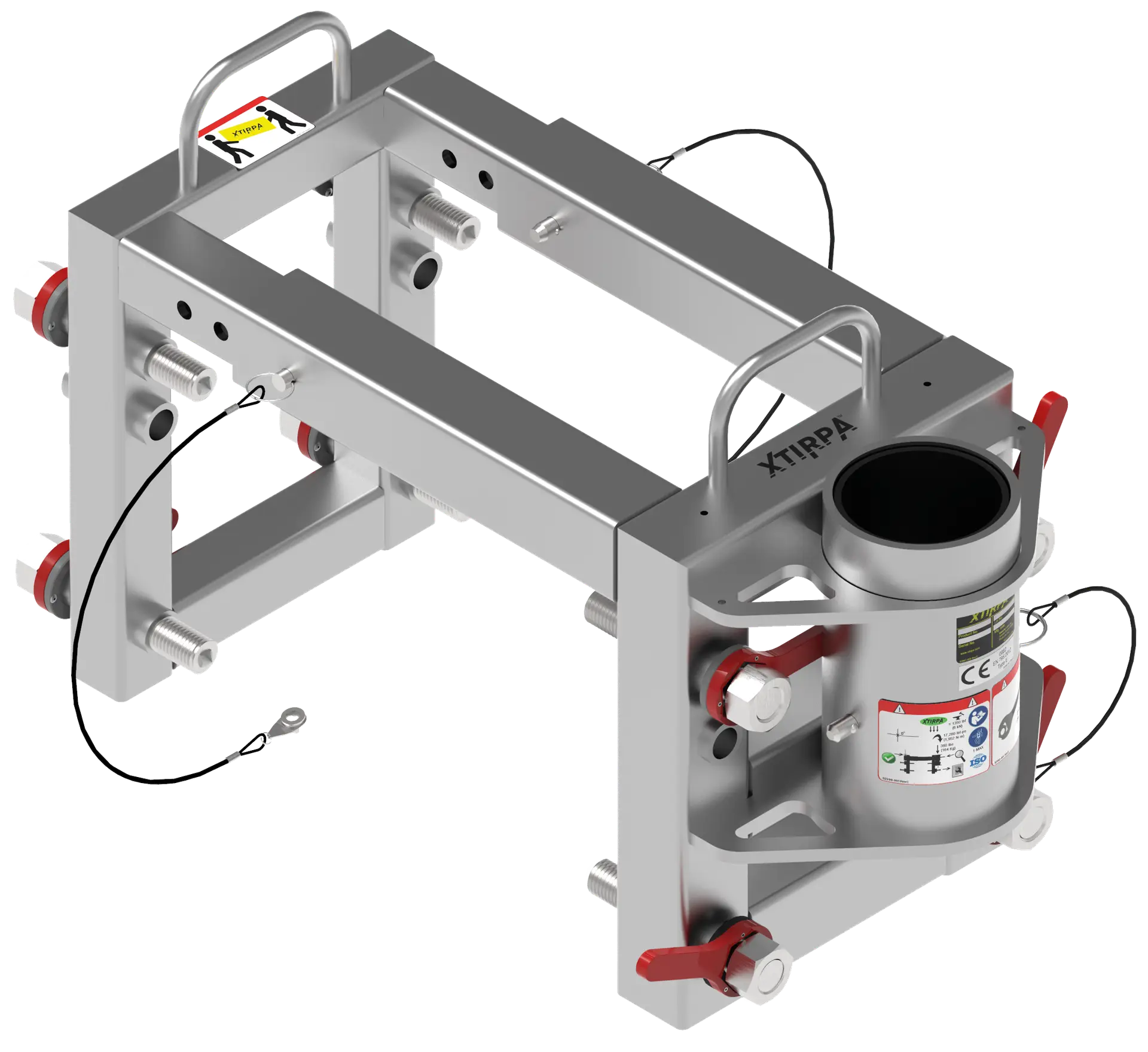

  • Heavy Duty Wall Clamp Base – The IN2380 zinc plated steel base adjusts to fit structure walls from 254mm to 432mm thick for reliable temporary anchorage without drilling.
  • Complete 360 Degree Rotation – Engineered to pivot smoothly in a full circle while under load, enabling effortless personnel positioning and safe recovery maneuvers outside the hazard zone.
  • Multi Certification Compliance – Meets or exceeds strict global safety requirements including EN795, OSHA, and ANSI standards with a certified maximum working load of 164kg.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

  • Download Product User Guide (PDF)

Adding one of these to your enquiry?

Globestock 20m Personnel Winch

Globestock 20m Personnel Winch

Enquire
Globestock G.Saver II 34m

Globestock G.Saver II 34m

Enquire
MSA ALTAIR 4XR

MSA ALTAIR 4XR

Enquire

FAQs

Long Reach Davit Arm System
What is the maximum outreach of the IN2237 davit arm?
The extendable arm offers an outreach ranging from 762mm at its minimum setting up to 1219mm at its full extension.
Long Reach Davit Arm System
Are any tools required to assemble the mast and arm components?
No tools are needed because the system utilizes quick release detent pins to connect and lock the lightweight components together in minutes.
Long Reach Davit Arm System
What materials are used to construct the system components?
The IN2237 extendable davit arm is built from lightweight powder coated aluminium while the rugged IN2380 clamp base is made from durable zinc plated steel.
Long Reach Davit Arm System
What wall thicknesses can the IN2380 clamp base accommodate?
The adjustable zinc plated steel wall clamp base is designed to secure firmly onto structures or shoring walls ranging from 254mm to 432mm thick.
Long Reach Davit Arm System
Can I hire the Globestock 1200mm davit arm system from PQS Survey?
Yes, this complete davit system is available for short term or long term fleet hire across our regional depot network with rapid delivery options.
Long Reach Davit Arm System
Does the davit system allow full rotation when installed?
Yes, the system provides a full 360 degree operating radius to ensure users can safely swing personnel away from the edge during retrieval operations.
Long Reach Davit Arm System
What safety standards does this davit equipment comply with?
The entire assembly meets or exceeds stringent safety compliance guidelines including EN795, OSHA, ANSI, and CSA certifications.
Long Reach Davit Arm System
Can this system be used for fall arrest as well as rescue winching?
Yes, the arm is equipped with dedicated anchor points suitable for fall arrest blocks, recovery winches, and retrieval lifelines.
Long Reach Davit Arm System
How heavy are the individual components to transport on site?
The lightweight aluminium davit arm weighs 23kg while the heavy duty adjustable wall clamp base weighs 49kg for robust stability.
