Portable Counterweight Davit System
Portable Counterweight Davit System - Image 2
Portable Counterweight Davit System - Image 3
Portable Counterweight Davit System - Image 4

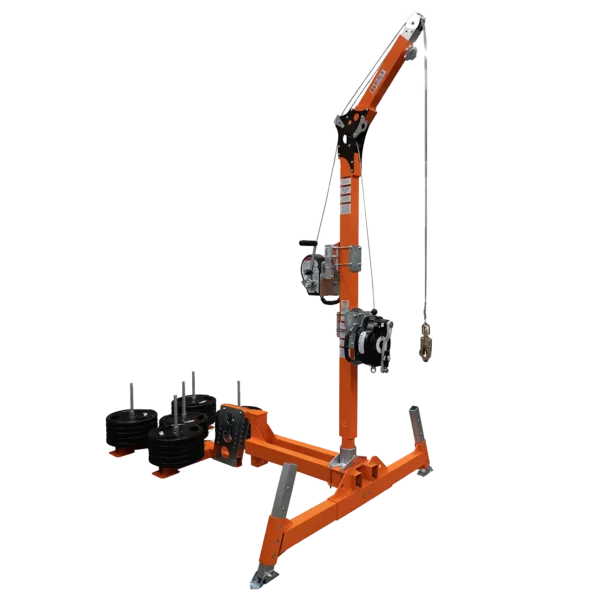

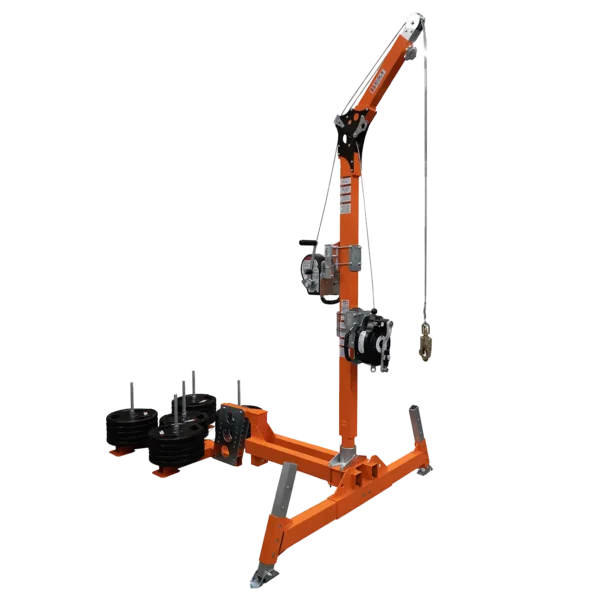

Portable Counterweight Davit System

A non-penetrating anchorage system that requires no floor bolting. This portable assembly uses modular weights to secure the Pro-3 Davit, making it the premier choice for roof-tops, finished surfaces, and areas where ground penetration is strictly prohibited.

  • Non-Damaging Anchor – Provides a secure fall arrest point without the need to drill into the floor or roof.
  • Modular Design – The base and davit break down into small parts, allowing for easy transport through standard doorways.
  • levelling Capability – Includes independently adjustable feet to ensure a vertical mast on uneven or sloped ground.
  • 4:1 Safety Factor – Designed to provide a high safety margin when using the recommended 360kg of counterweights.
  • High-Strength Finish – Coated to withstand outdoor exposure on UK roof-tops and industrial facilities.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Abtech 30m Personnel Winch

Abtech 30m Personnel Winch

Enquire

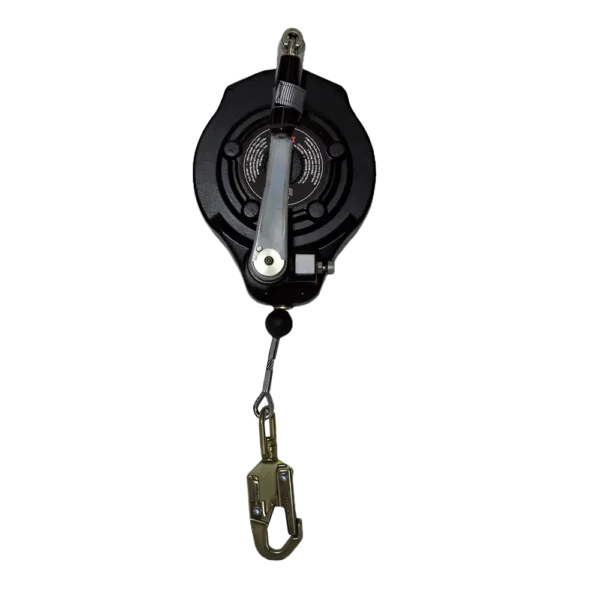

Abtech 15m Fall Arrest Block

Abtech 15m Fall Arrest Block

Enquire

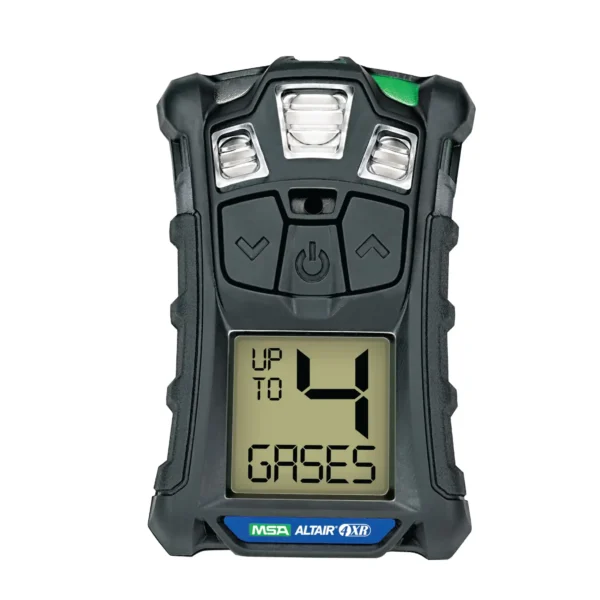

MSA ALTAIR 4XR

MSA ALTAIR 4XR

Enquire

FAQs

Portable Counterweight Davit System
How much counterweight is required?
For a 4:1 safety factor with a single user, 360kg of weight, usually 24 x 15kg plates, is required.
Portable Counterweight Davit System
Do I have to bolt the 30073 base down?
No, the 30073 is a free-standing system held in place solely by the counterweight plates.
Portable Counterweight Davit System
Can this system be used on a roof?
Yes, it is ideal for roof-top access where you cannot penetrate the waterproof membrane.
Portable Counterweight Davit System
Are the weight plates included?
At PQS Survey Ltd, we can supply the base either with or without the required weight plates.
