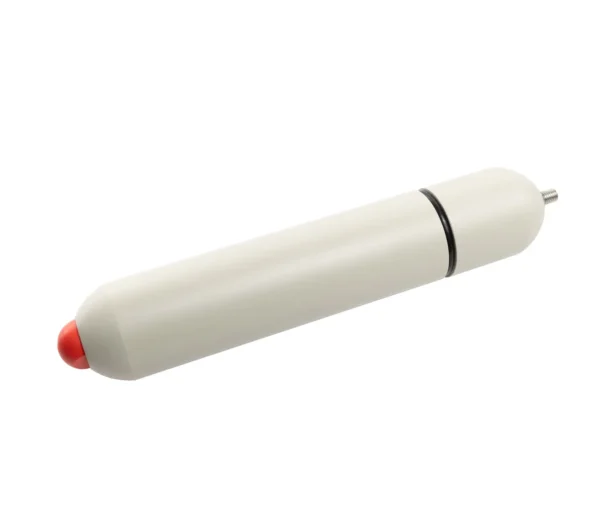

Radiodetection Super Sonde

The Radiodetection Super Sonde is a high-performance 33kHz transmitter with a massive 15-meter (49ft) depth range. Measuring 64mm x 318mm, it is designed for the deepest utility tracing applications. It features a rugged, waterproof construction and is powered by a 9V PP3 battery for maximum signal penetration.

Ultra Depth Penetration Array: Pushes localization signals through up to fifteen meters of solid ground or reinforced floor structures.
Industrial Infrastructure Build: Engineered explicitly for deep civil engineering runs, municipal trunk systems, and tunnel surveys.
Secure Dual-Lock Fittings: Attaches tightly to heavy duty mechanical duct rods to eliminate down-hole disconnect incidents.
Stable Signal Output: Maintains a consistent frequency output even when working in freezing ground or high-temperature lines.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Radiodetection Sewer Sonde

Radiodetection Standard Sonde

Radiodetection Genny 4

Full Description

For groundworkers and drainage contractors facing the most challenging depths, the Super Sonde is the essential solution. Its extended length allows for a significantly larger internal antenna, capable of transmitting a 33kHz signal through up to 15 meters of soil, concrete, or water. This makes it the primary tool for mapping deep-level trunk sewers or verifying the path of directional drilling bores. The unit is built for extreme site conditions, featuring a heavy-duty housing that is waterproof to 2 bar. It comes equipped with a standard M10 male thread, making it compatible with heavy-duty rod systems. Despite its power, the Super Sonde remains easy to use with standard C.A.T4 or RD8200 locators. For professional contractors, it offers the highest level of confidence when working on major infrastructure projects where depth accuracy is critical for safety and project planning.

FAQs

Can we hire this unit for short-term projects?

Yes, the Radiodetection Super Sonde is available for flexible short-term or long-term hire, providing a cost-effective way to track deep underground utilities without purchasing equipment.

What is the primary function of the Radiodetection Super Sonde?

The Super Sonde is a high-powered, battery-operated transmitter designed to trace deep non-metallic pipes, ducts, and sewers, allowing accurate surface tracking and depth tracking with a locator receiver.

What frequency does this sonde transmit?

It transmits a standard 33kHz signal, ensuring full compatibility with precision receivers and cable avoidance tools like the Radiodetection RD8200 or CAT4 series.

How does this model differ from the Standard and Sewer Sondes?

The Super Sonde features a significantly larger, high-output antenna array and a longer body design, specifically engineered to provide maximum signal penetration through deep or shielded ground cover.

What is the maximum depth range of the Super Sonde?

Thanks to its enhanced transmission power, the signal can be accurately detected and depth-measured down to an exceptional 15 metres when paired with a compatible precision locator.

What battery type does it use and how long does it last?

The unit is powered by a cluster of standard alkaline batteries, delivering approximately 20 hours of continuous high-power signal transmission in the field.

How do you push the sonde through deep pipelines or ducts?

It features a heavy-duty M10 male threaded end, allowing it to be securely attached to standard commercial drainage rods, power-push rods, or heavy-duty inspection crawlers.

Is the Super Sonde durable enough for underwater or heavy silt applications?

Yes, it is housed in a heavy-wall, high-impact waterproof casing designed to withstand immense hydrostatic pressure and abrasive conditions inside deep wastewater trunks.

How do you activate the sonde and verify it is working?

The transmitter powers on automatically when the battery cap is fully tightened; you then place your locator nearby in sonde mode to confirm a strong signal.

What post-operation maintenance is required for this heavy-duty unit?

Thoroughly wash the outer housing, inspect the rubber O-ring seal to clear any fine grit or mud from the threads, and remove the batteries before storage.
