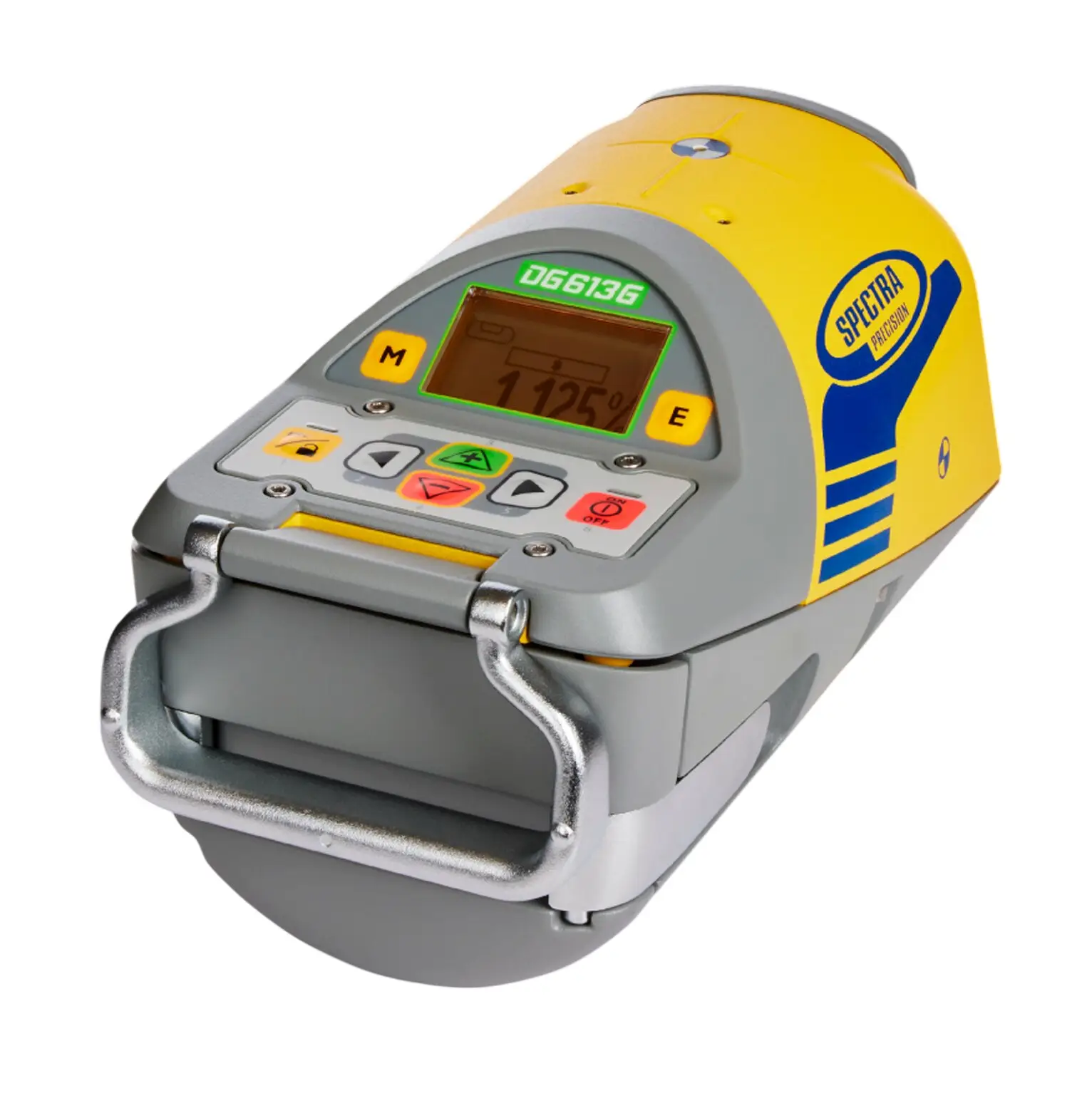

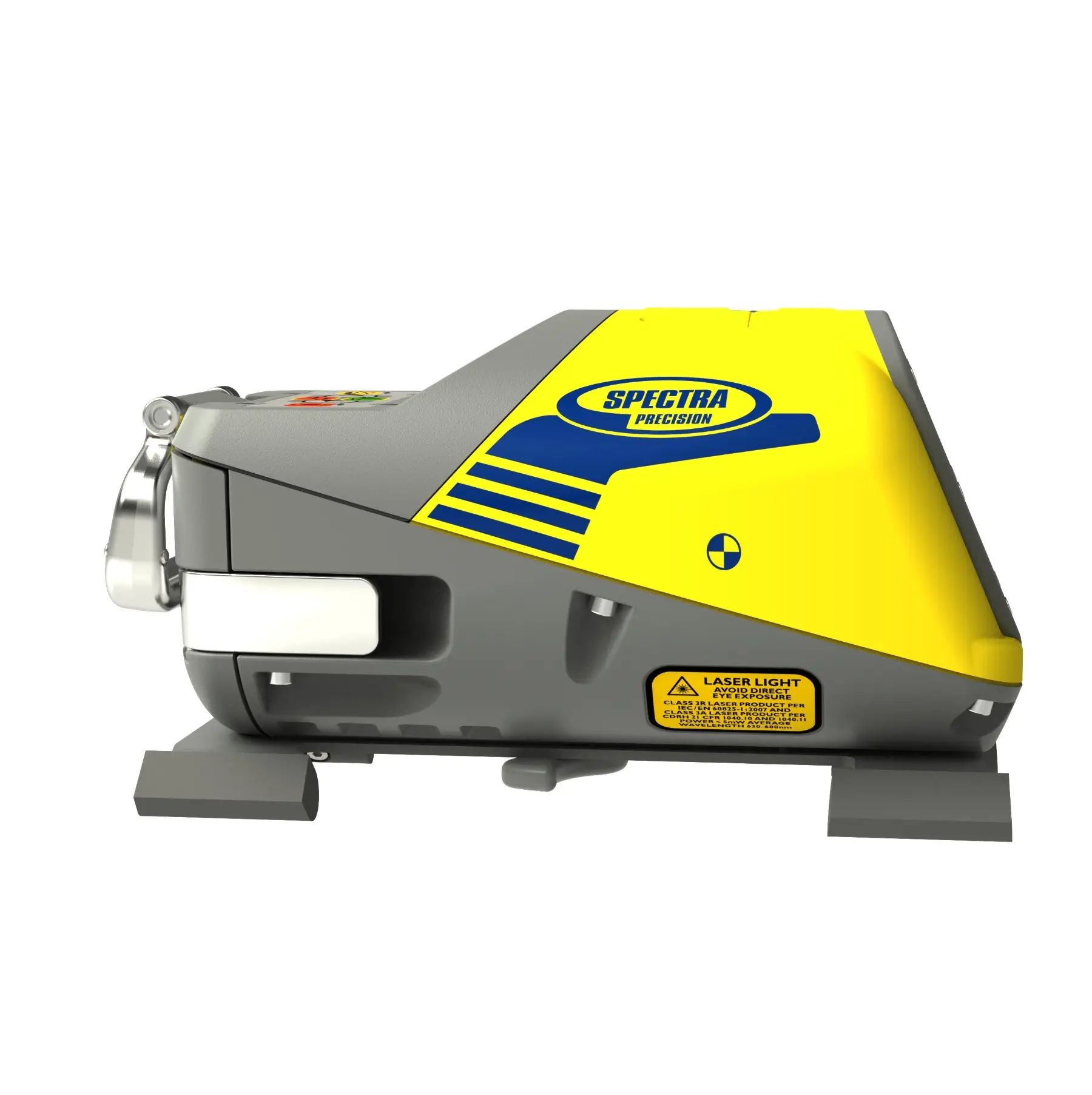

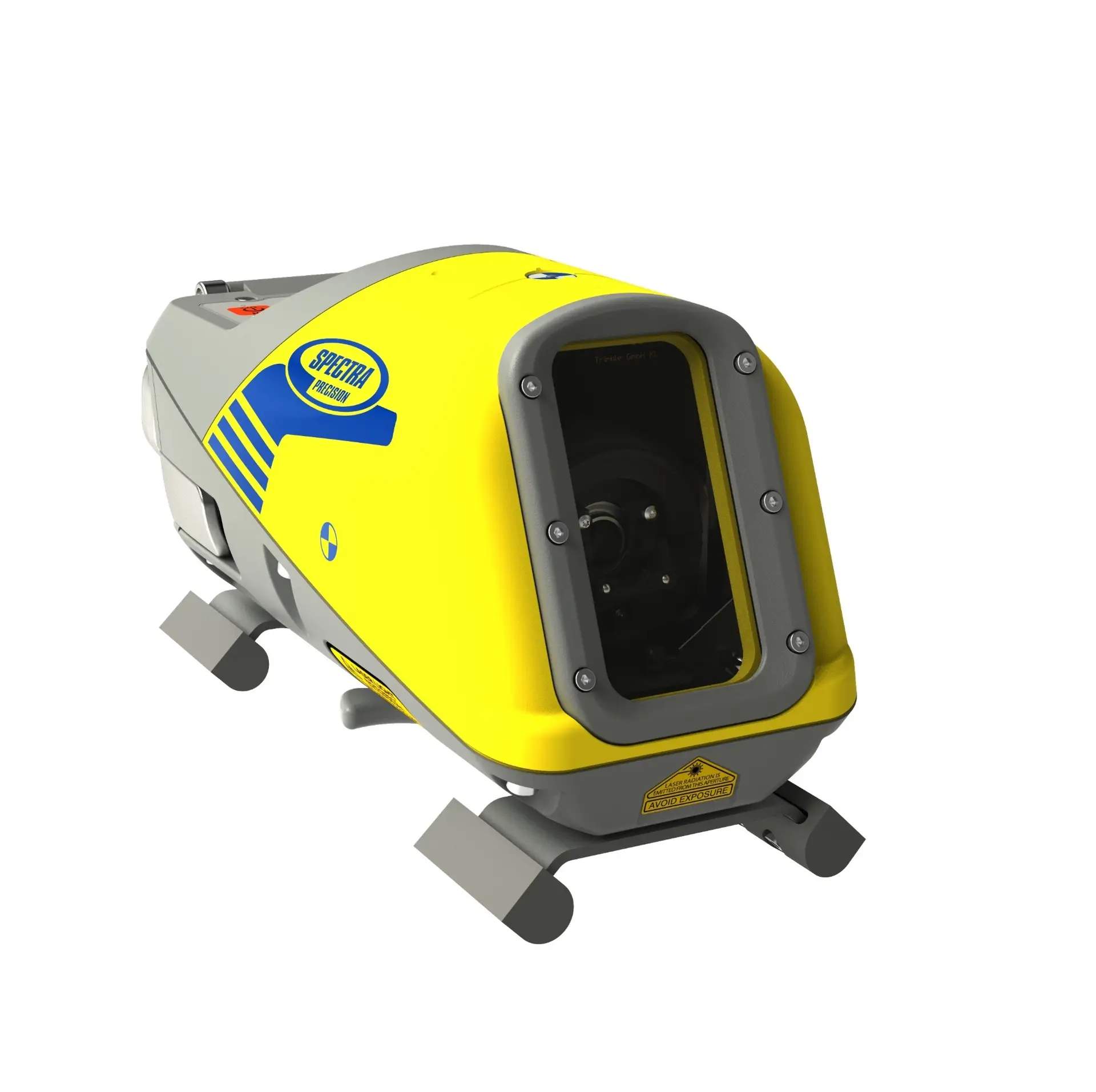

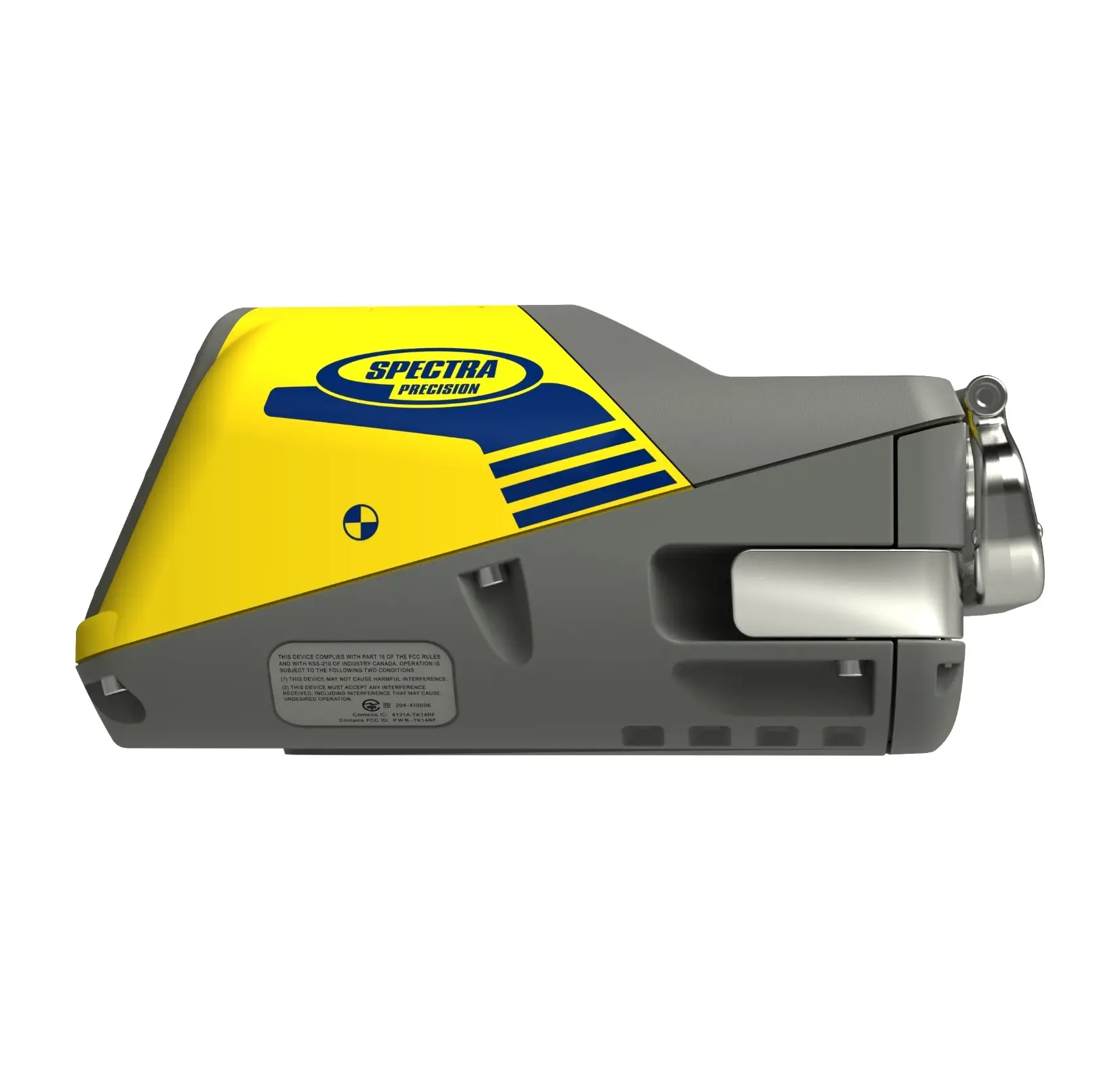

Spectra DG613

The Spectra DG613 is a durable pipe laser engineered for precise alignment of drainage and sewer pipelines. Compact, lightweight, and rugged, it provides reliable slope and line control for contractors and surveyors on civil engineering and groundworks projects.

Ultra-Fast Grade Setup: Features an expansive -12% to +40% self-levelling range to handle steep sanitary and storm sewer runs.
Automatic Cross-Axis Compensation: Eliminates the need for rough levelling; simply place the unit in the pipe and it stabilizes instantly.
Line Alert Safety: The beam flashes to immediately notify the operator if the laser’s position is disturbed, preventing costly grade errors.
IP68 Submersible Build: Fully waterproof and dust-tight, engineered to survive the most arduous trench and manhole environments.
Dual-Communication Remote: The RC803 uses radio for “over-the-top” setups (130m) and infrared for in-pipe adjustments (150m).

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

60m Cobra Reel (6mm/9mm)

Radiodetection gCAT4+

Spectra DG813

Full Description

The Spectra DG613 Pipe Laser is built for construction and civil engineering professionals who need dependable and accurate pipe alignment in both small and medium-scale projects. Its compact and lightweight design makes it easy to transport between sites and ideal for use in tight trenches or confined spaces. Equipped with a high-visibility beam, the DG613 ensures clear sightlines even in bright outdoor conditions, improving setup speed and measurement confidence. Operators can make precise slope adjustments quickly, allowing for consistent grade control along the length of a pipeline. Housed in a rugged, weather-resistant casing, the DG613 withstands dust, moisture, and routine site impacts, making it suitable for year-round operation in challenging civil works environments. Its intuitive control layout reduces setup time, helping teams maintain productivity across multiple pipeline runs. Supplied with a protective carry case, the Spectra DG613 is ideal for trenching, drainage installation, sewer alignment, and general pipework projects. Its combination of portability, durability, and accurate slope control makes it a practical choice for contractors and survey teams needing a reliable, easy-to-use pipe laser on site.

FAQs

What makes the Spectra DG613 ideal for tight site conditions?

The DG613 features a significantly reduced body length of only 25 cm. This compact design is a major advantage for drainage teams, allowing the laser to fit into tight inverts and smaller pre-cast manholes where longer lasers struggle with clearance for a proper setup.

How does the DG613 compare to the Leica Piper 100?

While the Leica Piper 100 is known for its circular “100 mm pipe” fit, the Spectra DG613 is often preferred for its advanced graphical interface and RC803 remote. It offers active features like Line Set-Check and a remote screen that mirrors the laser exactly for more intuitive use.

What is the benefit of “Cross-Axis Compensation” on the DG613?

This feature is a massive time-saver, eliminating the need to perfectly level the laser manually in the pipe. As long as the unit is placed relatively flat, it automatically compensates for side-to-side tilt (roll) to ensure the vertical grade remains 100% accurate.

How does the “Line Set-Check” function work for first-day setups?

This function allows the laser to shoot the beam upwards up to 100% or 45 degrees, enabling alignment to a hub or stake outside the trench. It allows direction to be set quickly from deep, short trenches without moving excavators out of the way to see distant targets.

What is the purpose of the “Line Alert” feature?

Line Alert monitors the setup and causes the beam to flash if the laser is disturbed or bumped by heavy plant machinery. This provides an immediate warning, preventing the team from laying pipes on an incorrect heading and avoiding costly remedial work.

Does the DG613 have a “Line Scan” mode for second-day setups?

Yes. Line Scan allows the beam to sweep quickly left and right until it finds the centre of the target. It is designed to make second-day setups much faster by automatically finding the “bullseye” when the target is placed in the last pipe laid.

What is the main difference between the DG613 and DG813?

The DG813 is the higher tier unit. It includes the SF803 spot finder and includes Spot Align (automatic alignment), Spot Match (grade calculation) and SpotLok (beam locking to prevent beam drift).
