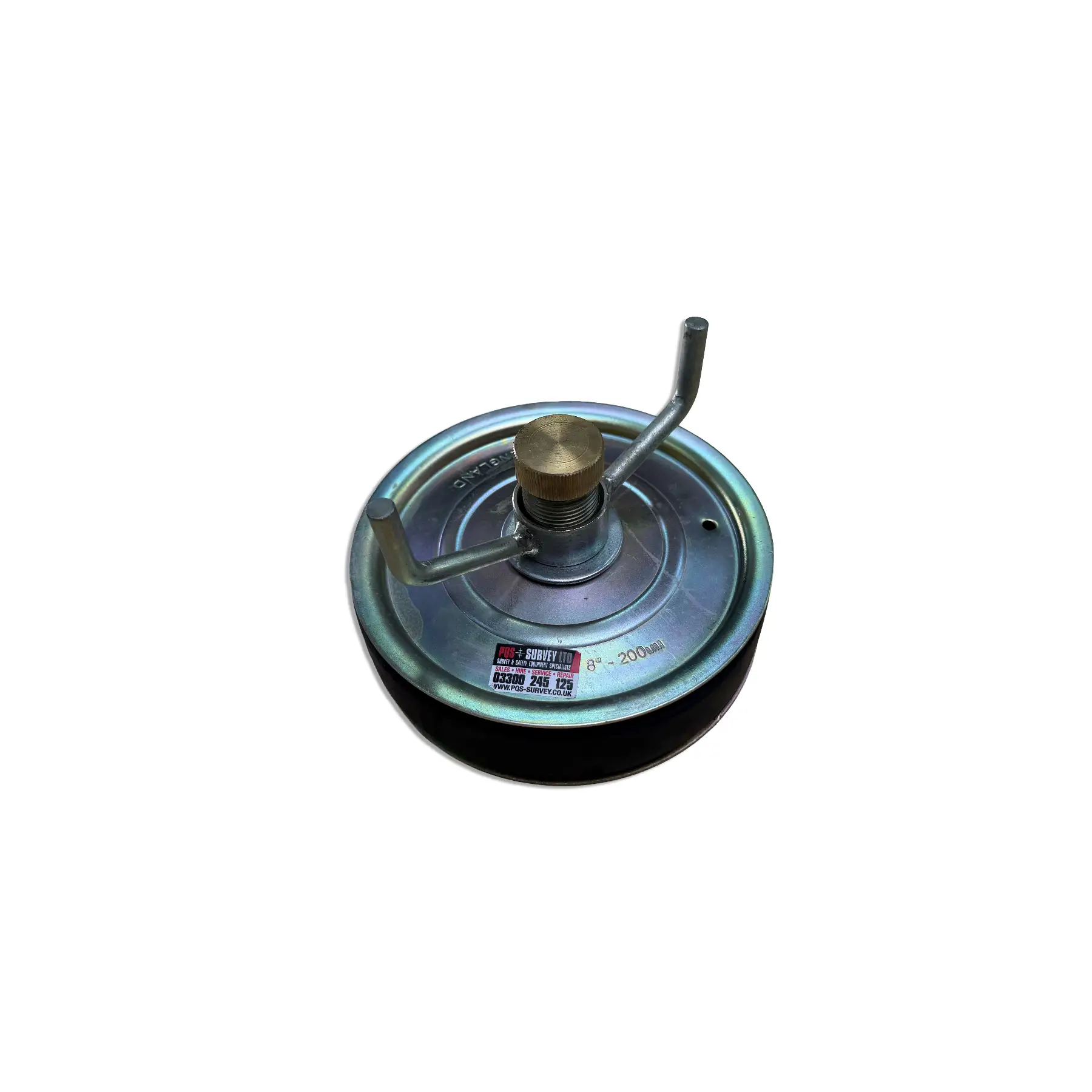

Steel Pipe Stopper 200mm

Industrial-grade 200mm steel pipe stopper designed for sealing or testing 8-inch main lines, sewers, and large conduits. Featuring a rugged mechanical expansion design with a premium rubber perimeter seal and a central bypass, it ensures maximum stability under pressure.

Heavy Duty Zinc Plated Steel Frame: Built with a rugged steel central stem and plates that resist mechanical deformation and corrosion in damp trench environments.
Expandable Natural Rubber Perimeter Ring: Features a high-grip rubber sealing rim that expands uniformly against the inner pipe wall to form a gas and watertight block.
Threaded Steel Nominal Bypass Nipple: Outfitted with a central hollow one-inch thread and removable sealing cap to allow controlled water drainage or air testing connections.
Mechanical Wing Nut Locking Assembly: Employs a smooth twin-lip compression nut that tightens manually to compress the plates and expand the plug quickly without complex tool setups.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Steel Pipe Stopper 150mm

PVC Inflatable Sealing Bag

Drain Air Testing Kit

FAQs

What are the main applications for a 200mm steel pipe stopper on site?

A 200mm steel pipe stopper is ideal for sealing, blanking, or pressure-testing larger 8-inch main drainage lines, culverts, and industrial sewer pipework.

How does a 200mm mechanical steel stopper create a secure seal?

Turning the central wing nut compresses a thick rubber ring between two zinc-plated steel plates, expanding the seal uniformly against the inner wall of the 200mm pipe.

Can a 200mm steel stopper be used for standard building regulation air tests?

Yes, bypass versions feature a threaded central outlet allowing easy connection to test nipples, hand pumps, and U-gauge manometers for official pressure testing.

Is the steel construction resistant to harsh site conditions and effluent?

The zinc-plated steel plates and heavy-duty rubber ring resist corrosion, rust, and exposure to chemicals, wastewater, and abrasive site grit.

What is the advantage of using a steel mechanical stopper over plastic or inflatable bags?

Steel stoppers offer superior mechanical strength and stability, providing a rigid, high-pressure seal that will not deflate or slip during demanding pipe tests.

Can I hire a 200mm steel pipe stopper for short-term drainage testing?

Yes, we carry a complete selection of 200mm steel mechanical stoppers within our nationwide hire fleet, fully inspected and ready for immediate delivery to your project.
