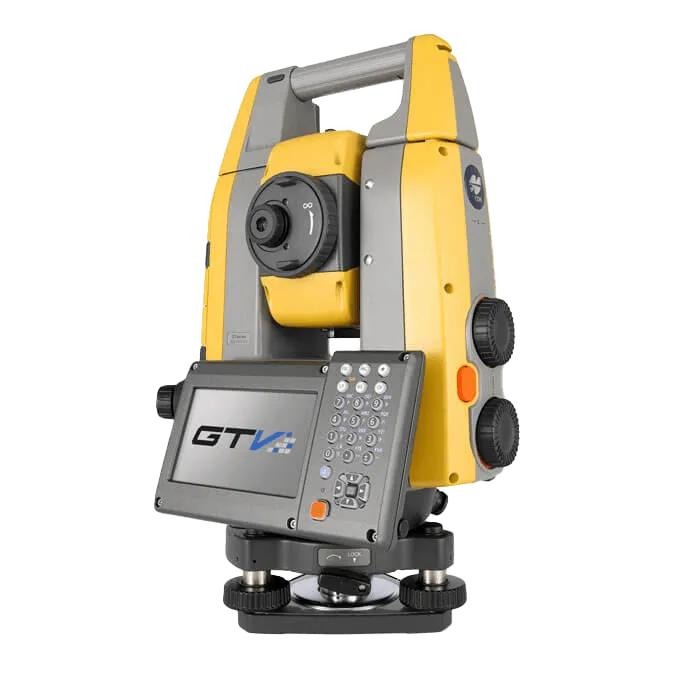

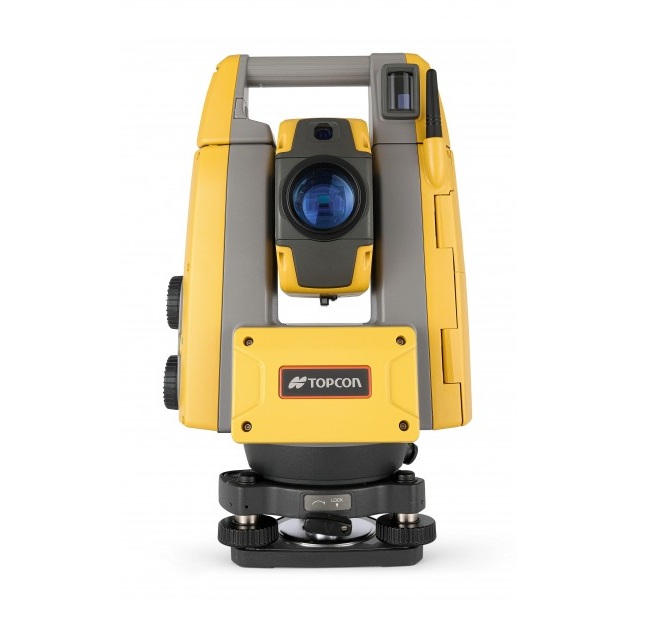

Topcon GT-600

The Topcon GT-600 is the world’s smallest and lightest robotic total station. Powered by advanced UltraSonic motors, it provides a turning speed of 120° per second and smooth, accurate prism tracking. It is a one-person system built for demanding site layout, survey, and BIM workflows.

UltraTrac Intelligence: Enhanced sensor algorithms provide superior prism locking and faster re-acquisition if the line of sight is broken.
Rugged IP65 Protection: Fully dust-tight and resistant to water jets, ensuring stable performance in torrential rain and harsh site conditions.
Compact & Lightweight: At just 5.8kg, it is significantly smaller and lighter than previous models, making it ideal for all-day portability.
Advanced UltraSonic Motors: Powerful direct-drive technology delivers smooth, silent rotation at 120° per second for high-speed tracking.
LongLink Connectivity: Exclusive Bluetooth technology offers a 600m robotic range, allowing seamless communication between the station and the controller.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Topcon HiPer XR

Topcon FC-6400

Topcon GT-700

Full Description

The Topcon GT-600 robotic total station was a significant advancement in construction layout and surveying technology, offering a high-performance solution that caters to the rigorous demands of modern job sites. Engineered for maximum efficiency, this flagship instrument is recognized as a compact and portable choice that is exceptionally easy to set up in challenging terrains. At the heart of the GT-600 are advanced UltraSonic direct-drive motors that provide high-speed rotation and superior prism tracking, ensuring that a single operator can complete complex setting-out tasks significantly faster than traditional two-person teams. The integration of UltraTrac technology further enhances the instrument's capabilities by maintaining a stable lock on the prism even in busy environments with frequent obstructions or high-intensity sunlight. For construction professionals working within a Building Information Modeling framework, the GT-600 offers seamless connectivity and data handling through the MAGNET Field software suite, allowing for a fluid transition from office-based 3D models to real-world site points. Its reflectorless Electronic Distance Measurement reach of up to 800m and 5" angular accuracy ensure that whether the task is a topographic survey or a precise building layout, the results are consistently accurate and reliable. Designed to survive the harsh conditions of a typical UK construction site, the GT-600 boasts a rugged IP65 dust and waterproof rating, ensuring peak performance in rain and dusty environments alike. While the GT-600 remains a staple for many due to its proven track record, it is important to note that this model has been superseded by the newer Topcon GT-700. The successor model introduces the GT-700 series architecture, featuring even faster turning speeds of up to 200° per second and enhanced Brushless Direct Current motor control for even quieter and smoother operation. Despite the arrival of the GT-700, the GT-600 continues to provide a cost-effective and dependable robotic system that balances durability with the cutting-edge speed required to stay competitive in the fast-paced civil engineering and construction sectors.

FAQs

What are the main differences between the GT-600 and the GT-500?

While both belong to the UltraSonic robotic family, the GT-600 features updated internal hardware and refined “UltraTrac” prism tracking algorithms. Users typically find the GT-600 provides a more stable lock in high-glare or obstructed environments compared to the older GT-500 and is optimised for faster data processing.

How does the GT-600 differ from the newer GT-700?

The GT-700 is the direct successor and introduces the “GT-700” architecture. The primary differences are rotation speed and motor control; the GT-700 offers a significantly faster turning speed of 200° per second compared to the 120° of the GT-600, with upgraded Brushless Direct Current motors for smoother operation.

What is the benefit of the UltraSonic Direct Drive motors?

The UltraSonic motors are gearless, which significantly reduces mechanical wear and tear. This design allows the GT-600 to be 30% smaller and lighter than previous robotic stations while providing much faster rotation speeds and higher reliability for long-term hire use.

Is the Topcon GT-600 suitable for one-person operation?

Yes, the GT-600 is a fully robotic system designed specifically for single-operator efficiency. When paired with a field controller and the RC-5 remote, a single engineer can perform all setting-out and layout tasks, eliminating the need for a second person at the instrument.

What is the prism tracking range of the GT-600?

The GT-600 features a tracking system capable of maintaining a prism lock up to 600m using LongLink Bluetooth technology. For standard measurements, it has a prism range of up to 4,500m and a reflectorless (non-prism) range of up to 800m.

Can I use the GT-600 for machine control?

Absolutely. The GT-600 is “LPS Ready” (Local Positioning System)

What are the differences between the TS20 A, P, and I hardware variants?

TS20 A (Aiming): Includes standard automatic target aiming (ATR) but does not include the long-range active laser sweep for quick target acquisition.TS20 P (PowerSearch): Adds the dedicated vertical laser sensor array for full, rapid 360° prism re-locking and PowerSearch capabilities.TS20 I (Imaging): Includes the PowerSearch array and features a completely redesigned, ultra-high-resolution 20-megapixel overview camera that supports tile-free panoramas and real-time live video steering on your field controller.
