Topcon MC-MAX Excavator System

The Topcon MC‑Max is a versatile machine control system designed for excavators, dozers and graders. Delivering precise 2D and 3D guidance, it helps operators maintain design lines and slopes efficiently, while improving productivity and reducing material waste on construction sites.

Scalable Modular Platform allows you to start with a standard 2D or 3D guidance system and easily upgrade to full hydraulic automatic control as your project needs grow.
High-Speed IMU Sensors provide rapid and precise bucket positioning, ensuring the operator has smooth, real-time feedback even during fast digging and swinging movements.

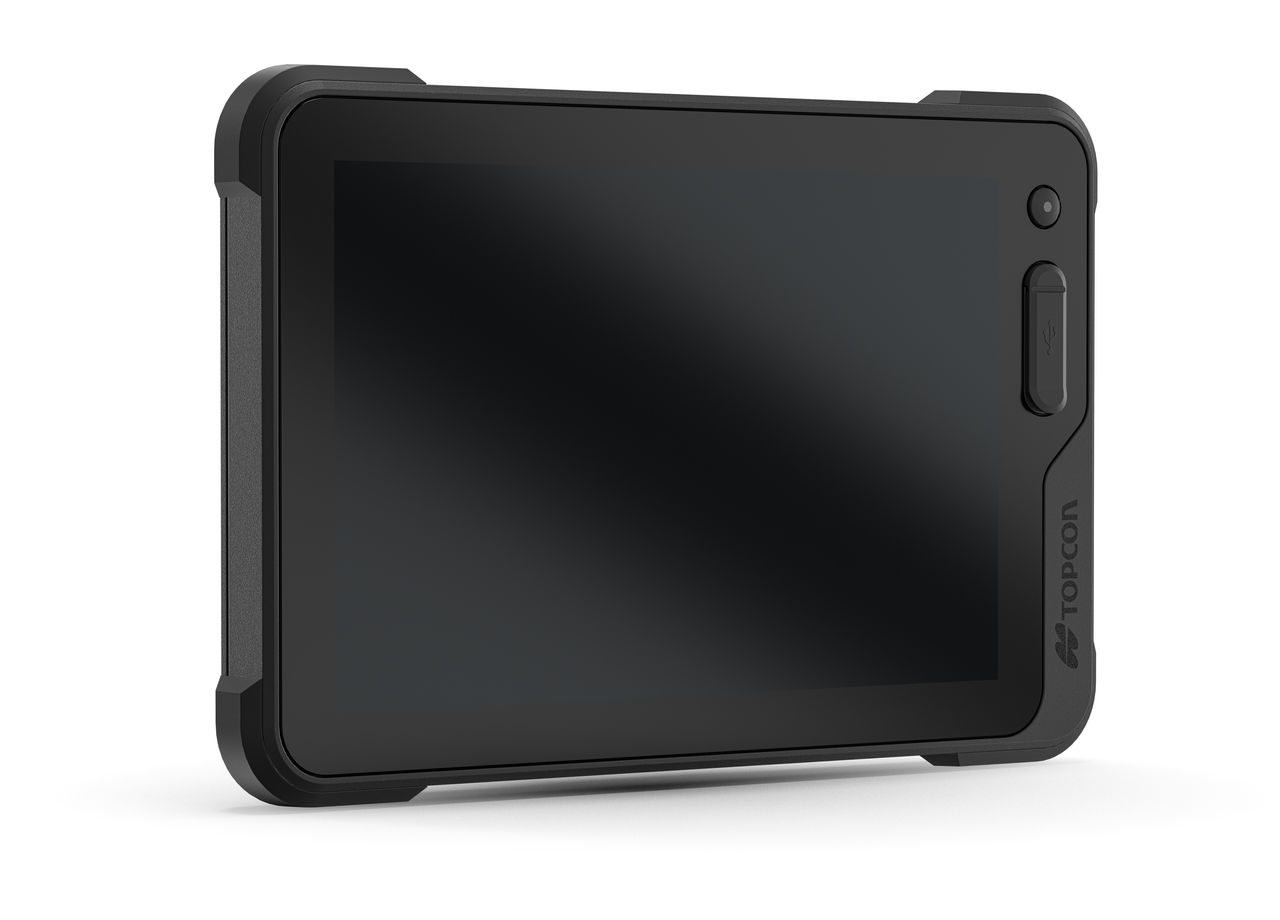

Full 3D Design Integration displays complex CAD and BIM models directly on the in-cab screen, allowing for millimetre-accurate trenching, grading, and slope work without stakes.
Rugged Site Performance features IP69K-rated components that are built to withstand the extreme vibrations, dust, and high-pressure cleaning typical of heavy plant machinery.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Topcon HiPer XR

Topcon GT-700

FAQs

What is the Topcon MC-MAX and how does it differ from older systems?

MC-MAX is the successor to Topcon’s older excavator solutions, built on the modular MC-X platform. It features upgraded processing power, faster communication speeds, and utilizes modern CAN bus technology and high-speed IMUs to provide significantly smoother, real-time bucket tracking compared to older analog systems.

What are the main improvements over the previous GT-600/X-series era tech?

The biggest advancements are in modularity and speed. MC-MAX uses TS-i4 IMU sensors that process data much faster than previous generations, resulting in a more responsive “live” bucket display. Furthermore, the hardware is now interchangeable across dozers, graders, and excavators, simplifying fleet management.

How do the IMU sensors improve bucket accuracy?

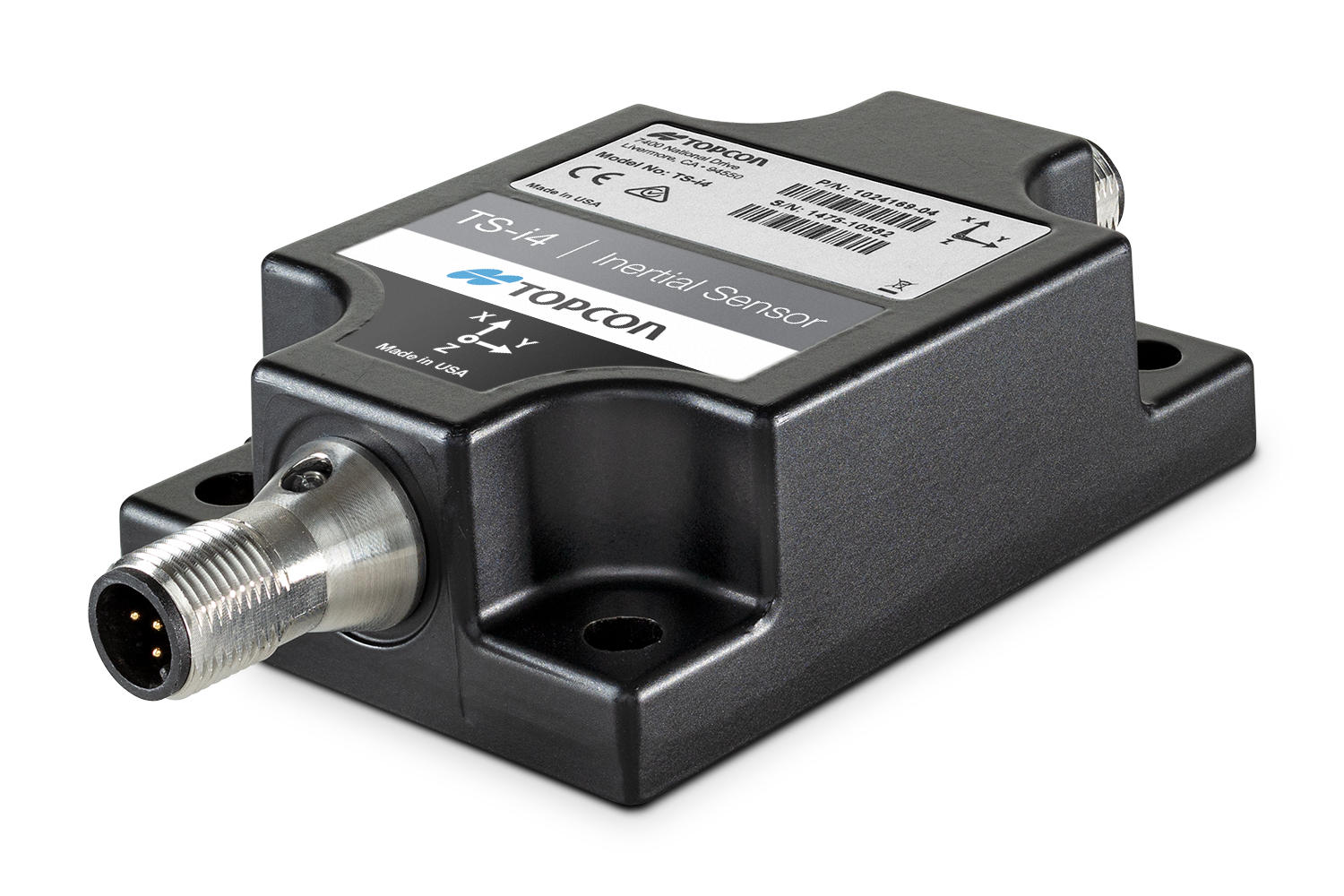

Multiple TS-i4 3-axis IMUs mounted on the body, boom, stick, and bucket measure tilt and acceleration 100 times per second. Because these are inertial sensors, they remain stable in high-vibration environments, allowing operators to maintain millimetre accuracy even during rapid arm movements.

Is the MC-MAX compatible with both the GT-700 and GT-600 robotic stations?

Yes. When configured for LPS mode, MC-MAX is fully compatible with both the latest GT-700 series and the older GT-600 series robotic total stations. This setup is ideal for high-precision work in areas where GNSS signals are blocked, such as tunnels or deep cuttings.

Can I switch between 2D and 3D guidance on the same machine?

Absolutely. MC-MAX offers complete flexibility, allowing you to run in 2D mode for simple tasks like digging flat pads or switch to 3D mode for complex digital designs. It can also be upgraded to 3D Automatic mode, where the system controls the hydraulics to maintain grade.

Does the MC-MAX support tilt-rotator attachments?

Yes, the system provides full support for popular UK tilt-rotators like Engcon or Rototilt. It integrates rotation and tilt data directly into the cab display, ensuring the operator knows the exact position of the bucket’s cutting edge even
