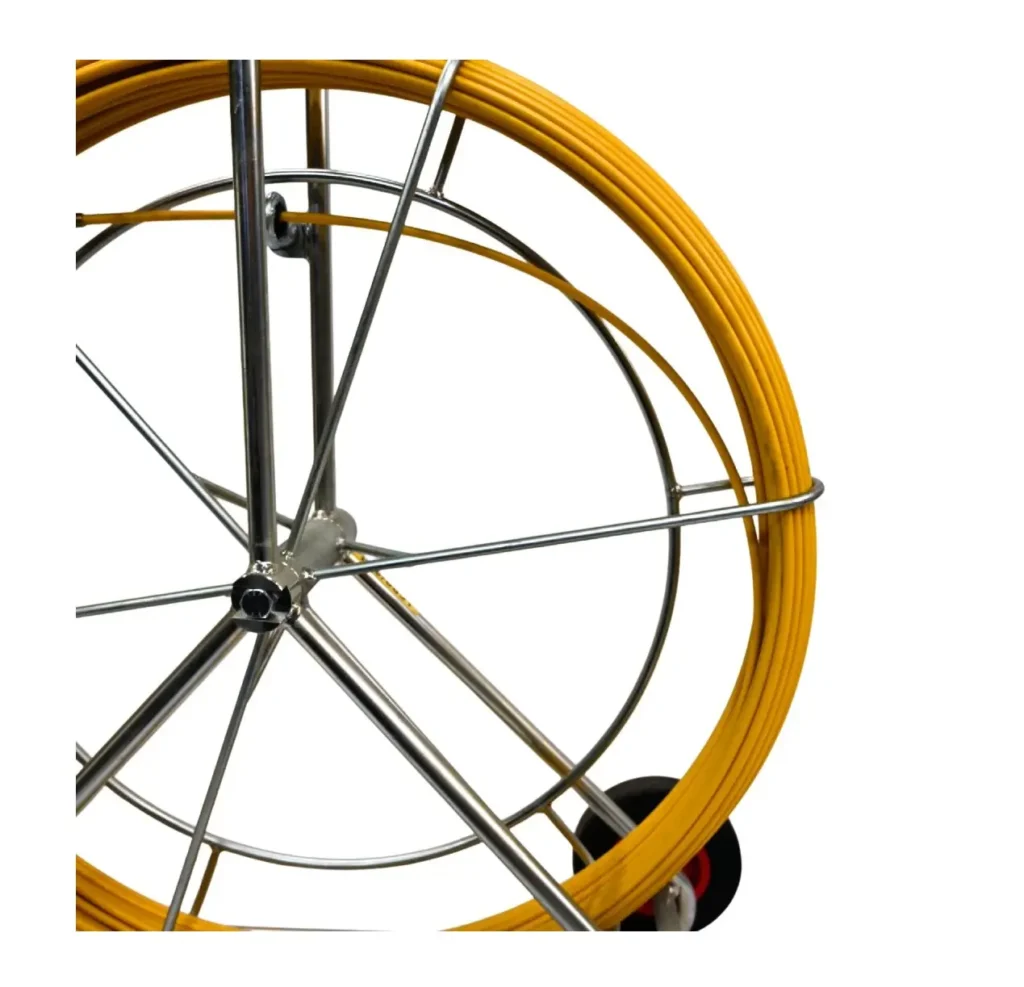

250m Cobra Reel (11mm)

The 200m Cobra Reel is a high-capacity, heavy-duty duct rodding system designed for long-distance utility installations and deep drainage surveys. Available in 9mm, 11mm, and 14mm diameters, it features an ultra-strong reinforced core and a wheel-mounted steel frame for superior performance on major infrastructure projects.

Maximum Distance Utility Tracing: Provides a premium two-hundred-and-fifty-meter continuous structural rod length for massive trunk line surveys.
Oversized Heavy Duty Rolling Cart: Built into an upright, large-wheel steel chassis for direct transport across uneven civil construction terrain.
High Flex Structural Matrix: Maintains maximum core flexibility to slip around long-distance pipeline sweeps without locking up.
Premium Signal Transmission Continuity: Delivers flawless transmitter signal delivery through to the very tip of the rod over its entire length.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Radiodetection Super Sonde

Radiodetection Sewer Sonde

Radiodetection Standard Sonde

FAQs

What material is the rod constructed from?

The rod features a high-tensile fiberglass core coated with a tough, low-friction polypropylene sheathing that resists abrasion, moisture, and chemical exposure on site.

Can we hire this unit for short-term projects?

Yes, the 250m Cobra Reel is available for flexible short-term or long-term hire, providing a cost-effective solution for long-range main-drain or trunk-duct contracts.

What is the primary function of a 250m Cobra Reel?

A Cobra Reel is a continuous flexible fiberglass rod used to push pulling lines, sondes, or inspection cameras through underground ducts, conduits, and pipe networks.

What fittings are attached to the ends of the rod?

The rod ends feature securely crimped brass threaded guide tips, allowing operators to easily screw on pulling eyes, clevises, or transmitting sondes for deep utility tracking.

What type of frame does the reel utilize?

It is mounted in a large-format, heavy-duty freestanding steel frame equipped with robust transport wheels to allow stable site deployment and easy mobility.

Can it be used to trace the exact path of a non-metallic pipe?

Yes, if you choose a traceable version with internal copper wires, you can connect a transmitter to the terminal to trace the entire rod length.

Why is an 11mm diameter standard for a 250m length?

The thick 11mm diameter provides the exceptional column strength and stiffness required to push a rod over a massive 250m distance without it buckling inside the duct.

Does the reel feature a mechanism to prevent unwanted uncoiling?

Yes, the heavy-duty steel frame includes an integrated manual brake or friction latch system to safely control the feed speed and prevent the stiff fiberglass rod from springing out.

How should the Cobra Reel be maintained after field use?

Wipe dirt and mud off the rod as it is rewound, check the fiberglass sheathing for deep cuts, and ensure the brass end fittings remain clean.

How does this 250m model compare to shorter reels?

This model is specifically designed for maximum distance runs in mainline infrastructure, featuring a much larger wheeled cage to manage the increased weight and stiffness of the 11mm rod.
