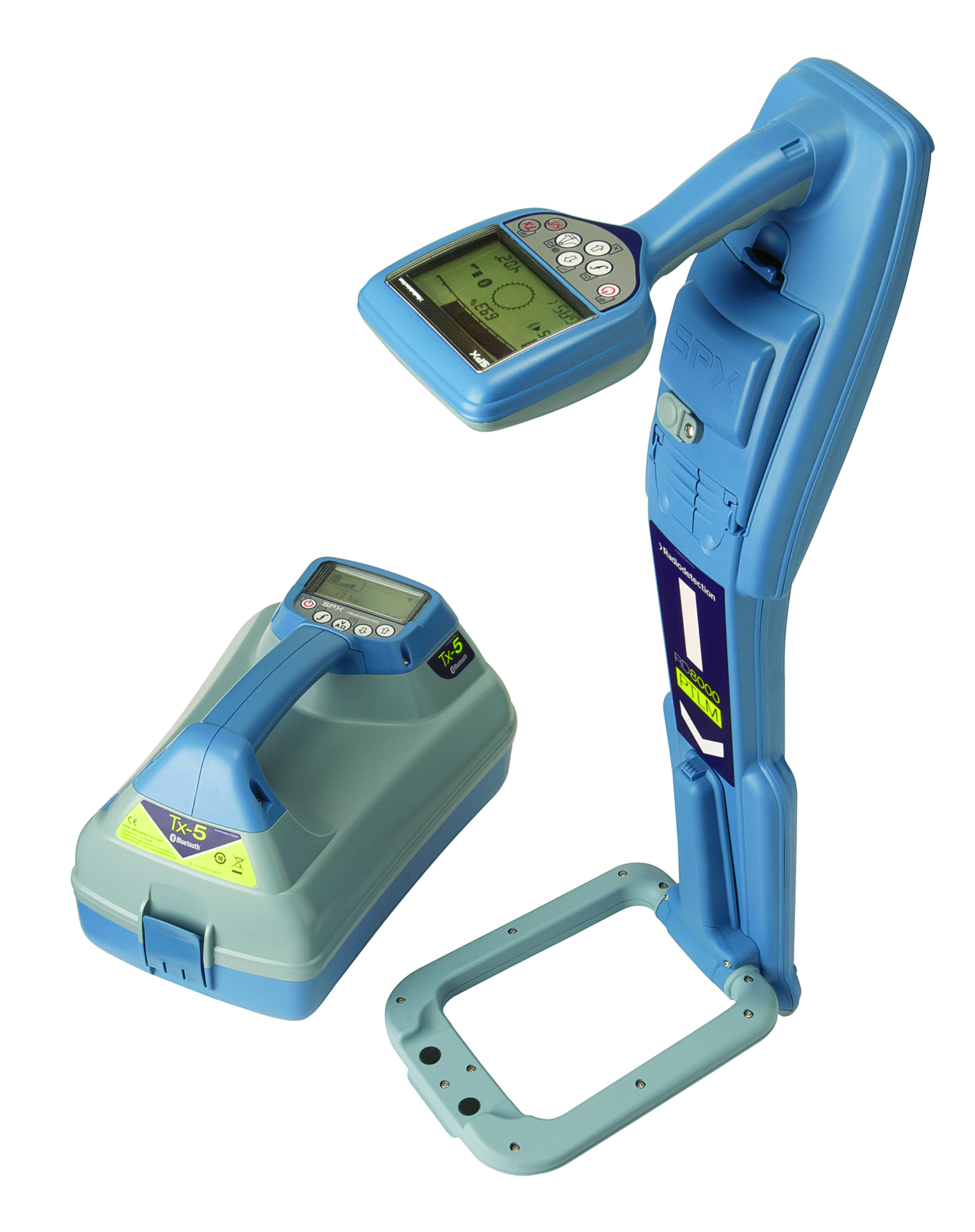

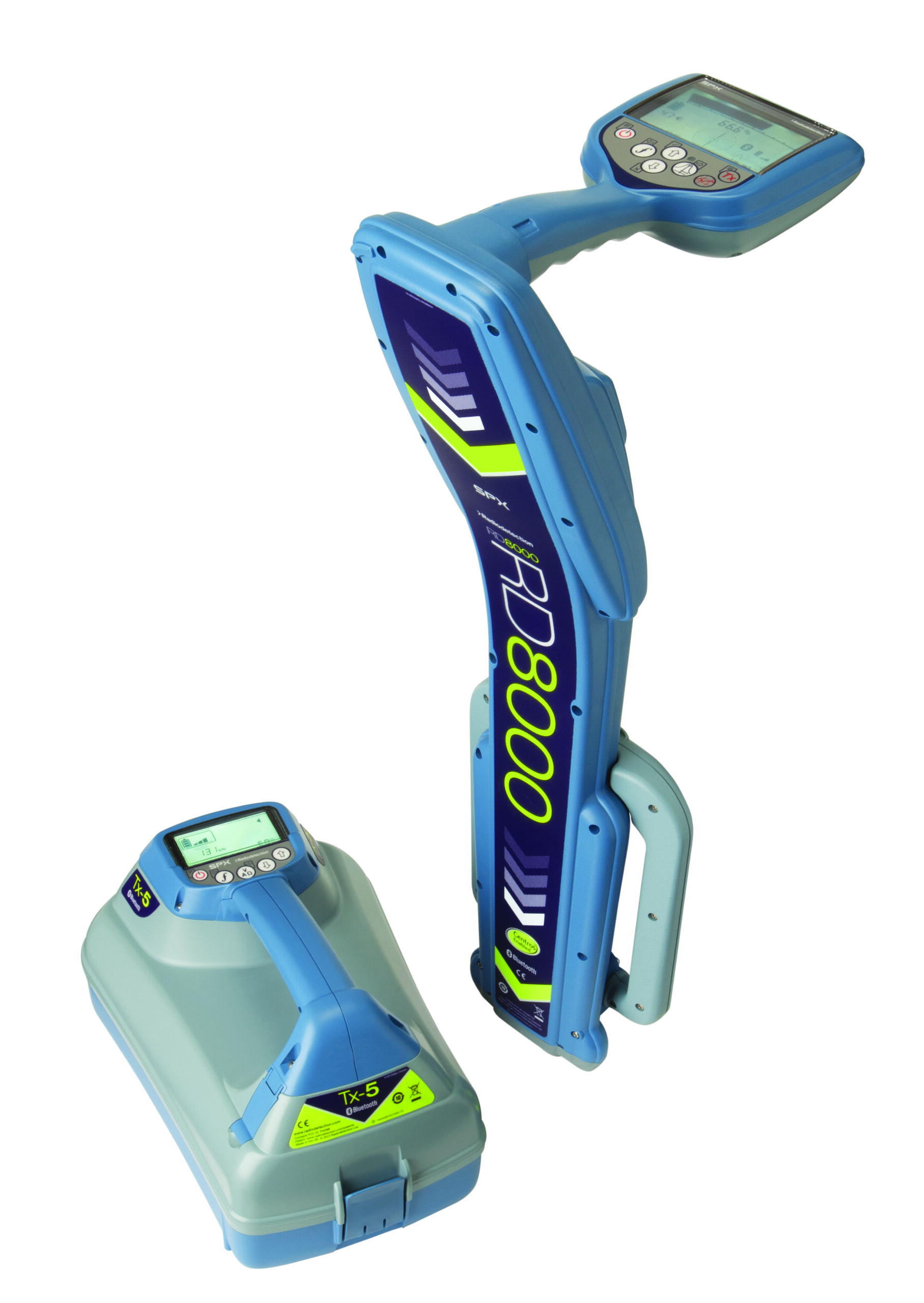

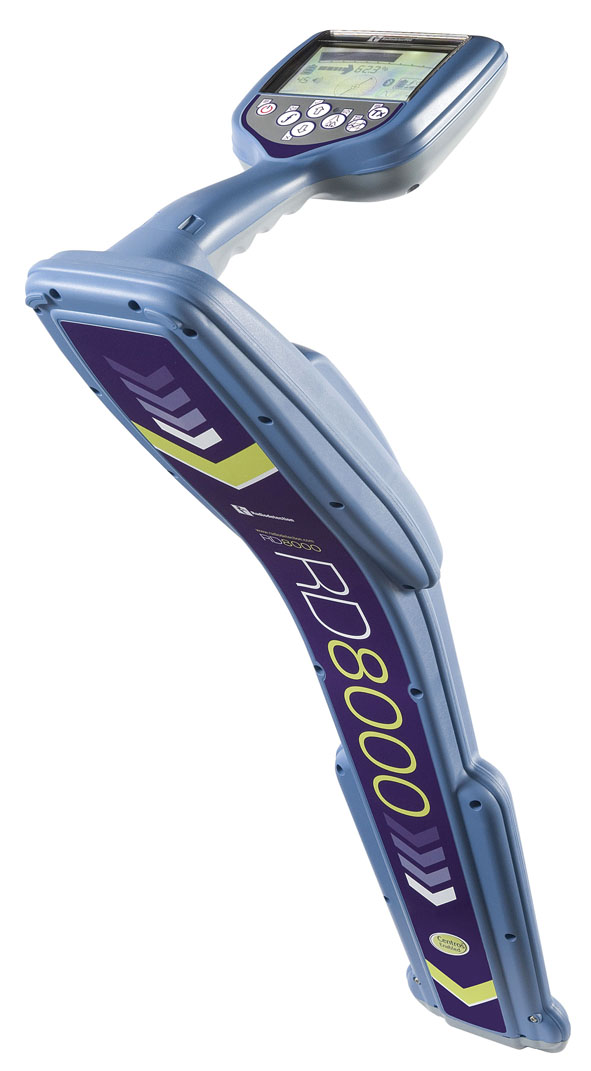

Radiodetection RD8000 Cable and Pipe Locator

The Radiodetection RD8000 is a legacy industry-standard precision locator designed for fast, accurate, and reliable utility detection. Even as a predecessor to newer models, it remains a powerful tool for identifying the position and depth of buried pipes and cables in complex underground networks.

Legacy Structural Precision: Delivers field-proven tracking performance trusted globally for high-volume utility mapping and clearance verification.
Centering Peak Response: Uses advanced antenna algorithms to provide lightning-fast maximum responses directly over buried service lines.
TruDepth Measurement System: Displays automated true depth readings only when the locator is correctly aligned with the targeted service.
Durable Display Crystal: Fitted with a high-visibility screen optimised to resist scratching and site impact marking.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Radiodetection Super Sonde

Radiodetection TX-10 Transmitter

Radiodetection RD8200 Cable and Pipe Locator

FAQs

What is the primary purpose of the Radiodetection RD8000?

The RD8000 is a high-performance utility locator designed to trace buried pipes and cables, identify specific service paths, and measure depth in complex underground networks.

Can we hire this unit for short-term projects?

Yes, the RD8000 is available for flexible short-term or long-term hire, providing a cost-effective way to utilize precise locating technology on your current site.

What is the maximum depth range of the RD8000?

The digital display can accurately calculate utility depth down to 6 metres when tracking a line, and up to 10 metres when using a compatible sonde.

How does the Centros tracking engine improve accuracy?

The Centros engine combines specialised algorithms and digital signal processing to improve signal filtering, providing repeatable accuracy even in areas with heavy electrical noise.

What is the difference between Peak and Null locating modes?

Peak mode uses dual horizontal antennas to give a sharp signal response directly over the utility, while Null mode uses a vertical antenna to check for signal distortion.

Does it feature an alert for shallow buried cables?

Yes, the StrikeAlert safety feature provides an immediate visual icon and audio alarm if it detects a live power cable buried less than 0.3 metres deep.

Can it locate structural faults on underground cables?

Yes, when paired with a compatible A-frame accessory, the RD8000 can pinpoint cable sheath insulation faults down to a specific localized point.

What power source does this locator utilize?

The unit
