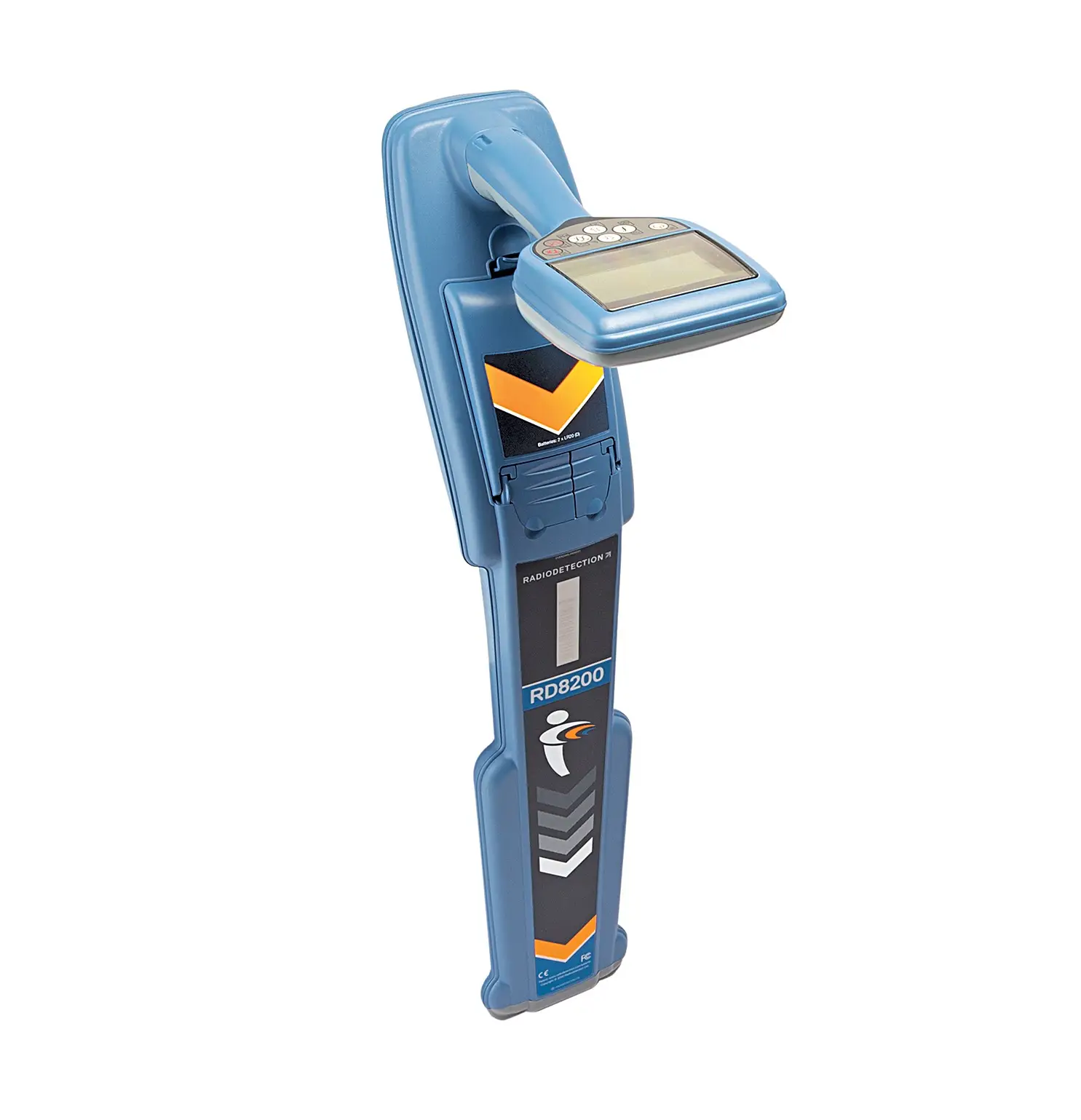

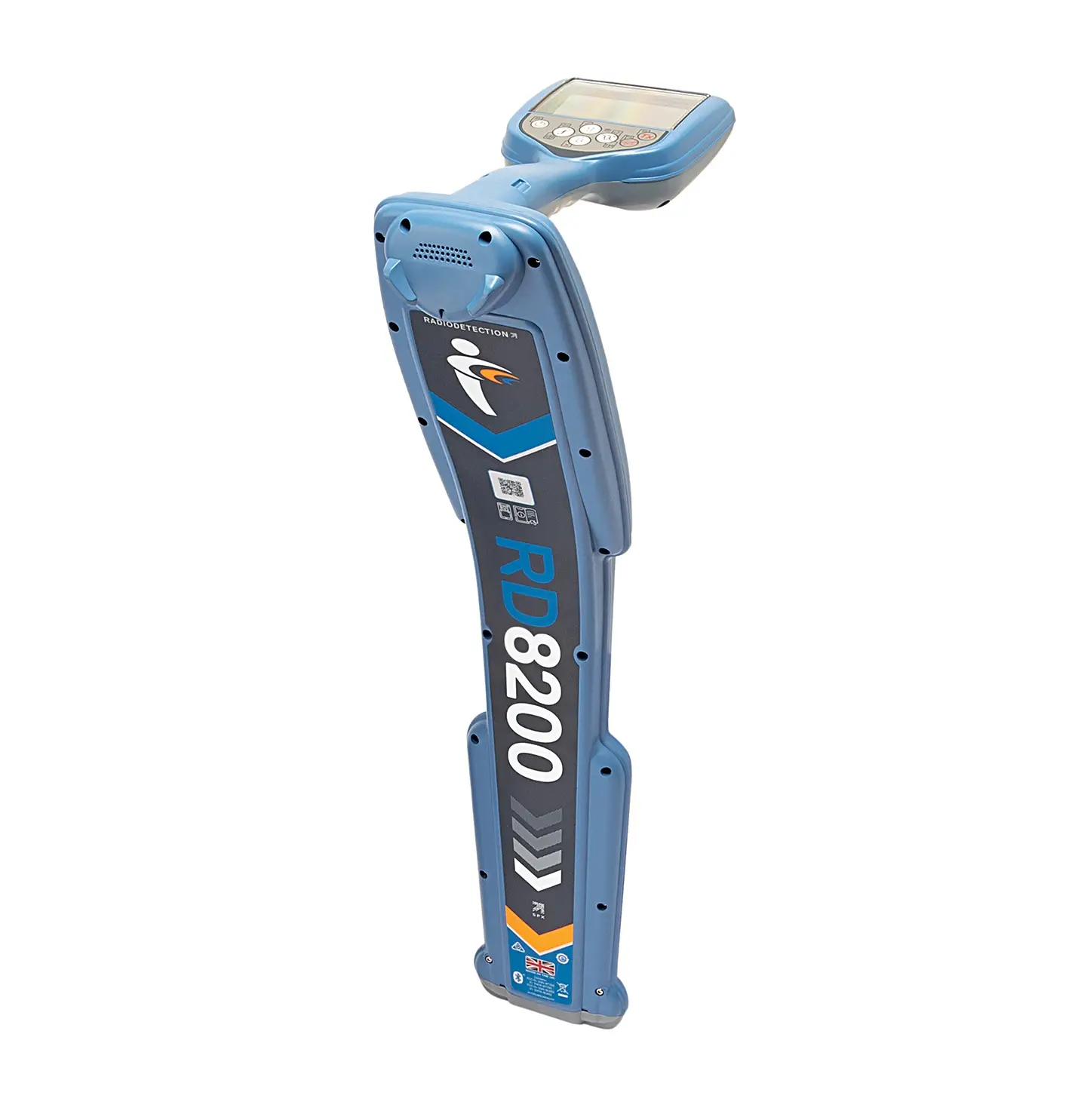

Radiodetection RD8200 Cable and Pipe Locator

The Radiodetection RD8200 is a professional-grade cable and pipe locator designed for high-precision utility detection in complex environments. It features advanced multi-frequency locating, integrated GPS logging, and high-performance interference rejection to ensure accurate mapping of underground infrastructure.

Multi-Frequency Survey Array: Features a diverse spectrum of specialised locating frequencies to handle complex municipal utility congestion.
Compass Orientation Guide: Displays a real-time target directional pointer on screen to align the operator with the pipe path perfectly.
Power Filters Technology: Isolates specific harmonic frequencies to trace individual power cables within dense shared utility trenches.
Ergonomic Industrial Chassis: Rated IP65 to resist dust ingress and heavy rain downpours during long tracking shifts.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Radiodetection Super Sonde

Radiodetection Standard Sonde

Radiodetection TX-10 Transmitter

Full Description

The RD8200 is Radiodetection’s most advanced precision locator, engineered to meet the demands of utility technicians and surveyors working in congested underground networks. It addresses the challenges of signal interference from high-voltage cables and nearby metal structures through its sophisticated Power Filters and SideStep technology. This allows the operator to distinguish between target utilities and ghost signals that often lead to inaccurate excavations. Equipped with a sunlight-readable display and ergonomic design, the RD8200 supports various locating modes including Peak, Peak+, Null, and Guidance. The unit features integrated GPS and internal logging, allowing for the geo-tagging of located points which can be exported via Bluetooth to the RD Map+ app. This ensures that every locate is backed by defensible data, improving site safety and reducing the risk of accidental utility strikes during excavation works.

FAQs

What is the primary purpose of the Radiodetection RD8200?

The RD8200 is a premium, multi-frequency locator designed for utility professionals to accurately trace, identify, and measure the depth of complex underground cable and pipe networks.

Can we hire this unit for short-term projects?

Yes, the RD8200 is available for flexible short-term or long-term hire, providing access to top-tier utility surveying technology without high upfront purchasing costs.

What is the benefit of the RD8200’s multi-frequency capability?

It features 22 locating frequencies and 5 sonde frequencies, allowing operators to choose the optimal frequency to trace specific utilities or overcome signal bleed in congested environments.

How does the integrated data logging feature work?

The RD8200 automatically logs usage parameters and GPS positional data every second, which can be downloaded via Bluetooth or USB to evaluate field operation quality.

What is the purpose of the Swing Warning system?

The locator features an internal gyroscopic sensor that warns the operator with a display alert if they are swinging the device excessively, ensuring proper utility sweeping technique.

Does it feature a strike alert function for shallow cables?

Yes, the StrikeAlert feature provides an instant audible and visual warning on the screen if it detects a shallow, live power cable buried less than 0.3 metres deep.

What is the maximum depth range of this locator?

The digital depth readout can accurately measure down to 6 metres under standard line tracing conditions, and up to 10 metres when tracking a compatible deep sonde.

Can it locate non-metallic utility lines?

It can only detect metallic lines directly; however, you can locate plastic or clay pipes by utilizing a traceable flexitrace line or inserting a transmitting sonde.

What type of power source does the RD8200 use?

The unit operates on two standard D-cell alkaline batteries, providing up to 30 hours of continuous site use, or it can be fitted with a rechargeable Lithium-ion pack.

How often should the RD8200 undergo calibration?

To maintain regulatory compliance and high precision, the RD8200 requires a full professional calibration verification check every 12 months.
