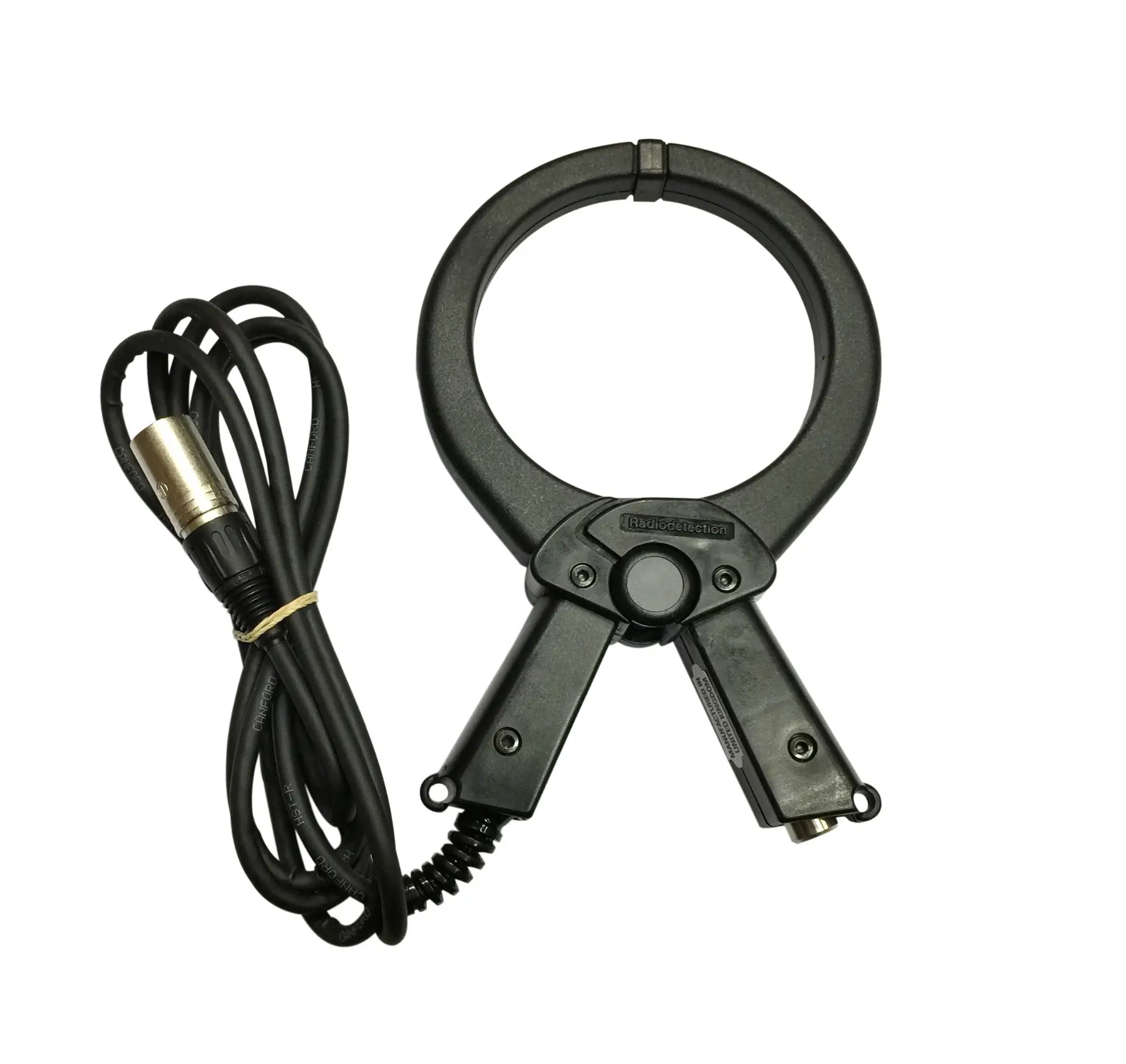

Radiodetection Signal Clamp

The Radiodetection Signal Clamp is a professional 100mm (4-inch) accessory that induces a 33kHz tracing signal onto buried utilities. Designed for use with the Genny4 or Texcel transmitters, it allows for precise identification of specific cables in crowded trenches and enables accurate depth measurement on C.A.T4 locators.

Safe Live Cable Tracing: Applies a distinct transmitter signal onto insulated conductive lines without disrupting supply or isolating power.
Heavy Duty Spring Action: Built with a high-tension clamp frame to ensure a flush, secure fit around pipes up to 100mm wide.
Shielded Magnetic Core: Insulates the transmission loop to prevent cross-talk signals from corrupting parallel utility lines nearby.
Plug And Play Connection: Connects instantly to the signal generator base unit via a heavy-duty reinforced direct cable link.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Radiodetection Super Sonde

Radiodetection Standard Sonde

Radiodetection Genny 4

Full Description

The Radiodetection Signal Clamp is an essential tool for any utility tracing professional. By using electromagnetic induction, the clamp transfers the signal from your Genny transmitter directly onto the target utility through its outer insulation. This method is the safest way to trace live power cables, as it requires no physical contact with the internal live cores. With a 100mm jaw capacity, this clamp is sized perfectly for the majority of residential and commercial service lines. Clamping a utility ensures that the signal stays concentrated on your target, preventing the signal from "bleeding" onto nearby metal pipes or other cables. This results in a much sharper and more reliable response on your C.A.T4 or gCAT4+ locator. Its heavy-duty, spring-loaded handle is built for one-handed operation, and the reinforced cable is designed to withstand the daily wear and tear of a busy construction site.

FAQs

What is the primary function of a Radiodetection Signal Clamp?

A signal clamp allows you to safely apply a transmitter signal from a Genny4 onto an insulated live cable or pipe without disconnecting the utility or disrupting the supply.

Can we hire this unit for short-term projects?

Yes, the signal clamp is available for flexible short-term or long-term hire, making it easy to add to your locator kit for specific site contracts.

How does the clamp transmit the signal without direct metal contact?

It uses a specialised internal toroidal winding that creates an electromagnetic field, inductively inducing the tracing signal onto the metallic conductor inside the cable.

What size options are available for this accessory?

The standard clamp has a 100mm internal diameter, but various sizes ranging from 50mm up to 215mm are available to accommodate different pipe and high-voltage cable diameters.

Can it be used on live high-voltage power cables?

Yes, the clamp is fully insulated and designed to safely wrap around live electricity cables, providing a secure method to trace power lines without electrical risk.

Does the clamp need to be plugged into anything?

Yes, it connects directly to the accessory output socket of a Genny4 signal generator using its integrated heavy-duty cable and plug.

Must the clamp jaws be completely closed to work?

Yes, for correct signal transfer, the jaws must snap fully closed around the utility; any gap in the clamp’s circular loop will significantly reduce signal strength.

Is this accessory waterproof for use in flooded trenches?

The clamp is weather-resistant for wet site conditions, but it is not submersible and should not be fully immersed
