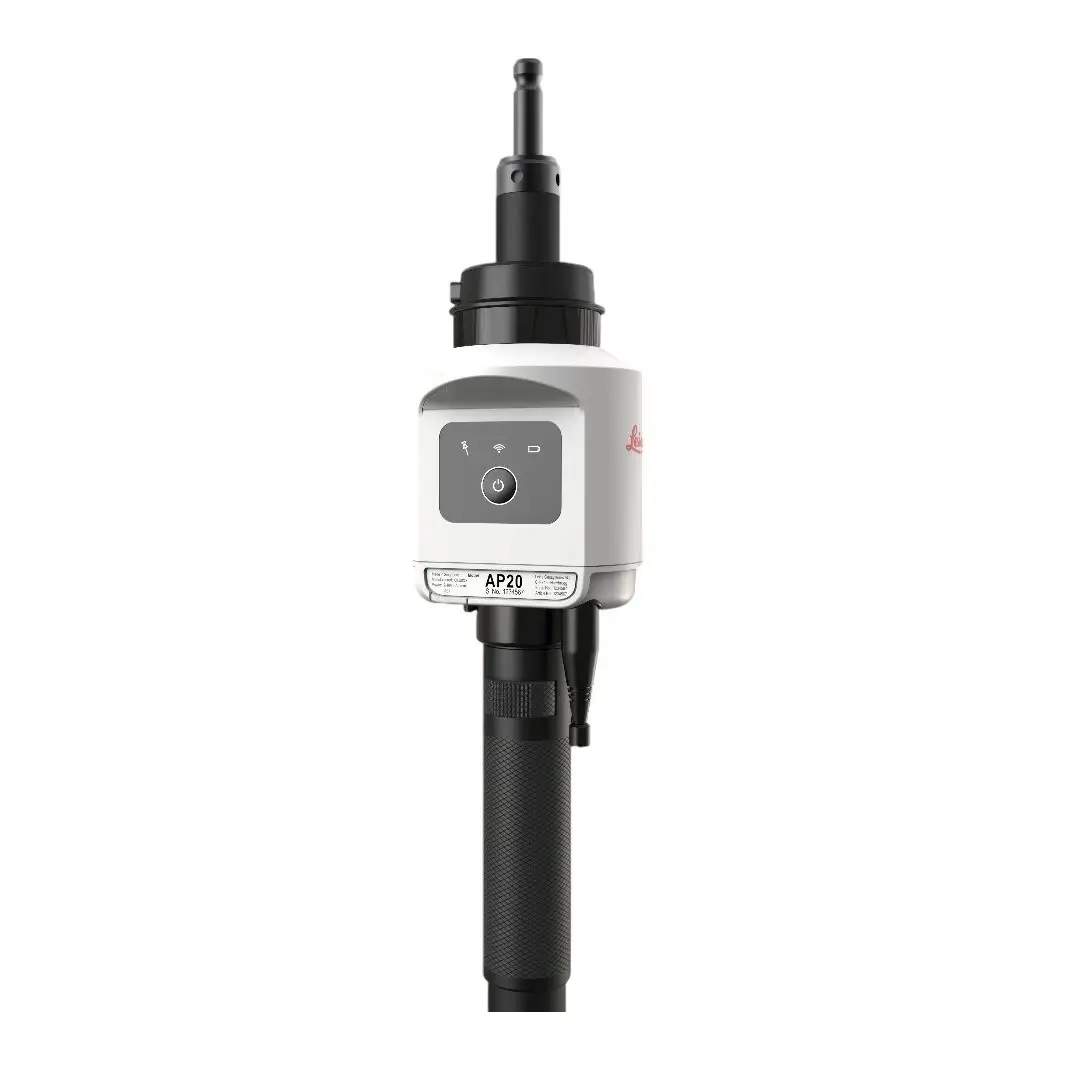

Leica AP20 Autopole

The Leica AP20 AutoPole is a revolutionary smart solution that automates manual tasks for robotic total station users. By integrating tilt compensation, automatic pole height readings, and target identification, it eliminates the most common sources of error and significantly accelerates site setting-out and surveying.

Tilt Compensation allows for survey-grade measurements with an angled pole to reach obstructed points while increasing operator safety on-site.
Automatic PoleHeight Readings update the software instantly when the telescopic pole is adjusted to eliminate manual measurement errors.
TargetID Technology ensures the robotic total station searches for and locks onto your specific prism only to prevent cross-tracking on busy sites.
Seamless Ecosystem Integration works effortlessly with Leica TS20, TS16, TS60, and MS60 instruments running Captivate software for a fully automated workflow.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Leica GS18T

Leica CS20 Controller

Leica TS20

Full Description

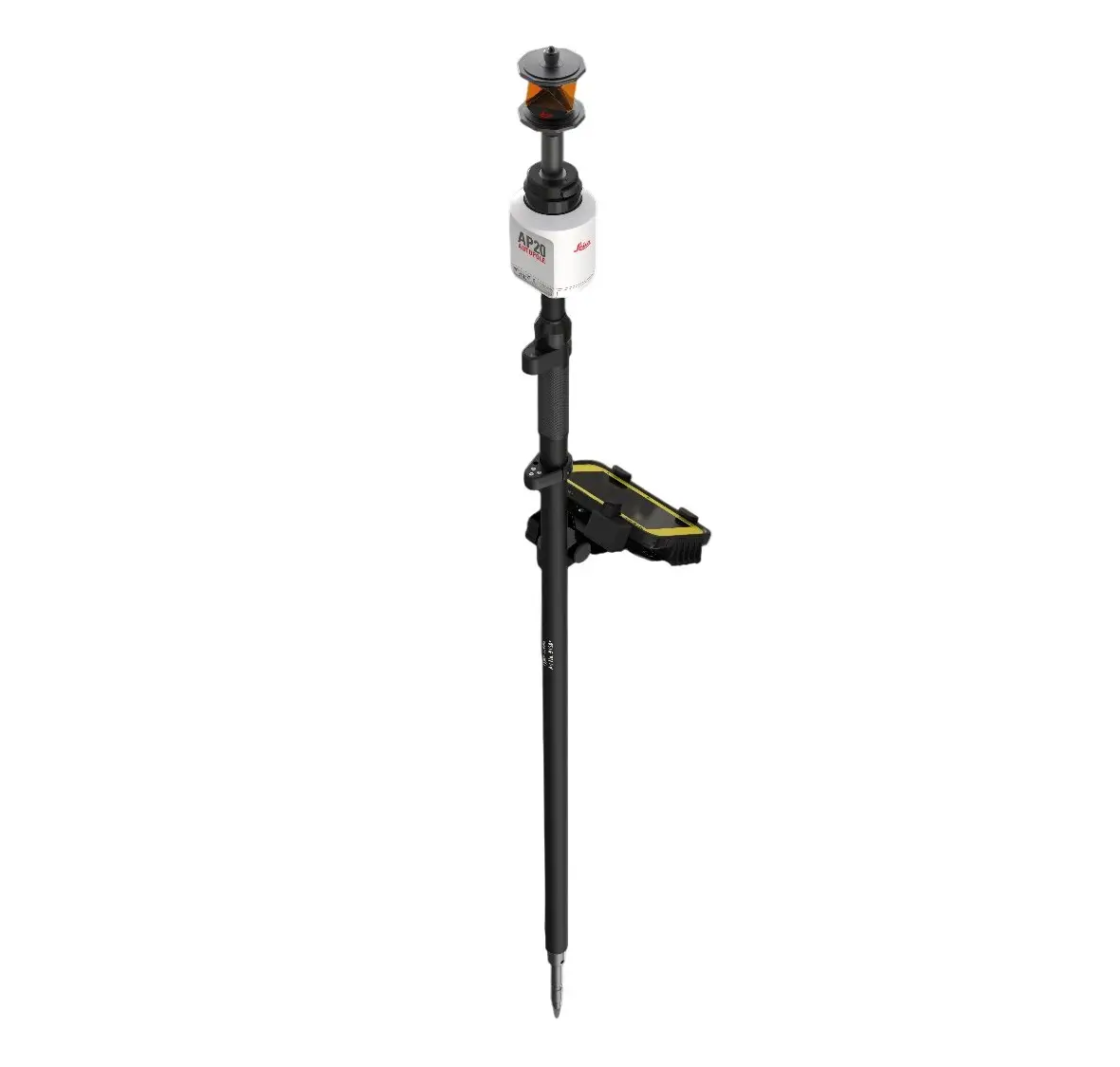

The Leica AP20 AutoPole is the world’s first intelligent survey pole, designed to overcome the final manual hurdles in robotic surveying. Working in perfect synchronisation with Leica automated total stations and the CS20 controller, the AP20 solves three critical problems on-site. Firstly, its Tilt Compensation allows points to be measured with an inclined pole, making it possible to capture inaccessible points like building corners or inverted levels without needing to level the bubble. Secondly, the PoleHeight feature automatically updates the instrument software whenever the pole length is adjusted, completely removing the risk of incorrect height entries. Finally, TargetID ensures the total station only locks onto your specific prism, preventing "losing" the target to reflective surfaces or other prisms on busy sites. Built for the rigours of the UK construction industry, the AP20 transforms a standard prism pole into a high-productivity smart tool that ensures your data is right the first time.

FAQs

Do I still need to level the bubble when using the AP20?

No, the integrated tilt compensation allows you to capture points accurately with the pole at an angle, meaning you no longer need to keep the bubble centred for every shot.

How does the AP20 know when I have changed the pole height?

The AP20 features an internal sensor that tracks the position of the telescopic sections and transmits the exact height to your controller via Bluetooth in real-time.

Will the AP20 work with my existing Leica total station?

The AP20 is compatible with Leica automated total stations including the TS20, TS16, TS60, and MS60, provided they are running a compatible version of Leica Captivate software.

Is it possible to hire the Leica AP20 or have my unit serviced at PQS Survey?

Yes, we offer the AP20 for hire alongside our robotic total station kits and provide full technical support and maintenance through our UK service centres.

Does the Tilt Compensation work near metallic structures?

Yes, the system is based on inertial technology rather than a magnetic compass, meaning it is immune to interference from steelwork, vehicles, or power lines.

How much time can the AP20 save on a typical shift?

By eliminating the need to level the pole for every point and removing manual height checks, many users report productivity increases of up to 40-50 percent during setting-out.

What is the battery life of the AP20 module?

The exchangeable Li-Ion battery provides up to 6 hours of continuous use, and because it is the same battery used in other Leica accessories, swaps are quick and easy.

Can I use the AP20 with any prism?

The AP20 is designed to work with the Leica GRZ4 or GRZ122 360-degree prisms to ensure the TargetID and Tilt functions operate at peak performance.

Is the AP20 rugged enough for wet UK site conditions?

Yes, the unit is rated to IP67, ensuring it is completely dust-tight and waterproof, ready for the most demanding groundworks environments.

How does TargetID stop the laser from locking onto a different prism?

The AP20 module emits a specific signal that the total station recognizes, ensuring the instrument stays locked to your pole even if other surveyors are working nearby.
