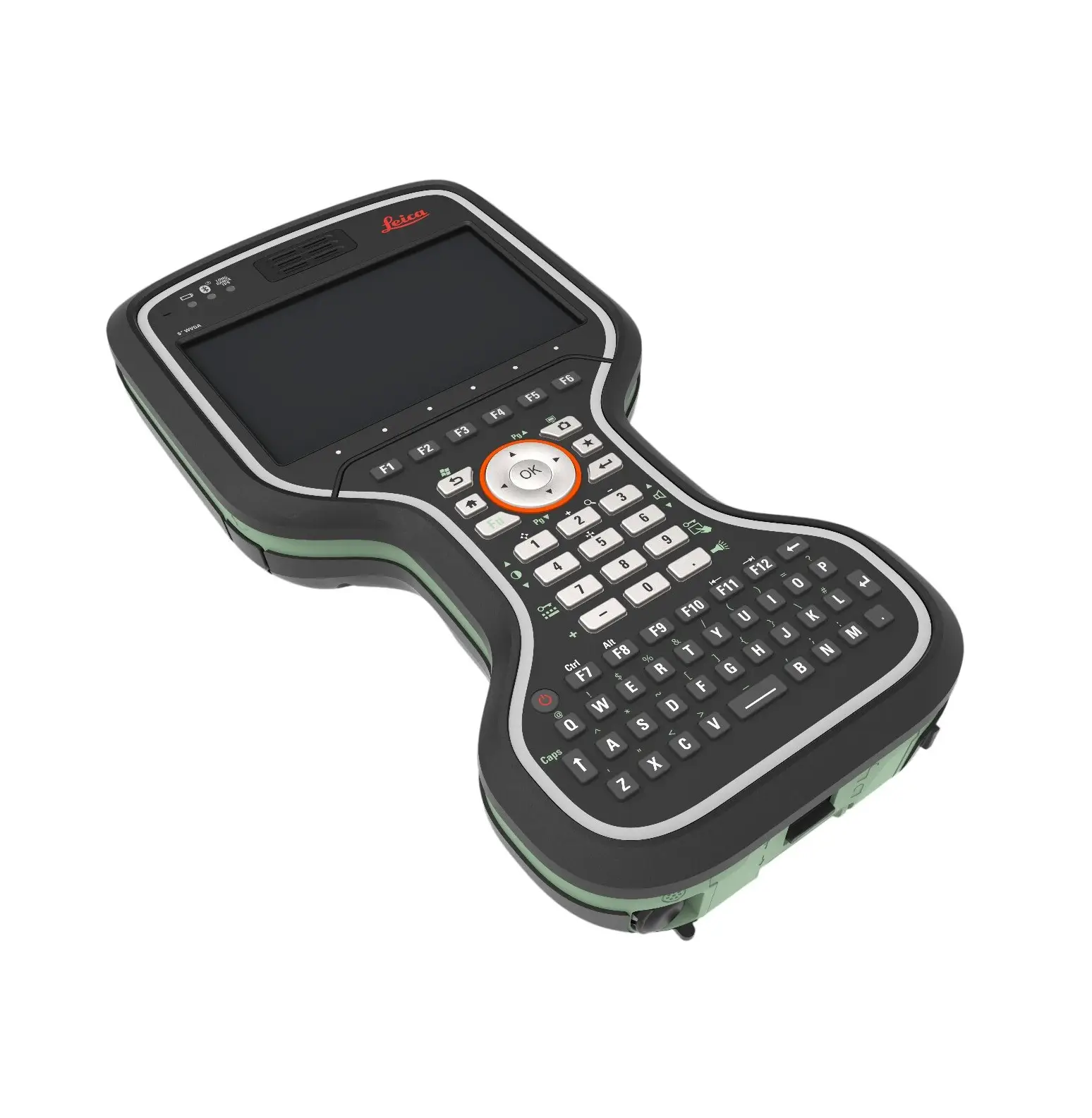

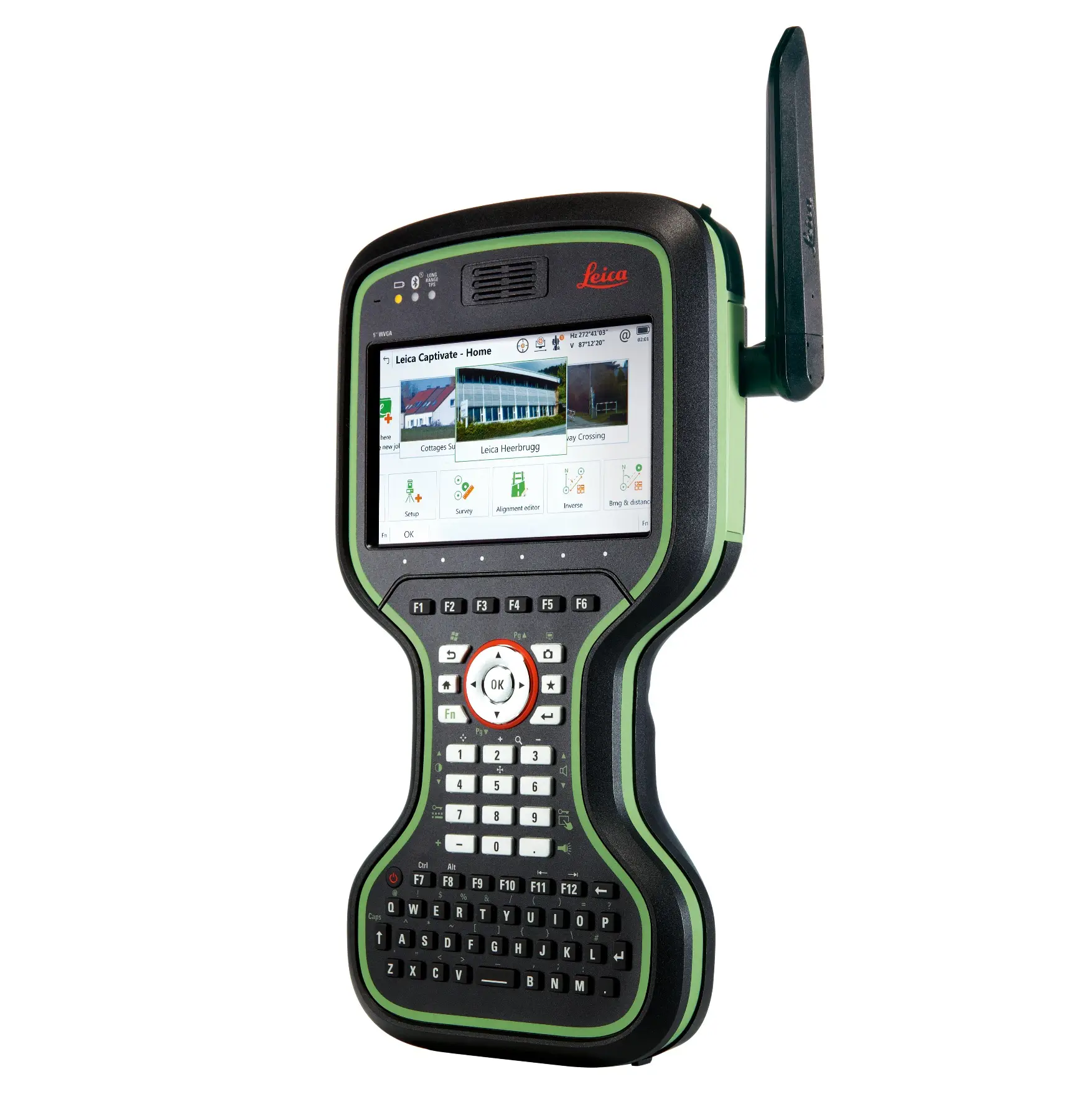

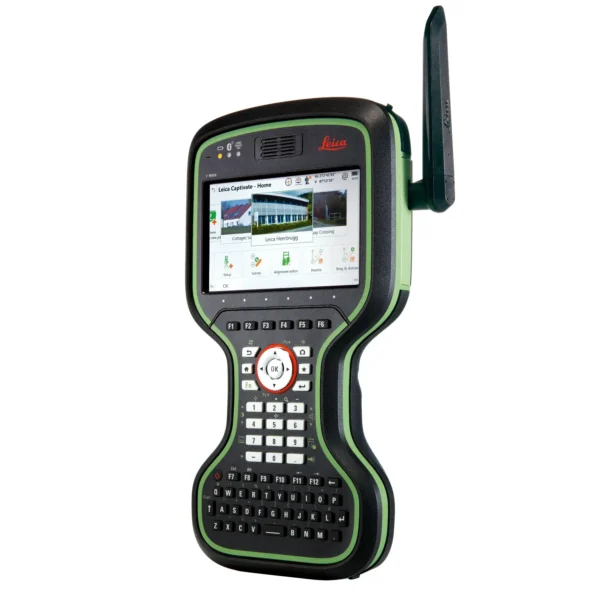

Leica CS20 Controller

The Leica CS20 is a rugged, high-performance field controller designed for ultimate control and convenience. Featuring a large 5-inch touchscreen and integrated 3D software, it provides surveyors with the power to manage complex data and immersive 3D models directly in the palm of their hand.

Leica Captivate Integration provides an immersive 3D software experience to manage complex datasets and visualize site models directly in the field.
Brilliant 5-Inch Touchscreen offers high-resolution clarity and sunlight readability with enough space to interact comfortably with maps and 3D linework.
Rugged IP68 Protection ensures the controller is completely waterproof and dust-tight for total reliability in extreme construction environments.
Advanced Connectivity features integrated long-range Bluetooth, 4G, and WLAN to provide a seamless data link between field instruments and the office.

ADD TO YOUR QUOTE

Enquire about hiring or buying this product. You’ll be contacted by one of our Sales Team.

Adding one of these to your enquiry?

Leica GS18T

Leica TS20

Leica TS16

Full Description

The Leica CS20 is more than just a data logger; it is the central hub for the modern surveying ecosystem. Engineered to survive the harshest UK site conditions, it features a robust design with an IP68 rating, ensuring it remains fully functional against heavy rain, mud, and dust. The controller is powered by the award-winning Leica Captivate software, which transforms complex spatial data into realistic, workable 3D models. This allows users to verify their work in real-time, reducing errors and ensuring that field data aligns perfectly with office designs. The CS20 is designed for maximum ergonomics, featuring a high-resolution 5-inch WVGA display that is easily readable in direct sunlight. With its integrated Disto for electronic distance measurement and a variety of connectivity options including long-range Bluetooth and 4G, the CS20 seamlessly links with your total stations and GNSS rovers. Whether you are performing high-precision stakeouts or detailed topographical mapping, the CS20 provides the speed and reliability needed to maintain peak productivity throughout the working day.

FAQs

What software does the Leica CS20 run?

The CS20 runs Leica Captivate, which is a powerful 3D field software used for data collection, stakeout, and complex engineering calculations.

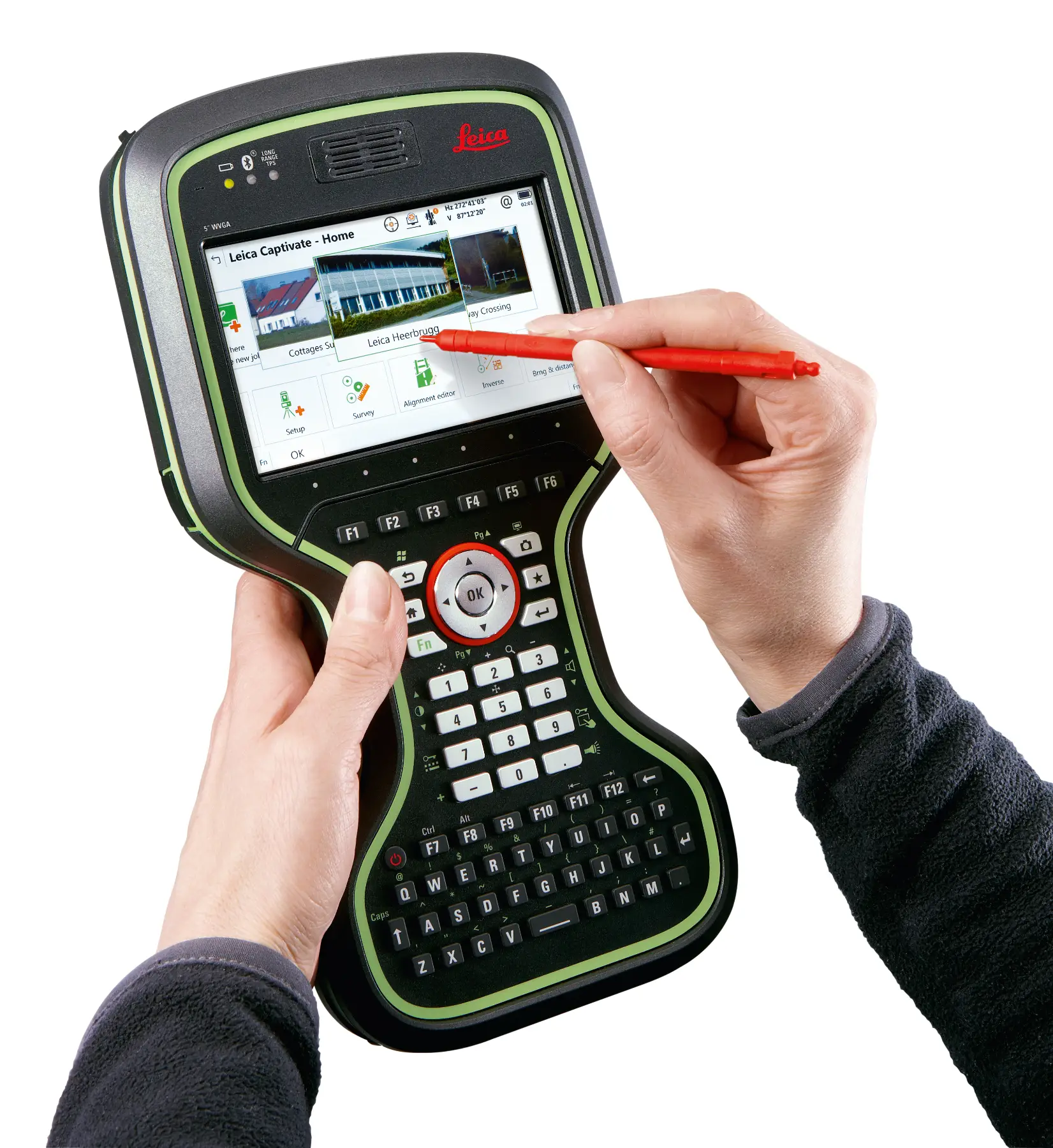

Is the screen easy to use in wet weather or while wearing gloves?

Yes, the 5-inch touchscreen is designed for the construction industry and remains fully responsive even in damp conditions or when the operator is wearing site gloves.

How durable is the CS20 for use on heavy civil engineering sites?

The unit is built to military standards and carries an IP68 rating, meaning it can withstand drops, heavy vibrations, and temporary submersion in water.

Can I hire the Leica CS20 or have my controller updated at PQS Survey?

Yes, the CS20 is available for hire as part of our robotic total station and GNSS kits, and our technical team provides full firmware updates and support services for your existing hardware.

Does the CS20 include a camera for site documentation?

Yes, it features an integrated 5-megapixel camera, allowing you to take georeferenced photographs of site features and link them directly to your survey data.

Can I use the CS20 with my older Leica total stations?

The CS20 is designed to work seamlessly with the Leica Viva and Nova ranges, including the TS16, TS60, and MS60, as well as GS series GNSS rovers.

What is the battery life for a standard field shift?

The CS20 uses a high-capacity rechargeable Li-Ion battery that typically provides up to 8 hours of continuous operation in the field.

How does the integrated Disto feature help me?

The integrated electronic distance measurement allows you to capture quick measurements and offset distances without needing a separate handheld device.

Is the controller compatible with 4G for cloud data transfer?

Yes, the CS20 includes an integrated 4G modem, enabling you to send and receive files from the office via Leica Exchange or other cloud services instantly.

Can I view 3D models like IFC files on the CS20?

Yes, the Leica Captivate software on the CS20 is highly capable of importing and displaying 3D models, including IFC files, for easier site verification and stakeout.
